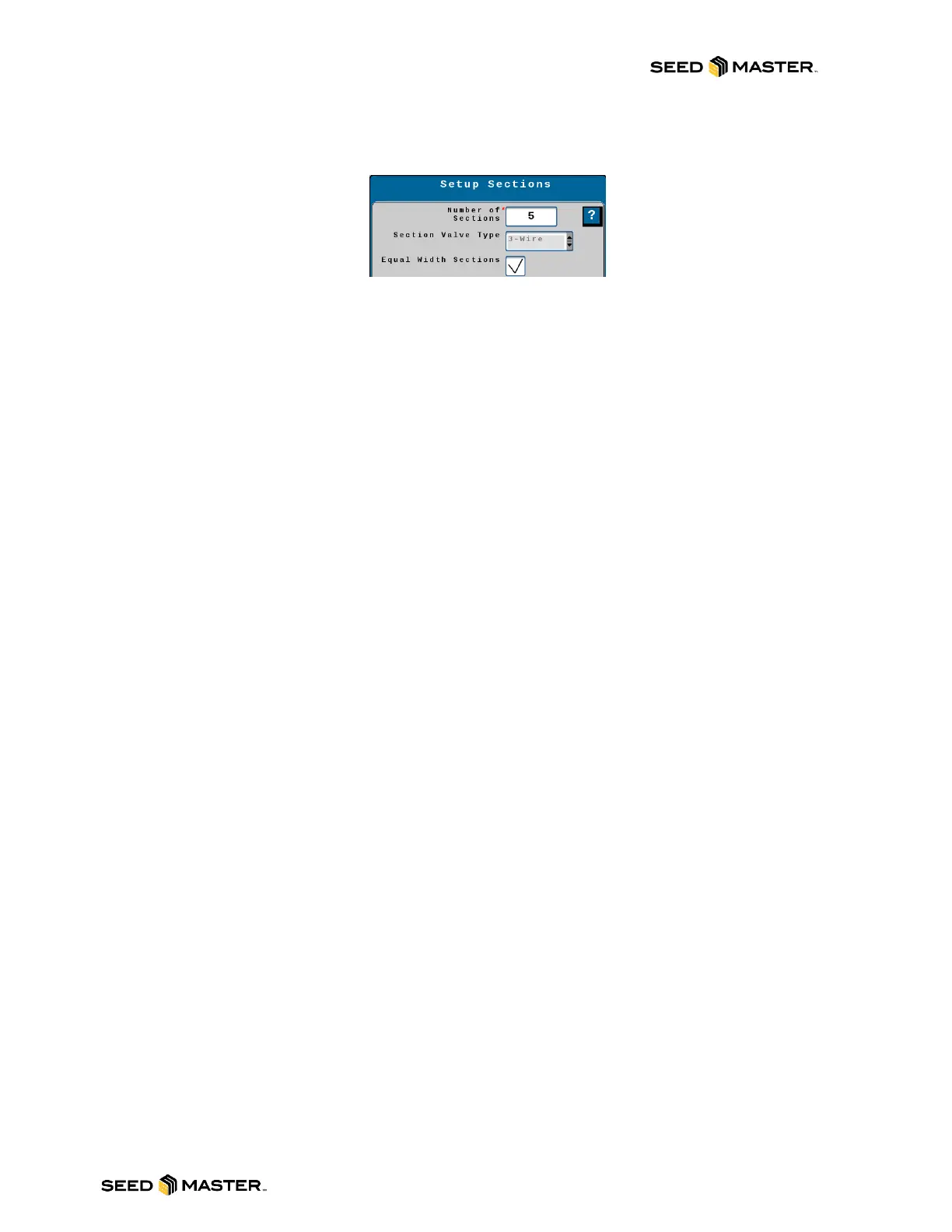

12. Enter the number of zones for the Number of Sections. The Section Valve Type is not available
for this application and will remain defaulted to 3-Wire. If the sections are equal width, leave the
check mark on for this setting. Touch next.
13. The section widths for each section will be displayed. Each section is X amount of feet. Review
and confirm. Touch next.
14. There are NO Auxiliary Drivers installed. Touch next.
15. Section Summary will display the products and sections and the assigned driver and switch
review. Touch next. Note: You may have two pages for the summary.
16. If you have Pressure Sensors installed for your system, choose the appropriate style from the
drop-down menu and touch next.
17. Select if you have an Agitator or Flow Return installed. There are NO height switches installed.
Touch next.
18. You will now setup the product control. There are 6 configuration pages. Touch next after every
page.
a. SETUP CONTROL VALVE PAGE
i. Control Type = PWM CLOSE (VERIFY YOUR VALVE TYPE AND CHOOSE
THE APPROPRIATE ONE)
ii. Valve Response Rate = 50
iii. Control Deadband = 2
iv. Valve Delay = 0
v. Enable PWM Smart Control = YES checkmark
b. SETUP PWM PAGE (SKIPPED IF PWM NOT CHOSEN)
i. Coil Frequency = 65
ii. PWM High Limit = 100
iii. PWM Low Limit = 1
iv. PWM Startup = 0.0
c. SETUP RATE SENSOR PAGE
i. Flowmeter Calibration = (Value located on your Flowmeter)
ii. Pulses / Units = 10 gal.
d. SETUP TANK / BIN PAGE
i. Tank Fill/Level Sensor (Choose if installed)
ii. Tank Capacity = (Enter your tank’s capacity)
iii. Current Tank Level = (Enter current volume if not empty)
iv. Low Tank Level = (Enter a volume if you want a warning)
v. Alarm = Check if a Low Level warning is desired
vi. Max Tank Fill PWM = 100%
e. SETUP RATES PAGE
i. Preset Rate Values: Rate 1 = 25, Rate 2 = 0, Rate 3 = 0
ii. Rate Bump = 1
iii. Rate Selection = Rate Bump or Rx
iv. Display Smoothing = YES checkmark
v. Decimal Shift = 1
f. SETUP ALARMS PAGE
i. Off Rate Alarm = 30 with checkmark
ii. Minimum Flow Rate = Enter your desired value
The setup for the liquid product is complete. Please review the setup summary page then touch next.
