6- 31
Installation Conditions and Method
6

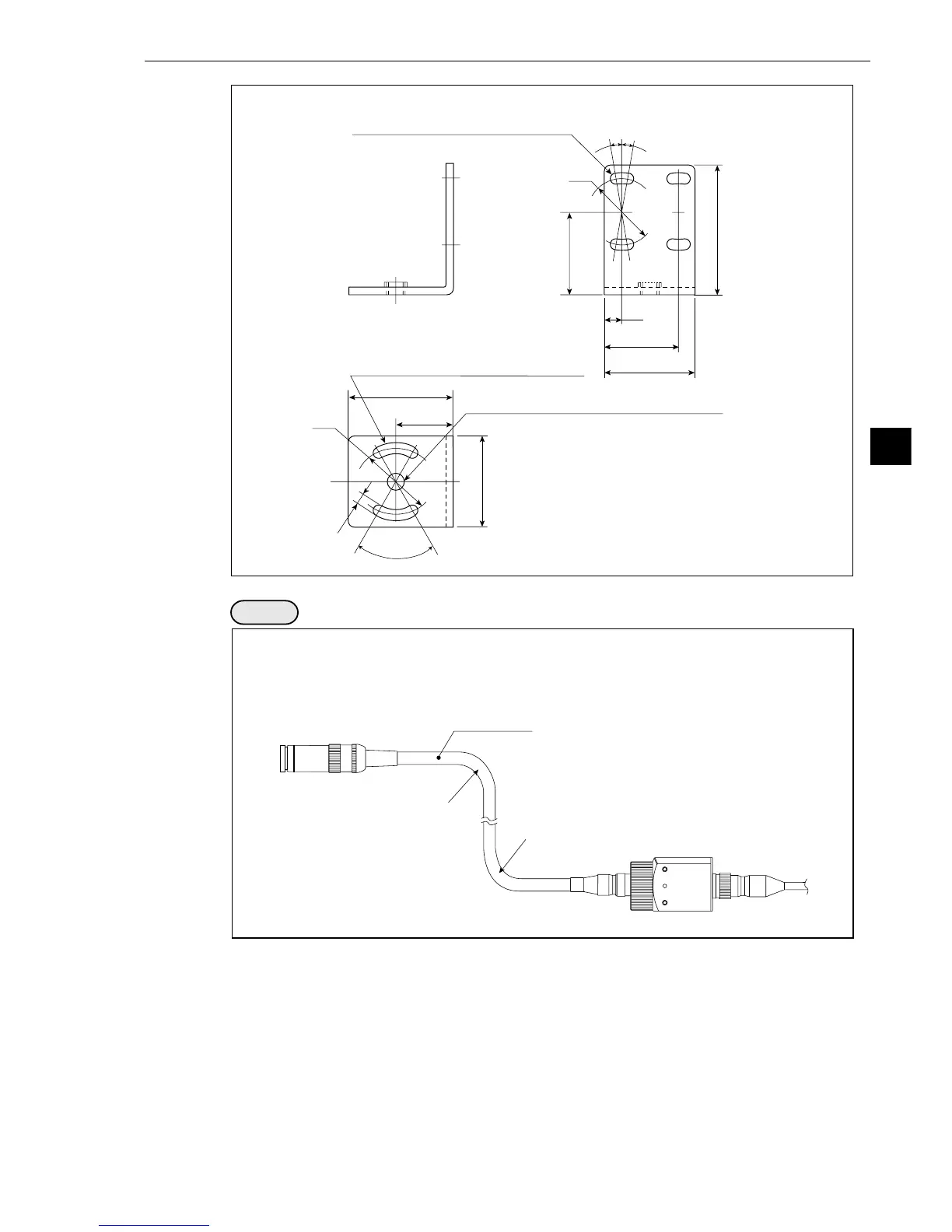

- External dimensions of camera angle bracket
- When the camera head cable is bent, its bending radius should be larger than 40 mm.
If the camera cable will be bent repeatedly during operation, design the cable layout so that
the bending radius is 75 mm or more and use components that can be flexed up to 2 million
times.
Note
28
22.5
5.5
39
31
17
10°10°
60°
20
20
3.2
28
25
1/4-20 UNC threaded hole
(for attachment to the mounting surface)
2 slotted holes 3.2 mm wide
(for attachment to the mounting surface)
4 slotted holes wide
(for securing on the camera body)
(Unit: mm)
*
*
Head cable
* Bending radius: Min. 40 mm
