6-30
Installation Conditions and Method
6
(3) Installation of the camera body
1 Attach the camera mounting bracket (comes with the IV-S30C2 to the three M3 tapped holes
(spacing: 20 mm) on the camera body using the M3×6 installation screws that come with the IV-
S30C2.
2 Secure the camera mounting bracket on the installation surface using a 3.2mm long, 20 mm
difference screw or a 1/4-20 UNC screw hole.

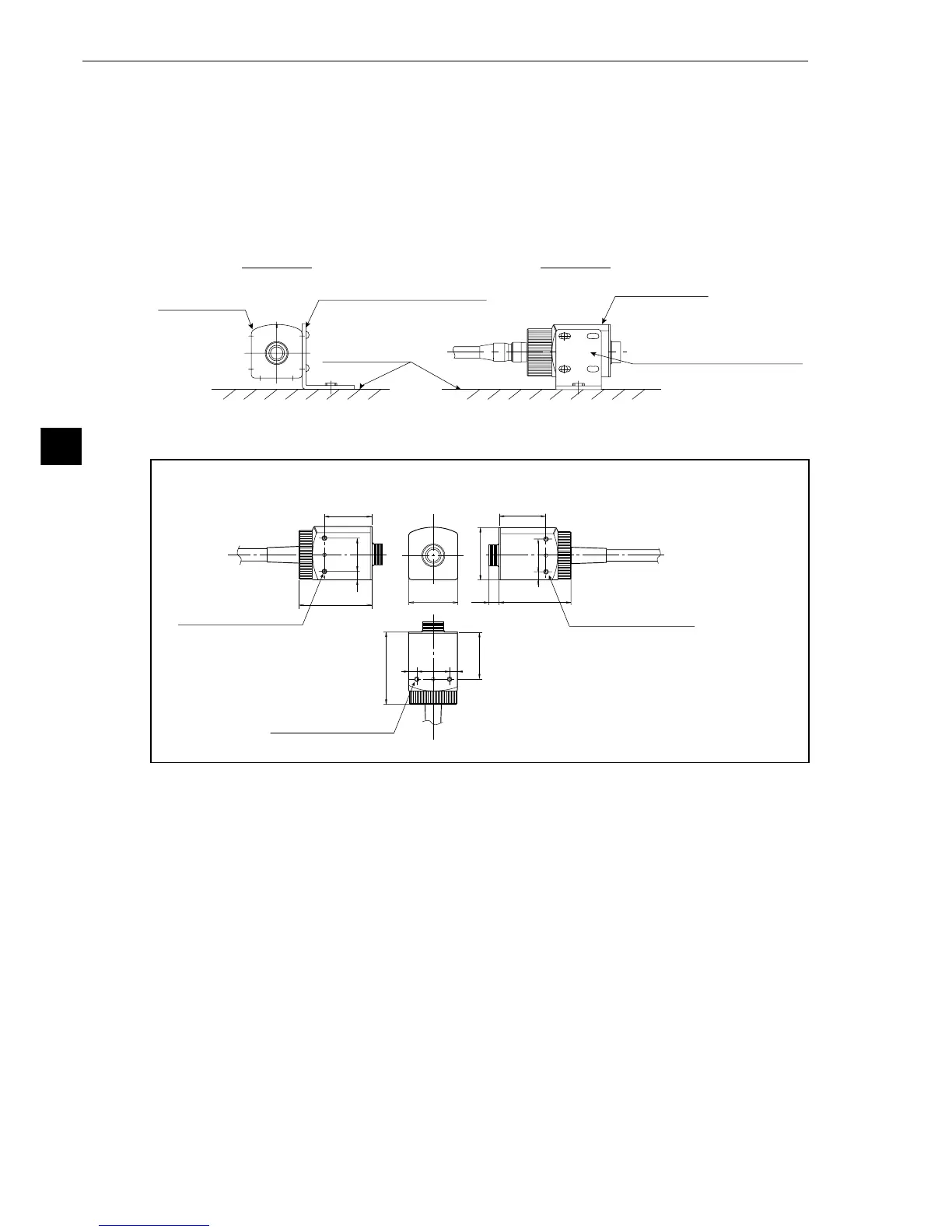

[Installation example]
- External dimensions of the camera (IV-S30C2)
(Unit: mm)
Installation
surface
Camera mounting bracket
(accessory)
Camera body
Camera mounting bracket
Camera body
Front view
Side view
44.7
28.5
*
205
*Attach the camera angle bracket to one of
the tapped M3 holes 20 mm mounting
pitch (3 places).
*
205
28.5
32
30
44.7
6.5
*
2055
28.5
44.7
2 M3 tapped holes
2 M3 tapped holes
2 M3 tapped holes
