9·52
Degree of match inspection
9
Reference image
Object to be measured
Continued from the previous page: When the BINRY-IMG-PROC (binary processing mode) is selected.

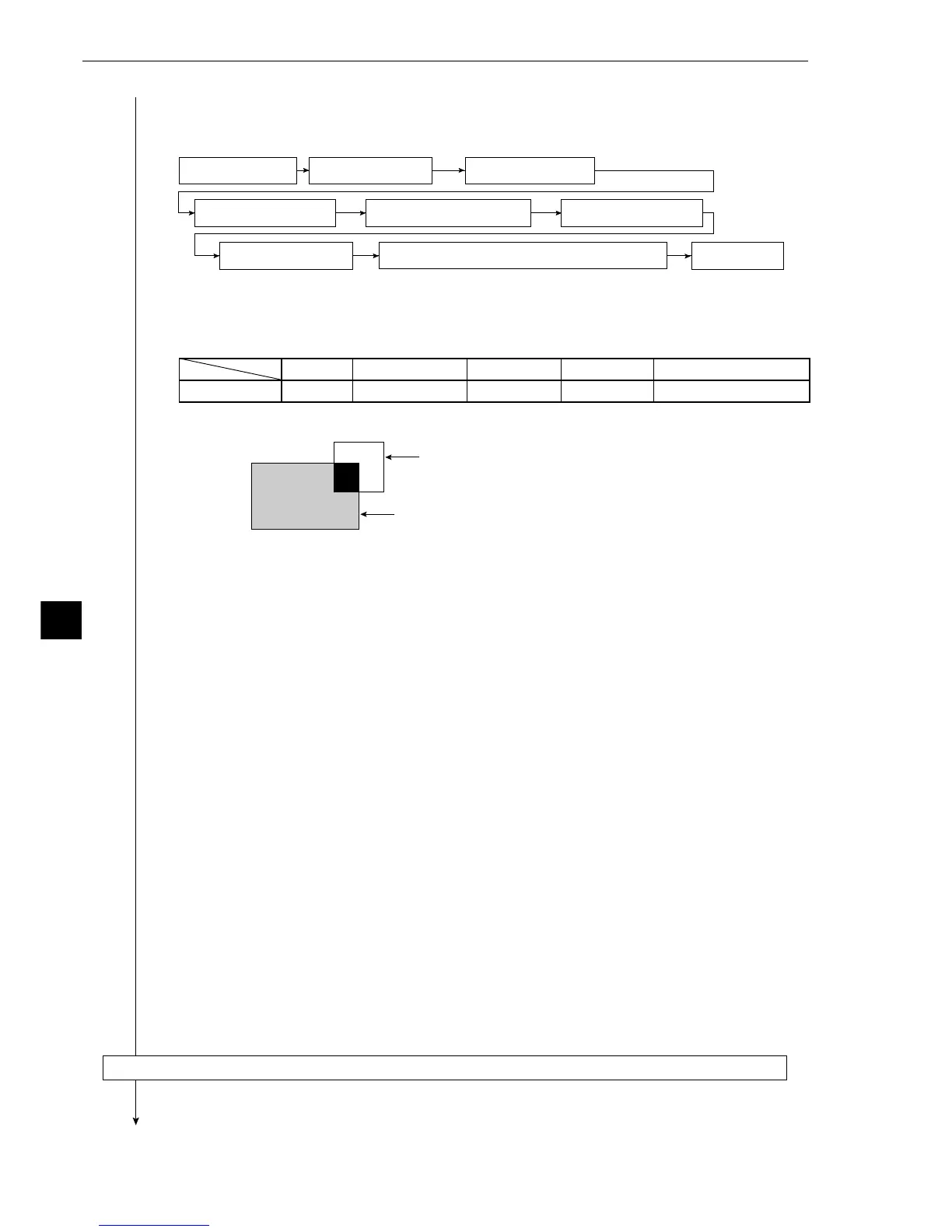

[Setting sequence for reference criteria]
- This is the sequence to follow when model 1 (object to be measured) is set to NO
[Information about the recording of a reference image]
In order to record a reference image it is necessary to use the freeze frame.
The specifications for a rectangular window are as follows.
[Example of recording]
Return to the [MEASURING COND] (measurement condition) menu and select item 6UPPER MENU.
Continued on the follwing page
1REFERENCE
3THRESHOLD VALUE
2
DETECTED COORD
(detection coordinates)
4INVERT B/W
(black and white inversion)
9BINARY PROCESS
(binary conversion process)
qBINARY NOIS FILTR
(eliminating binary noise)
wNUM. OF FILTR PASS (the number of cycles that the
binary noise elimination process is applied)
0IMAGE PRE-PROCESS
(image pre-processing)
e
UPPER MENU
Reference image
Line type
Solid line
Movement
Units of 4 pixels
Size
Units of 4 pixels
Minimum
32 x 32 (pixels)
Maximum
X x Y (X x Y=65536 pixels)
To Next Page
