Lead inspection
9
MSR-CHNG REG-CHNG PC-MONTR SET-SCRN MANL-TYP-CHG
X0~6
:
Y0~7
:
BUSY
:
F H C1ALLC2NO
VX.X
(TYPE00)
OK
MEAS. XXXXXXms
MEAS1 CAM1 INSPECT LEAD
REGST NO. 0(0~3)
X COORD 202.0 OK
Y COORD 281.0 OK
MATCH
＋
09957 OK
MEAS OBJ : 0-0(0~7)
NUMBER 005 OK
DISTANCE
040.0 OK
039.0
L-LEN 034.0 OK
032.0
Central coordinates of the reference
image and evaluation
Final evaluation result
Measuring time
Measurement number and
camera number
Registration number for the
measurement conditions
Degree of match with the reference
image and evaluation results
Number for the object to be
measured
Number of leads and evaluation
results
Lead pitch and evaluation results
Lead length and evaluation
(muximum/minimum in pixels)

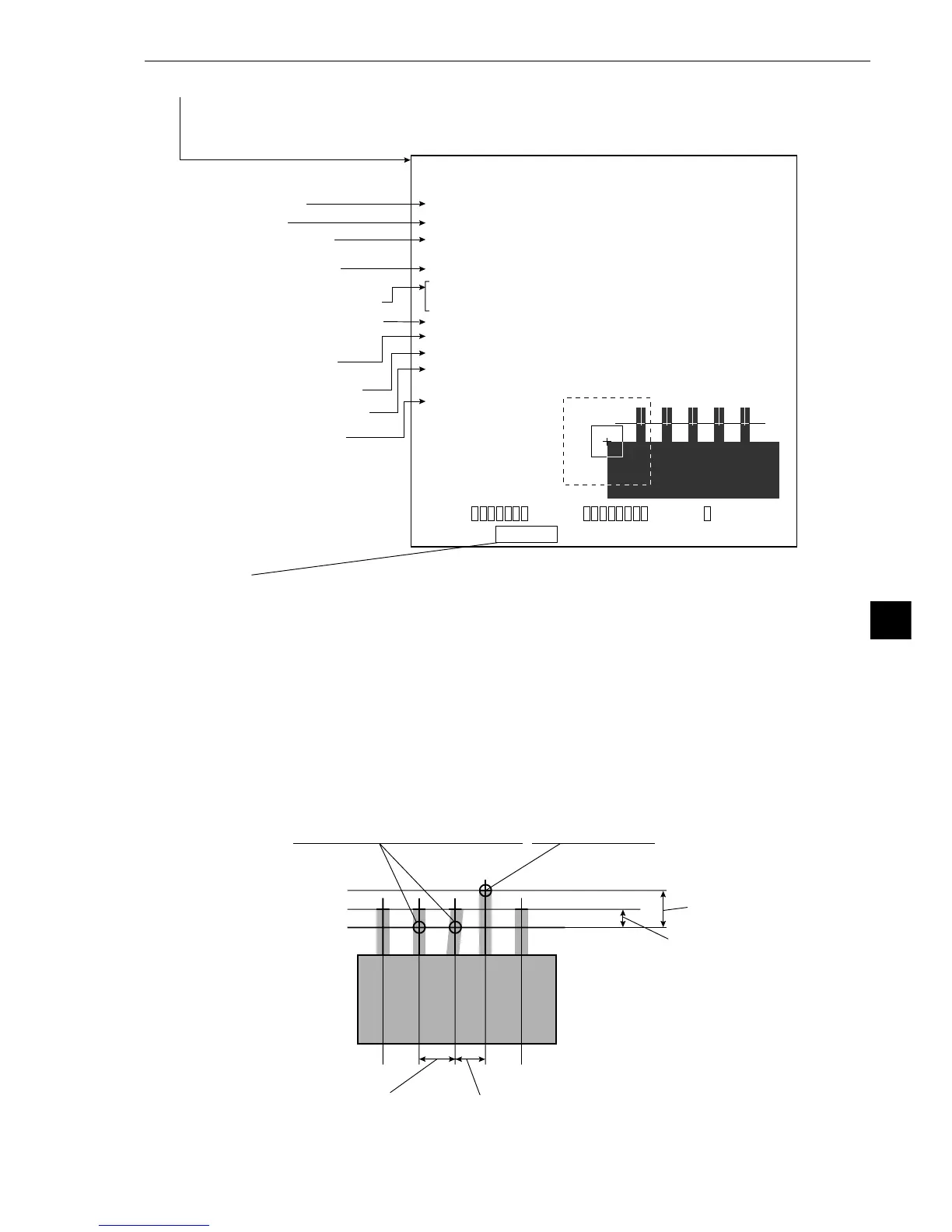

[Display of the inspection results]
· By moving the cursor to REG-CHNG (change registration) and pressing the up key, you can
see the inspection results corresponding to the registration number (the first number) and the
number of the object to be measured (the second number), then the results of the numerical
calculations. All of these may be scrolled through in this order: 0 (0-0→0-7) 1 (1-0→1-7) 2
(2-0→2-7) 3(3-0→3-7) N00 to N15. 0-0 is the number on display in the above illustration.
Pressing the down key in these situations will scroll backwards through the results.
· Unregistered numbers will be skipped.
· When there are no recorded numbers (other than those currently on the display ), or if no
measurement has actually been carried out, then it will not be possible to switch back and
forth between data.
· When a distance or a lead length results in an NG evaluation, the point in the image will be
marked with a circle.
Continued from the previous page
Pressing the TRG/BRT key will measure the distance and angle after manually measuring the
starting point.
Below is an example of the results displayed for a distance measurement.
Example of the display:
Distance between the center of
the leads NG (marked with a circle)
Lead length NG
(marked with a circle)
Shortest lead length
Longest lead length
Longest distance
between center points
Shortest distance
between center points
