Area measurement by binary conversion
9
Pressing the TRG/BRT key will display the size of the area inside the measurement window, in pixels.
· By moving the cursor to REG-CHNG (change registration) and pressing the up key, you can see the
measurement results for different registration numbers and numerical calculations. This is done by
scrolling through them in this order: registration numbers (00+0 15), numerical calculation result
(N00+0 N15), and then returns to registration numbers. The measurements screen also has this
feature.
· Unregistered numbers will be skipped.
· When there are no recorded numbers, other than those currently on display, or if no measurement
has actually been carried out, then it will not be possible to switch back and forth between data.
Continued from the previous page
F L C1ALLC2NO
VX.X
(TYPE00)
OK
MEAS. XXXXXXms
MEAS1 CAM1 MEAS-BIN-AREA
REGST NO. 00(0~15)
AREA 001884 OK
Final evaluation results
Measuring time
Measurement number, camera number
and measurement program title
Area (in pixels) and evaluation results
Registration number

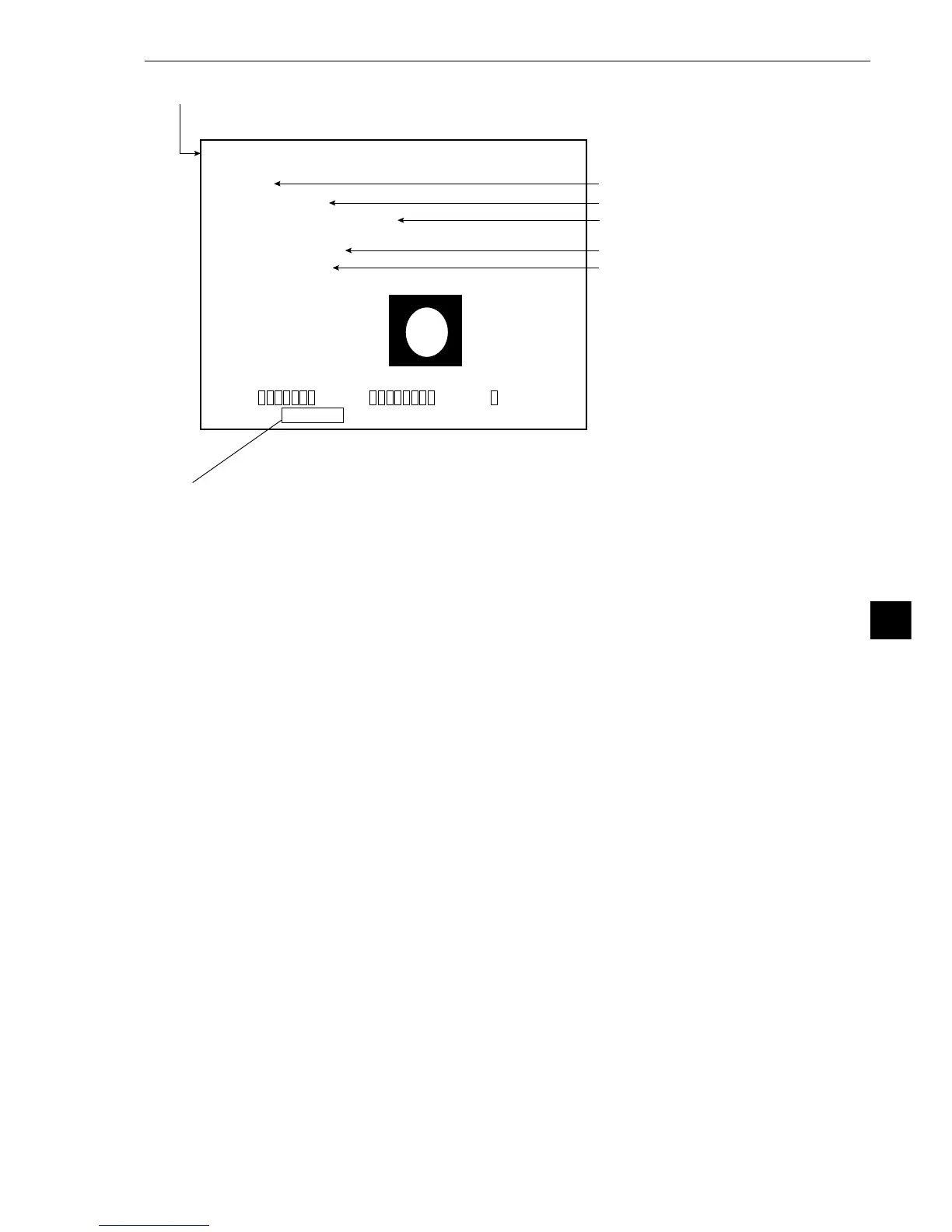

[Display of measured results]
MSR-CHNG REG-CHNG PC-MONTR SET-SCRN MANL-TYP-CHG
X0~6
:
Y0~7
:
BUSY
:
