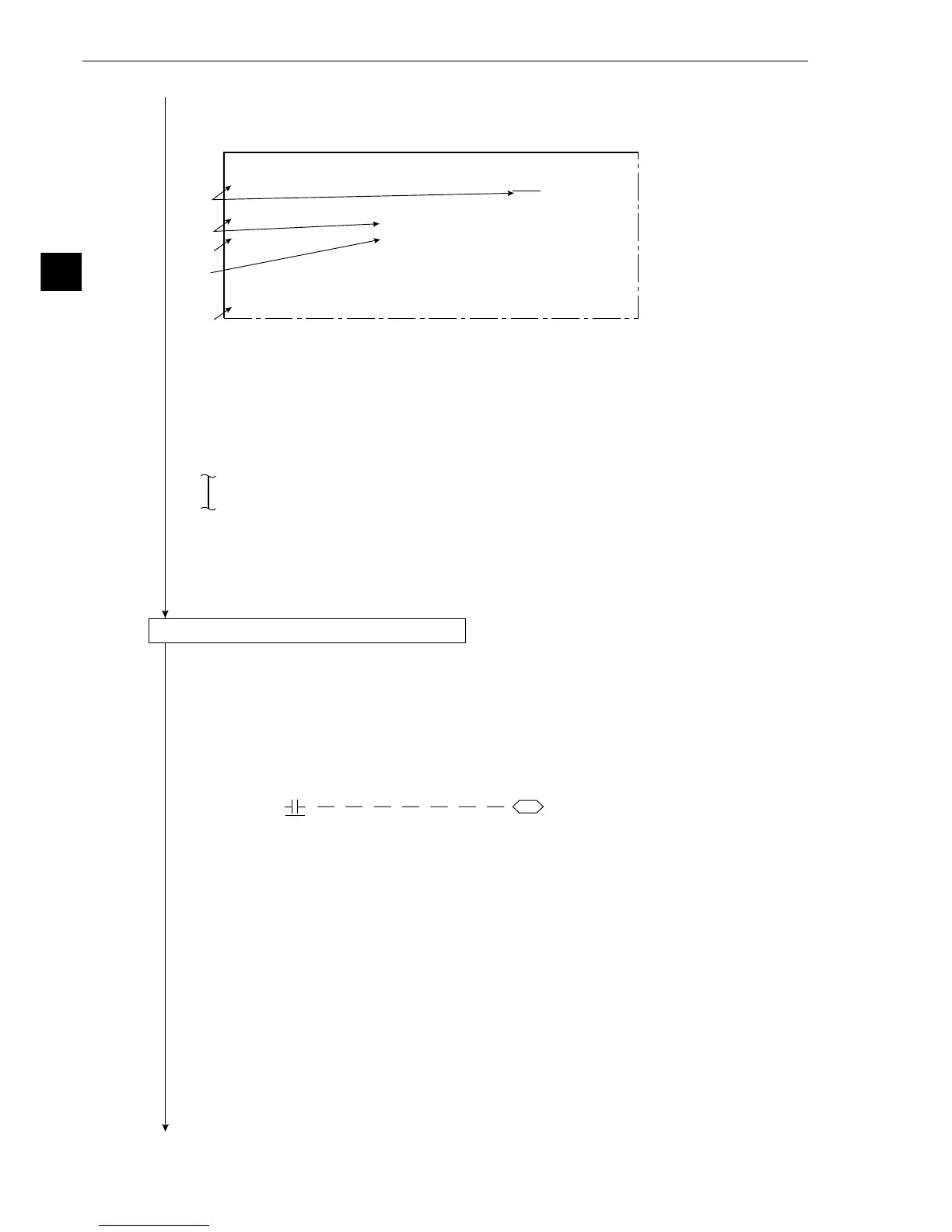

Operation Examples (Distance measurement)
[PAGE0]
INPUT0
LOGIC
C112
01234567OUT
Y00
3DISTANCE : 280.0~300.0.OPIXEL
Continued from the preceding page
8. Move the cursor to 1 OBJECT with the up and down keys, and press the SET key. Move the
cursor to DIST (display) with the left and right keys, and press the SET key.
9. Move the cursor to 2 REGST NO. (register number) with the up and down keys, and press
the SET key. Enter the number "00," and press the SET key.
10. Move the cursor to 3 DISTANCE (distance selection) with the up and down keys, and press
the SET key.
11. Move the cursor to the lower limit or upper limit, and press the SET key.
- Select the digits with the left and right keys, and enter the value 280.0 to 300.0 with the up
and down keys.
(Criteria for distance judgement: 280.0 to 300.0 pixels)
- After defining the lower and upper limits, press the SET key and ESC key.
12. Move the cursor to 7 UPPER MENU with the up and down keys, and press the SET key.
- The screen will return to the [TYPE00-MEAS1] (type: 00, measurement: 1) menu.
13. Press the ESC key.
- The screen will return to the [OBJECT TYPE COND] (conditions of object type) menu.
(11) Setting the final evaluation output condition
This setting is used to output the result of the final evaluation externally (see page 3-30).
- The final evaluation result is always output to the auxiliary relay C112. When the final
evaluation result is OK, C112 is ON, and when the result is NG, it is OFF. The result of final
evaluation can be externally output by using the auxiliary relay C112.
- The setting procedures are the same as described in item (9) in section 3-2 "Position
measurement."
Continued on the following page
9
12
10
11
8
[EVALUATION COND] (TYPE00-MEAS1-DST&ANGL MEAS)
1OBJECT
ST-PNT AUX-PNT DIST
ANGLE
2REGST NO.
00(0~15) DIST-BETWEEN-2PT
3DISTANCE
000.0~702.0.OPIXEL NO
6MAKE A TEST RUN
(SET KEY)
7UPPER
MENU
［OUT］
To Next Page
