Chapter 4: System Configuration
4-1 Basic system configuration
- The IV-S20 series includes the IV-S20, IV-S20N, IV-S20M, IV-S20C1, IV-S30C1/C2, IV-S20L16,
and IV-S20EC2/EC4. Configurations varies with each model (see the following page). Place your
order according to your system configuration.
Ex.: When two cameras are connected (the IV-S20L16 lense is used), 1 set each of the IV-S20,
IV-S20C1 and IV-S20L16 are needed.
- Up to two cameras can be connected to the IV-S20 main housing (camera 1 and camera 2).
However, it is possible to connect only one camera. In this case, the camera must be connected
in the camera 1 position.

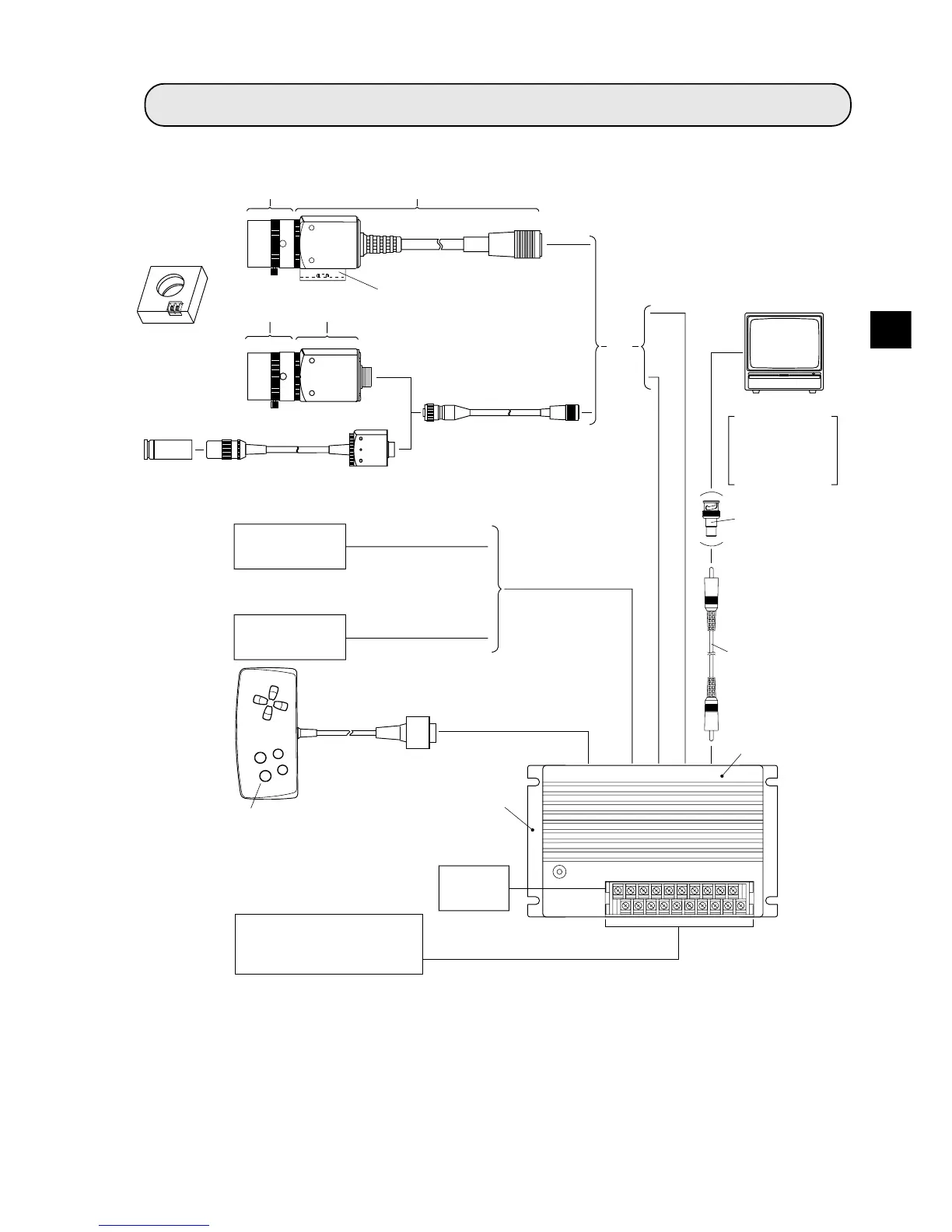

- The numbers in circles correspond to the component numbers shown on the following page.
2 IV-S20C1
camera body
5 Camera angle bracket
8 Housing bracket
1 IV-S20L16
camera lens
3 Remote key pad
4 IV-S20 main
housing
6 Conversion
connector
Personal
computer
Monitor
Power
supply
(24 VDC)
Programmable
controller
General purpose
serial I/F
Computer link
- Programmable controller
- Limit switch
- Warning lamp, etc.
Parallel I/F
Input/output
7 Monitor cable
(2 m long)
With either an
EIA or NTSC
compatible
video input ter-
minals
IV-09MT, IV-10MT etc.
*2 Parameter setting support software IV-S30SP
can be used by IBM PC/AT.
Lens
(commercially
available)
0 IV-S30C2 micro camera
9 IV-S30C1 camera
*1
*1 The cable length can be extended using
the IV-S20EC2 (2 m) or IV-S20EC4 (4 m).
*2
q IV-S20HC3 camera
conversion cable
IV-60LD
LED lighting
equipment
1
