3-49
3
Operation Examples (Numeric calculation)

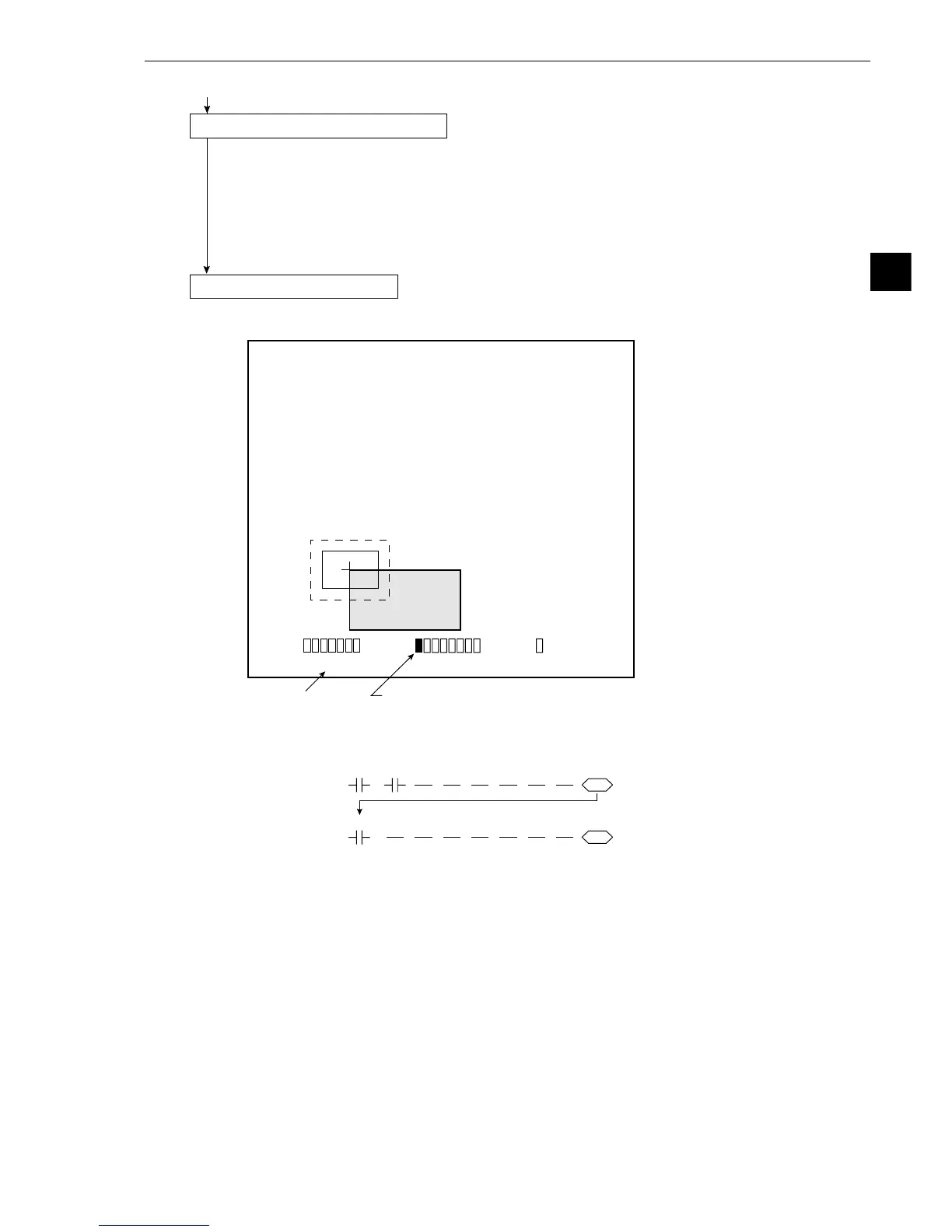

If the difference between X/Y coordinates is within the range set on
the numeric calculation menu, Y0 will be turned ON, and a filled
box
■
will be displayed. If the difference is not within the range, Y0
is turned OFF, and an empty box
■
will be displayed.
Y00
C000
Final output condition
C000
00N00 00N01
Output condition
· If the result is within the range,
00N00 and 00N01 are turned
ON (OK), the auxiliary relay
C000 will be turned ON, and
output Y00 will be turned ON.
(TYPE00)
OK
MEAS. XXXXXXms
MEAS1 CAM1 DEG OF MATCH
REGST NO. 00(0~15)
MATCH (MDL 0) +09735 OK
X COORD. (MDL 0) X=090.0 OK
Y COORD. (MDL 0) Y=092.0 OK
LIGT LVL (MDL 0) 018.4 OK
F L C1ALLC2NO
VX.X
MSR-CHNG REG-CHNG PC-MONTR SET-SCRN MANL-TYP-CHG
X0~6
:
Y0~7
:
BUSY
:
*
Continued from the preceding page
(5) Returning to the MAIN OPS MENU
1. Press the ESC key.
- The [SYSTEM SETUP] menu will be displayed.
2. Move the cursor to 9 SAVE IN FLASH MEM (save data in flash memory) or 0
OPERATIONS with the up and down keys, and press the SET key. Press the SET key once
more.
- The set data will be saved in the IV-S20 flash memory, and the screen will return to the
MAIN OPS MENU.
(6) Degree of match inspection
Press the TRG/BRT key, and the difference in the X-Y coordinates of the detection points in images
1 and 2 will be calculated. The results will be evaluated and output.
* Move the cursor to REG-CHNG (registration change), and press the up or down key. Then,
the results of the numeric calculation will be displayed.
To Next Page
