Shihlin electric SDE-100A2 User Manual

33

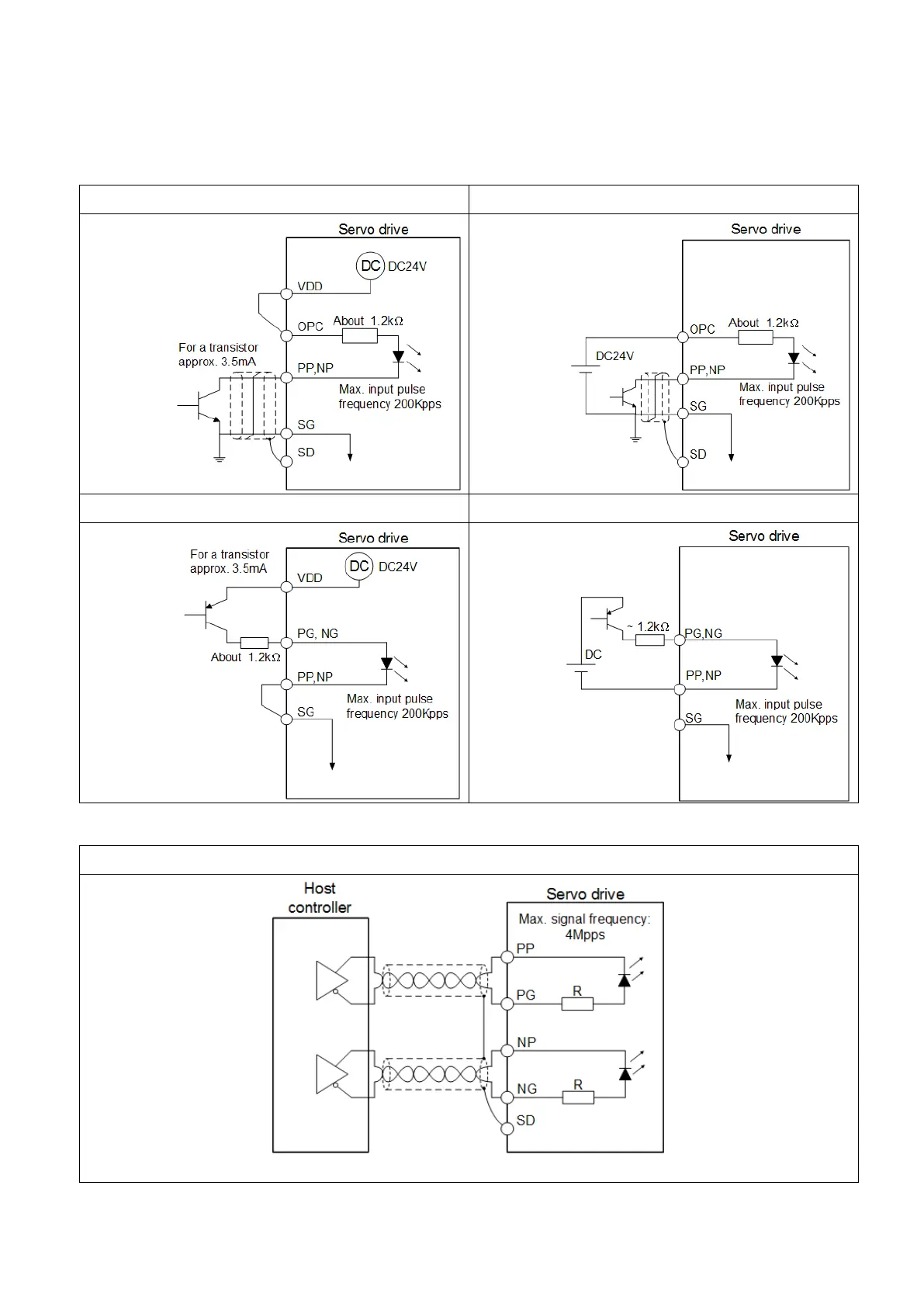

(6). Forward/reverse rotation pulse train input
Input a pulse train signal in open collector or differential line drive type. The maximum input pulse
frequency is 4Mpps for differential line drive and 200kpps for open collector type.
Inner power supply for sink mode
External power supply for sink mode
Inner power supply for source mode
External power supply for source mode
Differential line driver
1.2KΩ
~2K
Ω
is
recommended.
*A resistor in series is necessary.
*A resistor in series is necessary.
DC 24V:1.2KΩ~2KΩ
DC 12V:510Ω~820Ω
DC 5V:120Ω~200Ω
