Shihlin electric SDE-100A2 User Manual

88
No
Abbr.
Function description
Control
mode
Setting
range
Unit
PA43
ENB
Encoder resolution
This is a read-only parameter.
Pt, Pr
S,T
-
-
PA44
EGM
Electronic gear ratio mode
0：normal, ratio=PA06/PA07
1：ratio conversion 1, ratio= encoder resolution/PA45
2：ratio conversion 2, ratio= 2 x PA06/PA07, it is suitable for 22bit
to 23bit conversion

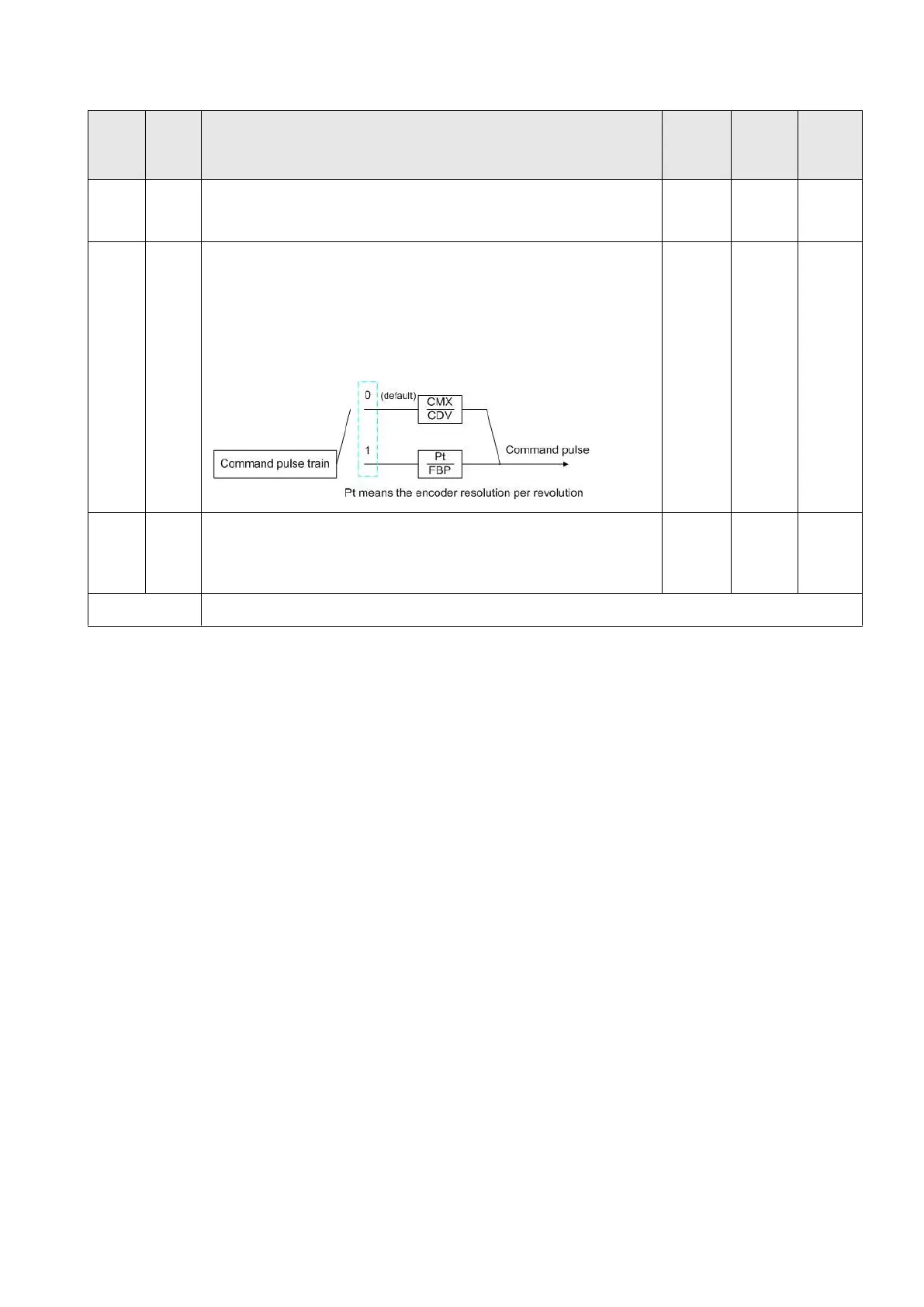

Here is a explanation diagram：
Pt, Pr
0
~1
-
PA45
FBP
Position command pulse per revolution
Used to set the position command pulse number per revolution
when the PA44 is set as 1.
Pt, Pr
10
3
~10
6
pulse
PA46~PA50
Reserved
