87

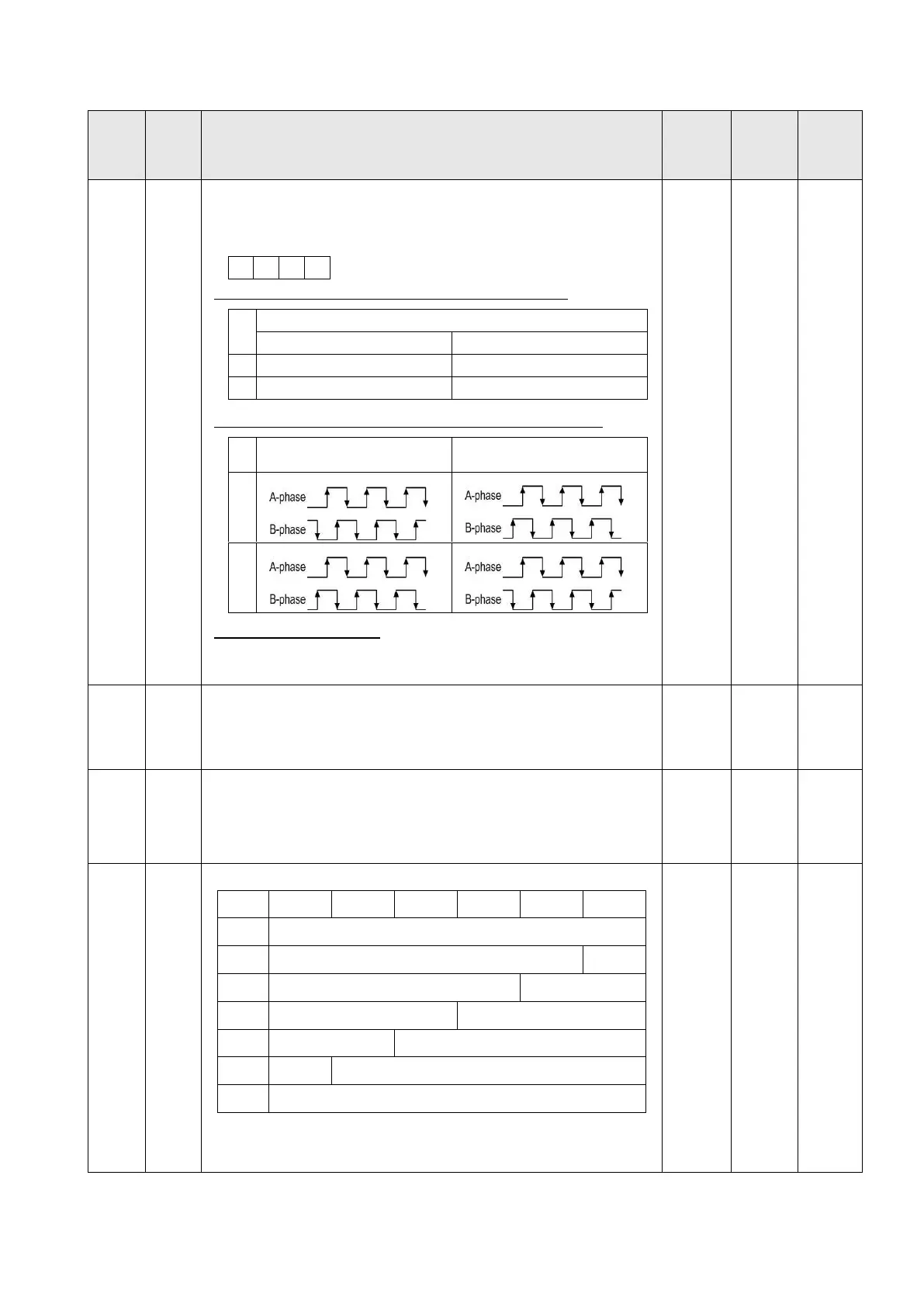

Motor rotary direction option
The relation among motor rotary direction and input command
pulse-train direction and encoder output pulse direction is
described below.
x：input pulse-train and motor rotary direction option
forward pulse-train input
reverse pulse-train input
y：motor rotary direction and encoder pulse output option
z：encoder output option
0：output pulse
1：output division ratio
Special parameter write-enable
As this parameter is set as 0088h, the drive would take 2
seconds to recover factory-set. This change is valid by power
off once and power on again.
Max. speed output setting of encoder
According the actual application, users can set this PA41 to
optimize the encoder outputs (LA, LB). If this setting value is
exceeded during the motor running, the AL30 will occur. “0” is
to disable this function.
Parameter read/write inhibit option
X, but PA42 is excepted it is writable.
◎: R/W enable, ○: R enable W inhibit, X: R/W inhibit
Note: When the parameter group is assigned to R/W inhibit, it
mean that the display will not show.
