OPERATING INSTRUCTIONS | Bulkscan LMS511 8014829/ZNC5/2017-06-06 | SICK
Subject to change without notice
32
MOUNTING
 Mount mounting kit 1 on the mounting surface.
 Mount the Bulkscan on mounting kit 1.
During mounting, observe the dimensional drawings (see "11.3.2 Dimensional draw-
ings mounting kits“ on page 72).

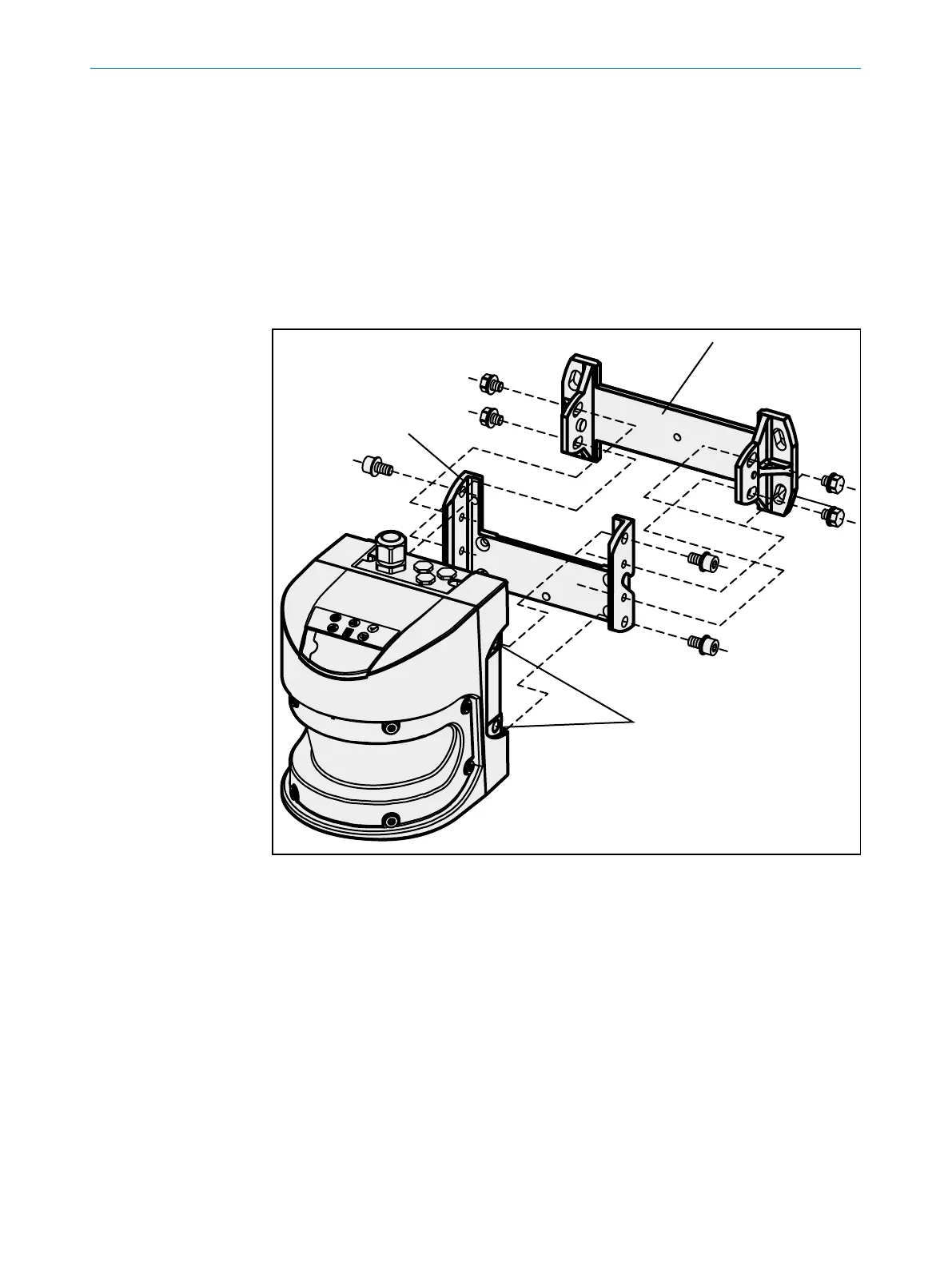

5.3.3 Mounting with mounting kit 2
You can use mounting kit 2 (only in conjunction with mounting kit 1) to align the Bulk-
scan in two planes. The maximum adjustment angle is ±11° in both planes..
Mounting kit 2
Mounting kit 1
Fixing screws
M8 x 9 threaded holes
Fig. 12: Mounting with mounting kit 1 and 2
 Mount mounting kit 2 on the mounting surface.
 Then mount mounting kit 1 on mounting kit 2.
 Mount the Bulkscan on mounting kit 1.
 Adjust the Bulkscan longitudinally and crosswise.
During mounting, observe the dimensional drawings (see "11.3.2 Dimensional draw-
ings mounting kits“ on page 72).
Note
Note
5.3.4 Mounting with mounting kit 3
You can use mounting kit 3 (only in conjunction with mounting kit 1 and 2) to mount the
Bulkscan so that the scan plane is parallel to the mounting surface. This enables stable
wall or ceiling mounting or ensures that mounting kit 2 remains precisely adjustable
crosswise on uneven surfaces.
Mounting kit 2
Mounting kit 3
Mounting kit 1
Fixing screws
M8 x 9 threaded holes
Fig. 13: Mounting with mounting kit 1, 2, and 3
 Mount mounting kit 3 on the mounting surface.
 Then mount mounting kit 2 on mounting kit 3.
 Then mount mounting kit 1 on mounting kit 2.
 Mount the Bulkscan on mounting kit 1.
 Adjust the Bulkscan longitudinally and crosswise
During mounting, observe the dimensional drawings ((see "11.3.2 Dimensional draw-
ings mounting kits“ on page 72).
Note
