MOUNTING
5.3.5 Mounting with mounting bracket on existing mounting kit LMS2xx
With the aid of the mounting bracket, you can mount the Bulkscan on an existing
LMS2xx mounting kit as a replacement sensor for a Bulkscan LMS211/LMS221.
LMS2xx mounting kit
(part no. 2018303)
Mounting bracket (part no. 2059271)

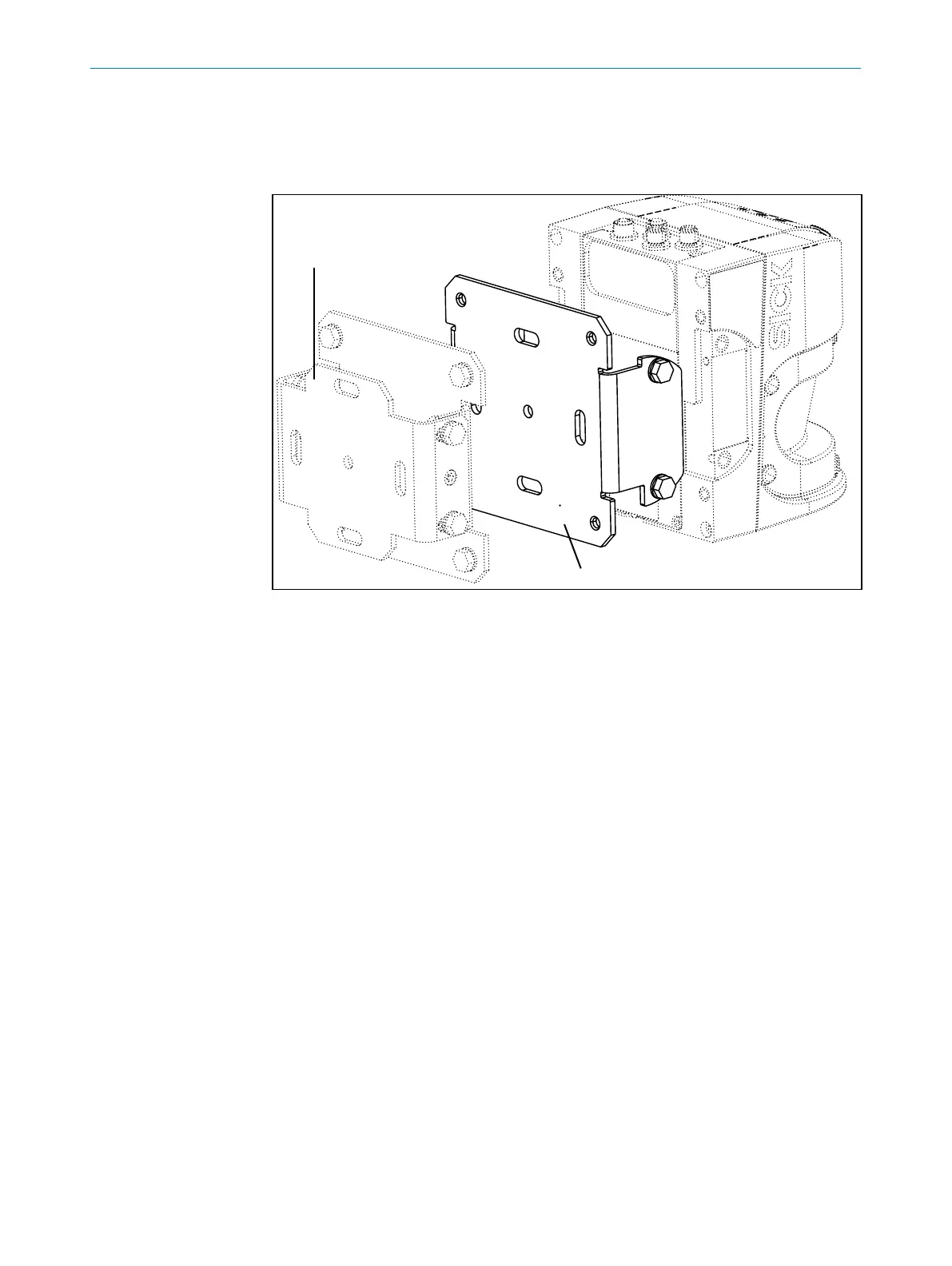

Fig. 14: Mounting with mounting bracket on an existing mounting kit LMS2xx
 Mount the mounting bracket on the existing mounting kit.
 Mount the Bulkscan on the mounting bracket.
During mounting, observe the dimensional drawings (see "11.3.3 Dimensional drawing
mounting bracket for existing LMS2xx mounting kit“ on page 75).
Note
