COMMISSIONING
on metal surfaces can reduce the resolution of the bulk contour. This can reduce the
measurement accuracy.
You can improve this behavior by activating Optimization for outdoor applications. The
Bulkscan rejects invalid measurement points and replaces these with measurement
points which have been calculated from valid neighboring areas

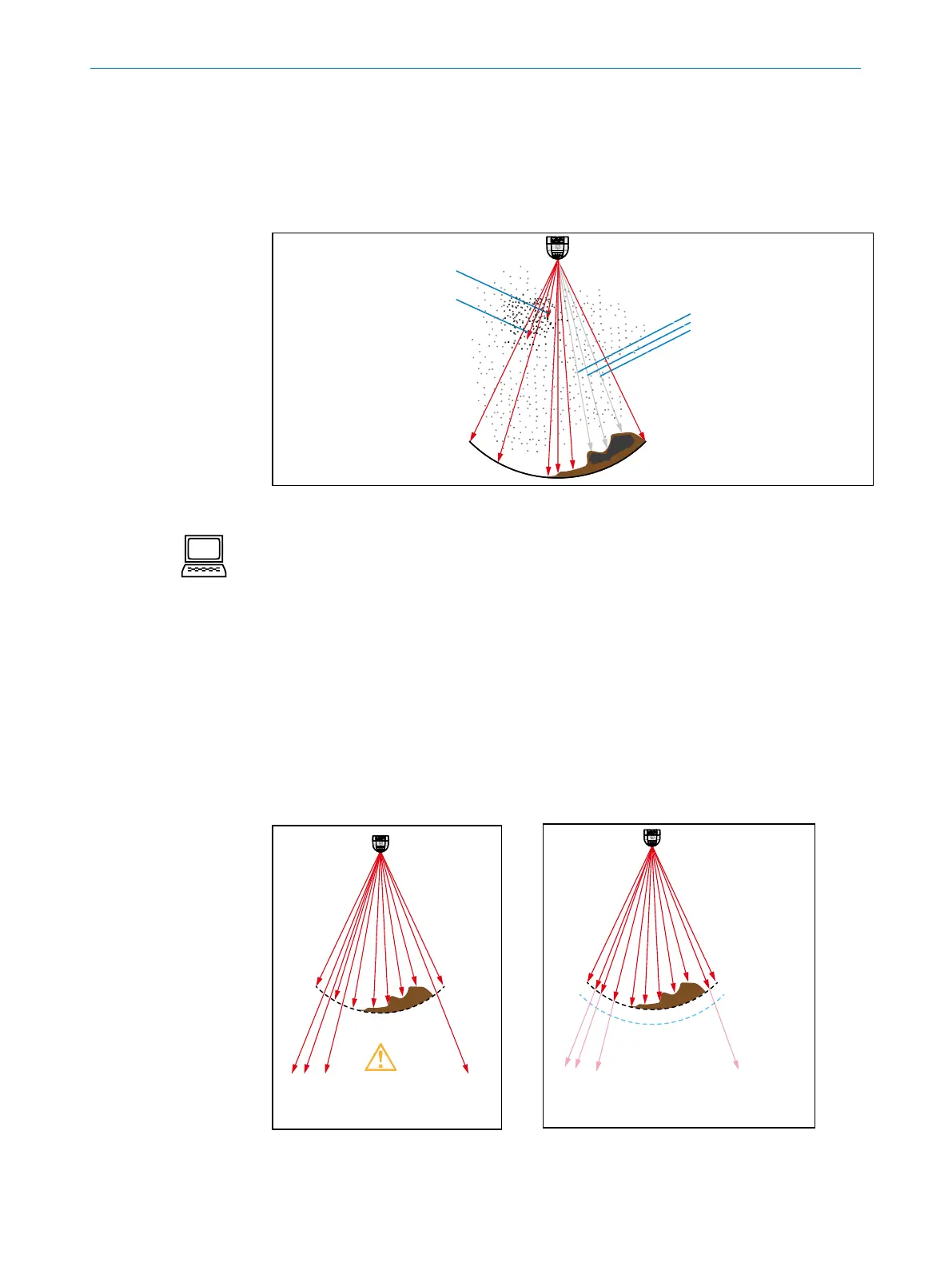

Fig. 36: Optimization for outdoor applications
How to congure Optimization for outdoor applications:
 Switch to the System tab.
 Activate the Optimization for outdoor applications checkbox.
8.3.4 Ignore measurement points below the reference contour
Some belts may have slits or gaps, which may cause measurement points below the
reference contour to be measured, leading to incorrect measurement of the throughput.
The Ignore measurement points below the reference contour function allows you to
correct these incorrect measurement points.
Itispossibletocongureadetectionthresholdwhichensuresthatvaluesbelowthis
threshold are automatically mapped to the reference contour. A value range of between
0 mm and 10 m can be set.
Measurement points below the reference
contour are marked as invalid. The warning
message is displayed.
Fig. 37: Ignore measurement points below the reference contour
Measurement
points blocked by
particles
Measurement points
missingduetoreec-
tions or dazzle
Invalid measurement points are corrected
and mapped to the reference contour. No
warning message is displayed.
Threshold
