MOUNTING
5.3.6 Mounting with mounting bracket and mast bracket
With the aid of the mounting bracket in conjunction with the mast bracket, you can
mount and radially align the Bulkscan on round posts.
Mast bracket (part no. 2018304)
Mounting bracket (part no. 2059271)

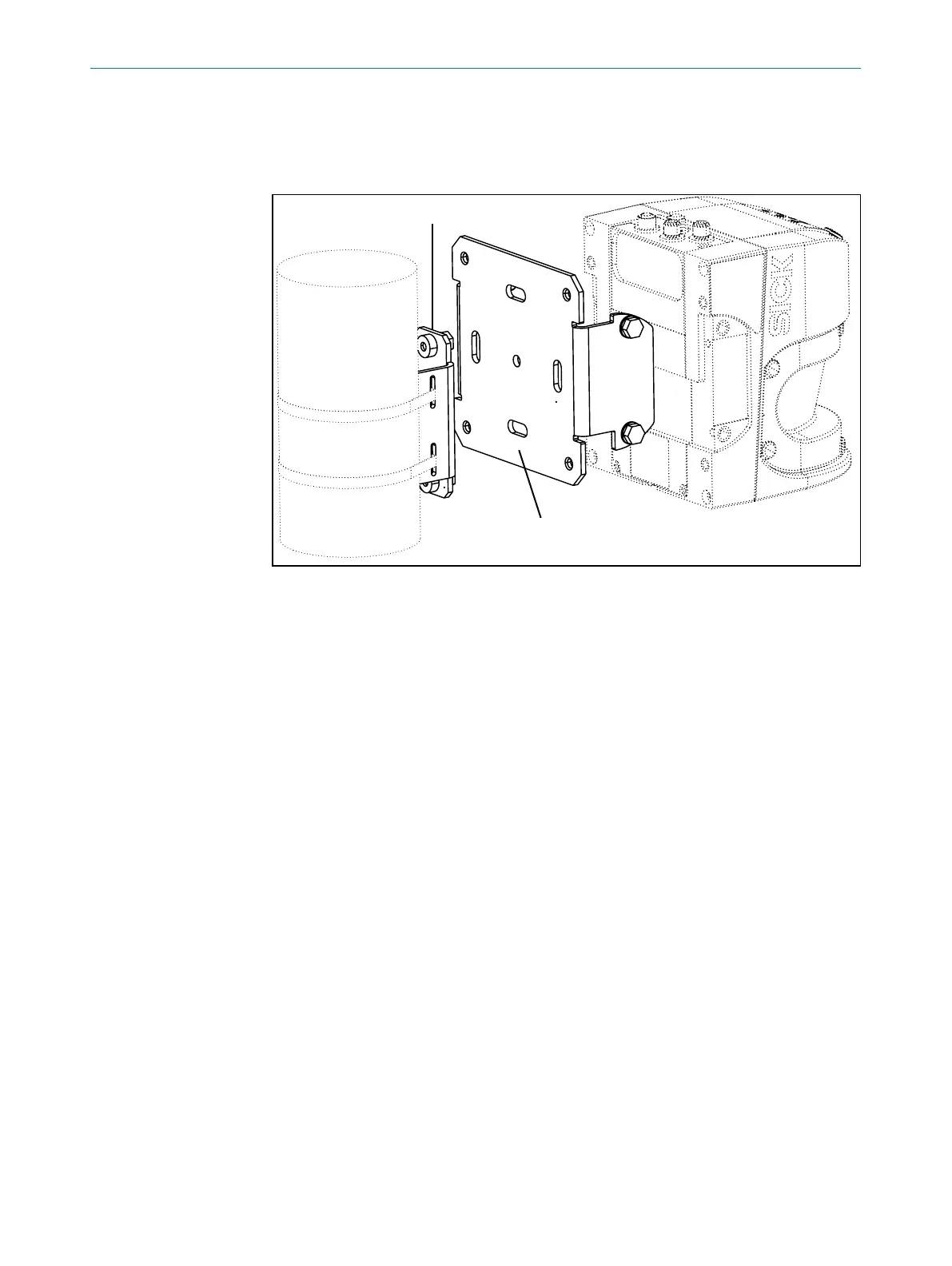

Fig. 15: Mounting with mounting bracket and mast bracket
 Mount the mast bracket hand-tight on the round post.
 Mount the mounting bracket on the mast bracket.
 Mount the Bulkscan on the mounting bracket.
 Align the Bulkscan radially.
 Fix the mast bracket.
 Check the alignment of the Bulkscan and correct, if necessary.
During mounting, observe the dimensional drawings (see "11.3.4 Dimensional drawing
mounting bracket with mast bracket“ on page 76).
5.4 Removing the sensor
 Switch the supply voltage off.
 Remove the connection cables.
 Unscrew the mounting screws for the Bulkscan on the mounting bracket and remove
the sensor.
Onnaldecommissioning,pleaseobservetherequirementsforenvironmentallycorrect
disposal(see"2.5.2Disposalafternaldecommissioning“onpage12).
