OPERATING INSTRUCTIONS| Bulkscan LMS5118014829/ZNC5/2017-06-06| SICK
Subject to change without notice
75
TECHNICAL DATA

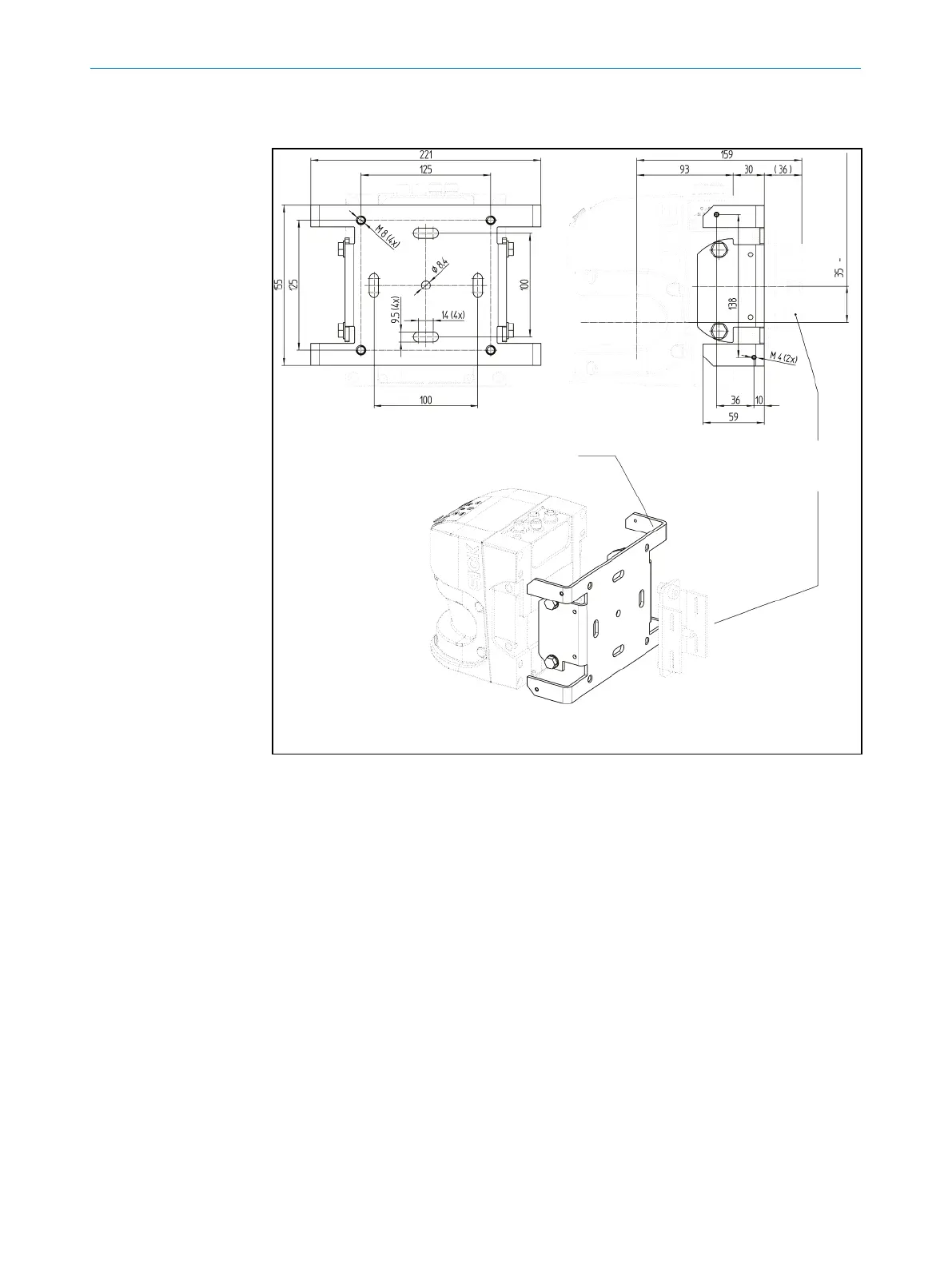

11.3.3 Dimensional drawing mounting bracket for existing LMS2xx mounting kit
Mastbracket
(part no. 2018304)
Mounting bracket (part no. 2059271)
Fig. 44: Dimensional drawing mounting bracket for existing LMS2xx mounting kit (mm)
