SICK Bulkscan LMS511

OPERATING INSTRUCTIONS | Bulkscan LMS511 8014829/ZNC5/2017-06-06 | SICK
Subject to change without notice
76
TECHNICAL DATA

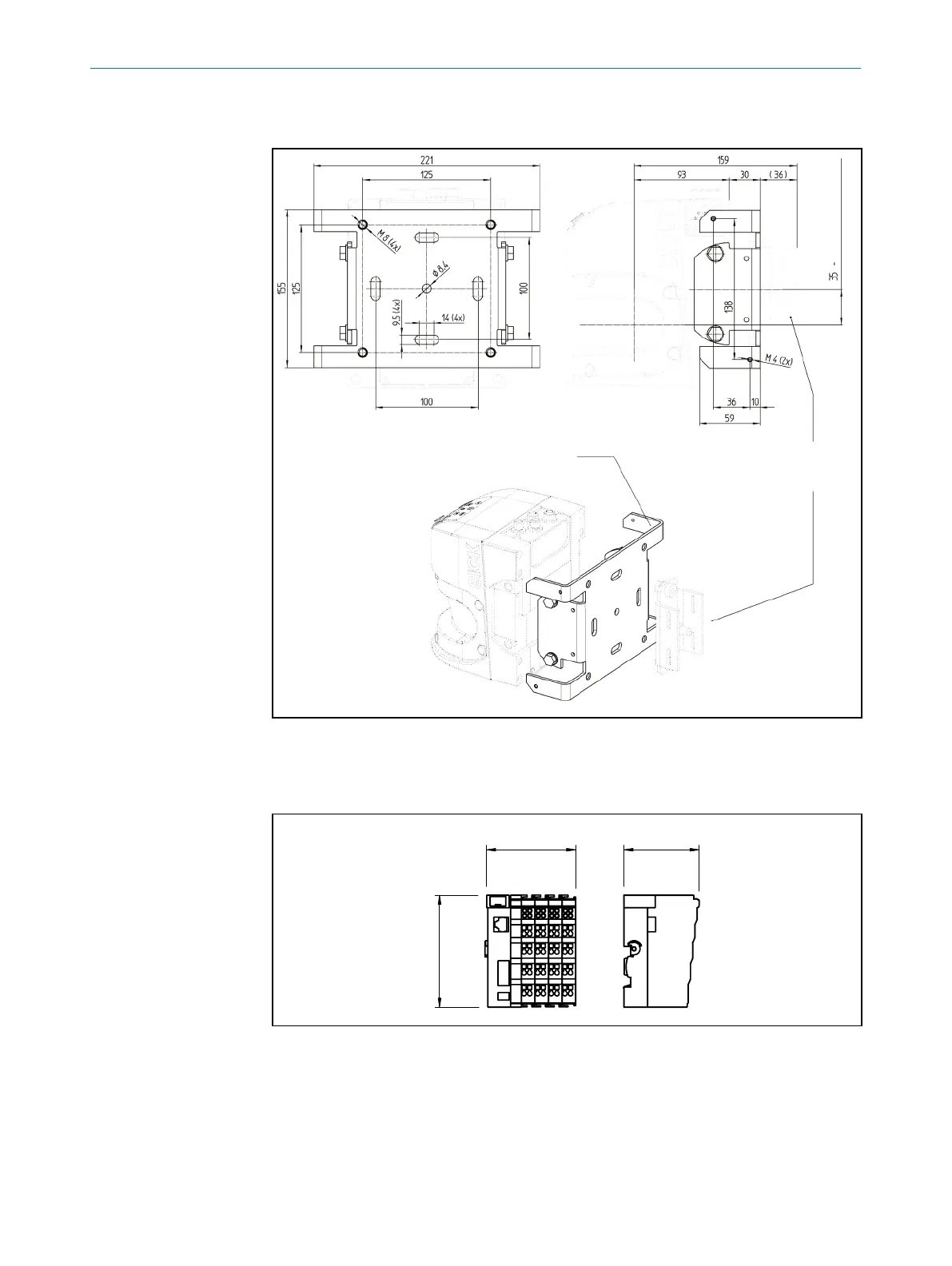

11.3.4 Dimensional drawing mounting bracket with mast bracket
Mastbracket
(part no. 2018304)
Mounting bracket (part no. 2059271)
Fig. 45: Dimensional drawing mounting bracket with mast bracket (mm)
11.3.5 Dimensional drawing analog module BAM100
78.6
(3.09)
98.8
(3.88)
66.4
(2.61)
Fig. 46: Dimensional drawing analog module BAM100
