114 FLOWSIC200 · Operating Instructions · 8013271/1CJ9/V2-0/2022-01 · © SICK Engineering GmbH

Specification

FLSE200-H, FLSE200-HM

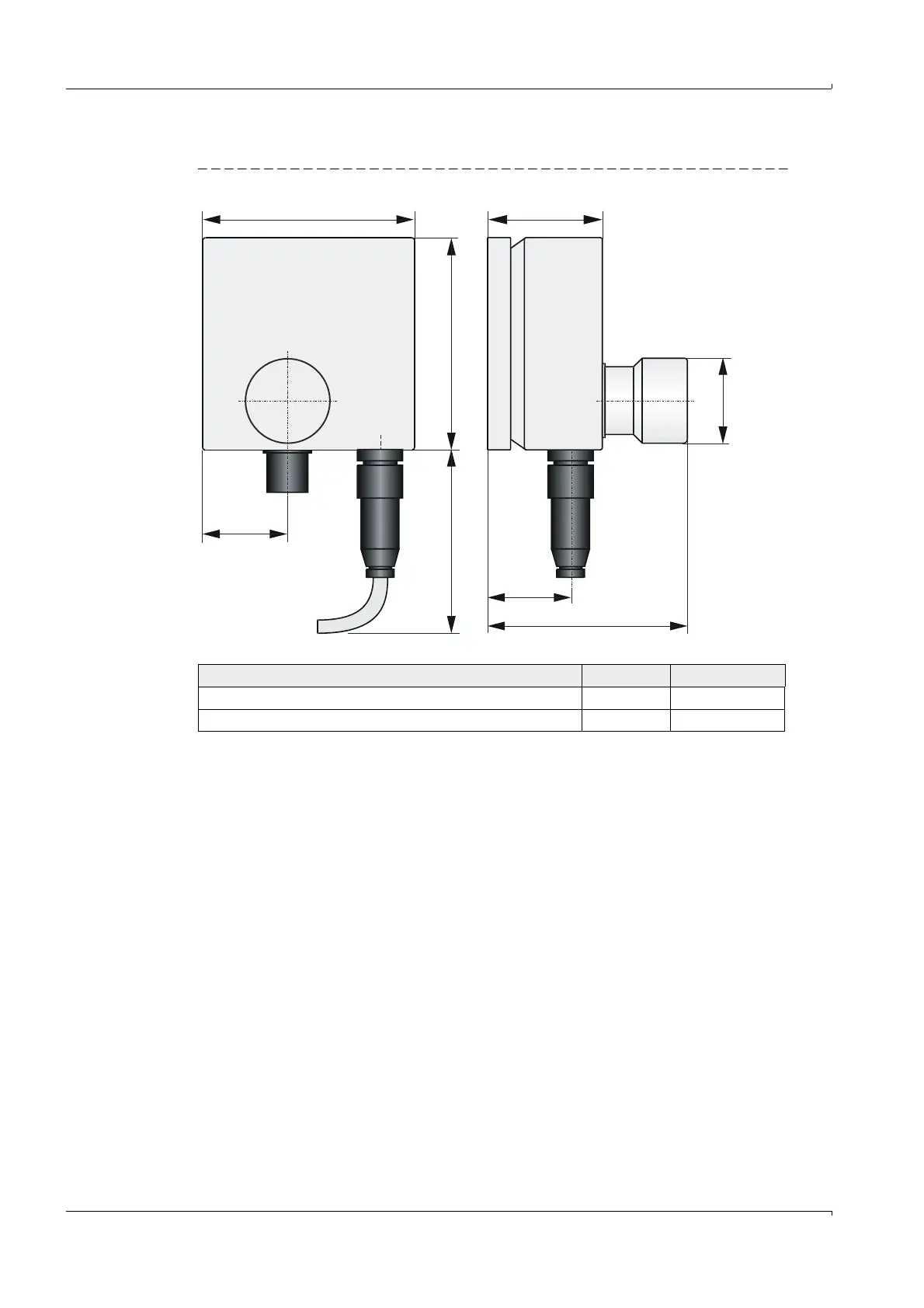

Fig. 97 FLSE200-H, FLSE200-HM sender/receiver unit

150

150 83

> 150

Ø 60

Component Dimension L Part No.

FLSE200-HM sender/receiver unit 141 1057565

FLSE200-H sender/receiver unit 141 1044842
