Product description
FLOWSIC200 · Operating Instructions · 8013271/1CJ9/V2-0/2022-01 · © SICK Engineering GmbH 19

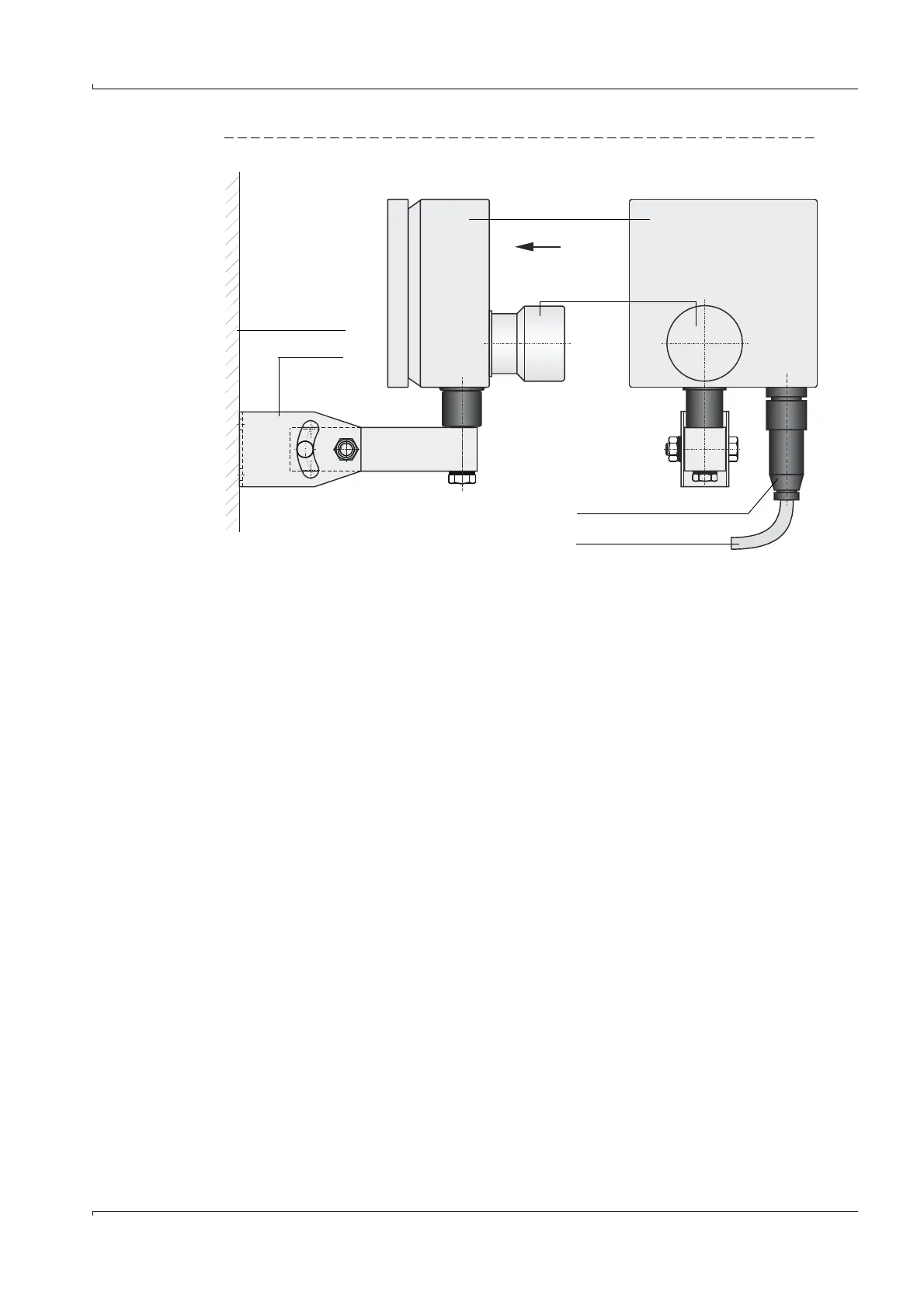

Fig. 6 FLSE200-H, FLSE200-HM sender/receiver unit
2.2.2
Bracket for sender/receiver unit
The bracket serves mounting the sender/receiver unit. It also allows the FLSE200s to be
aligned with each other with the required accuracy. Two hexagonal bolts and dowels serve
to fasten the bracket on the tunnel wall (or ceiling).
The brackets are adapted to the respective sender/receiver unit design, i.e. there are two
types:
 Bracket for FLSE200-M (  p. 18, Fig. 5)
Parts made of stainless steel and aluminium.
 Bracket for FLSE200-H or FLSE200-HM (  Fig. 6)
All parts made of stainless steel.
Tunnel wall
Bracket
Electronics unit
Plug
Connection cable
A
A
Ultrasonic
transducer
