Assembly and installation

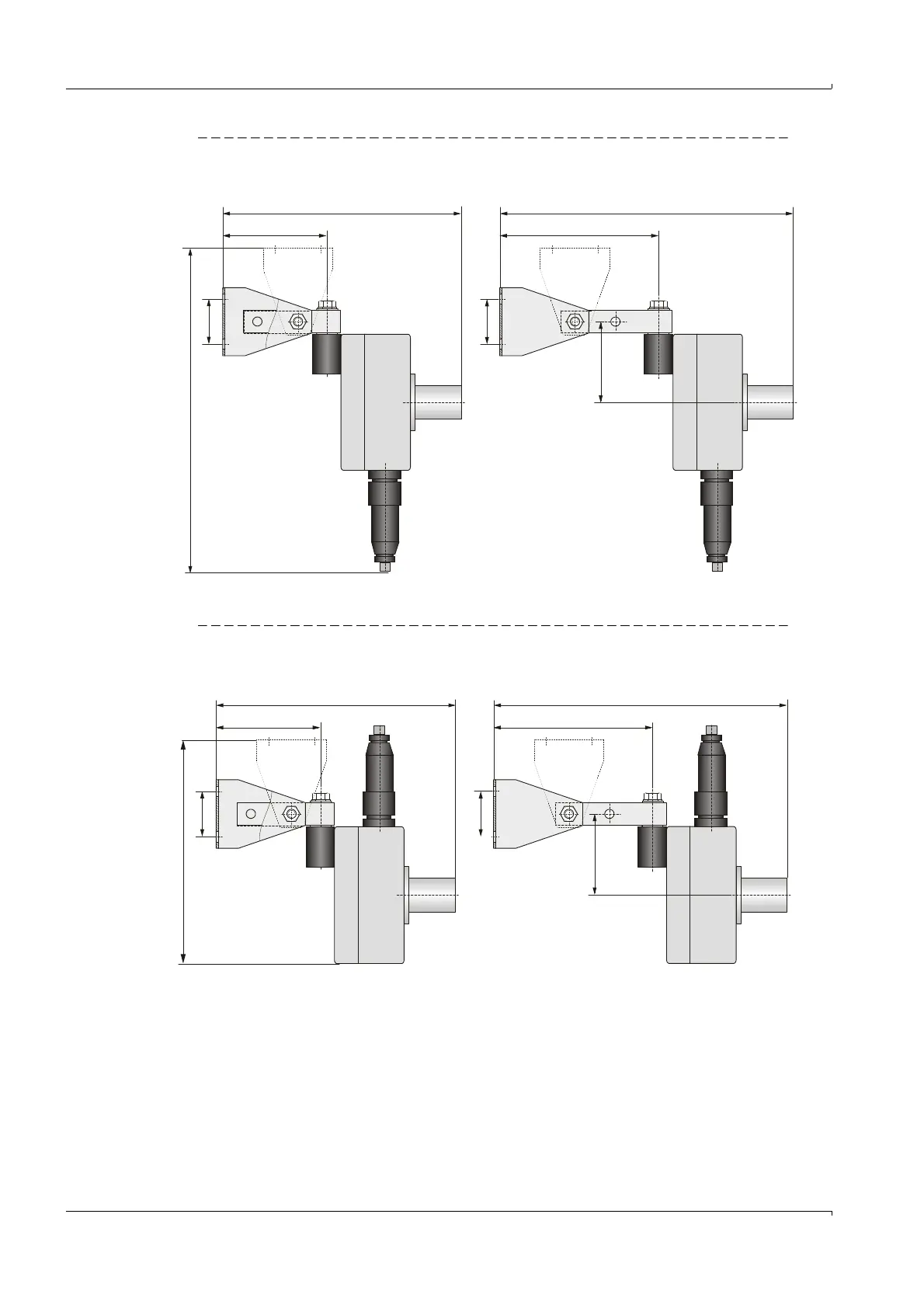

Fig. 19 Hanging positioning with connection cable from below
Fig. 20 Hanging positioning with connection cable from above
Reduced swivel range Extended swivel range
90
210
125
245
40
40
70
350 *
* including free space for connection cable
Reduced swivel range Extended swivel range
90
210
125
245
40
40
70
220
