SICK nanoScan3

5 10 20 50 D [m]D [m]
R [%]
500
200
100
50
20
10
5
2
1
6
5
3
2
4
1

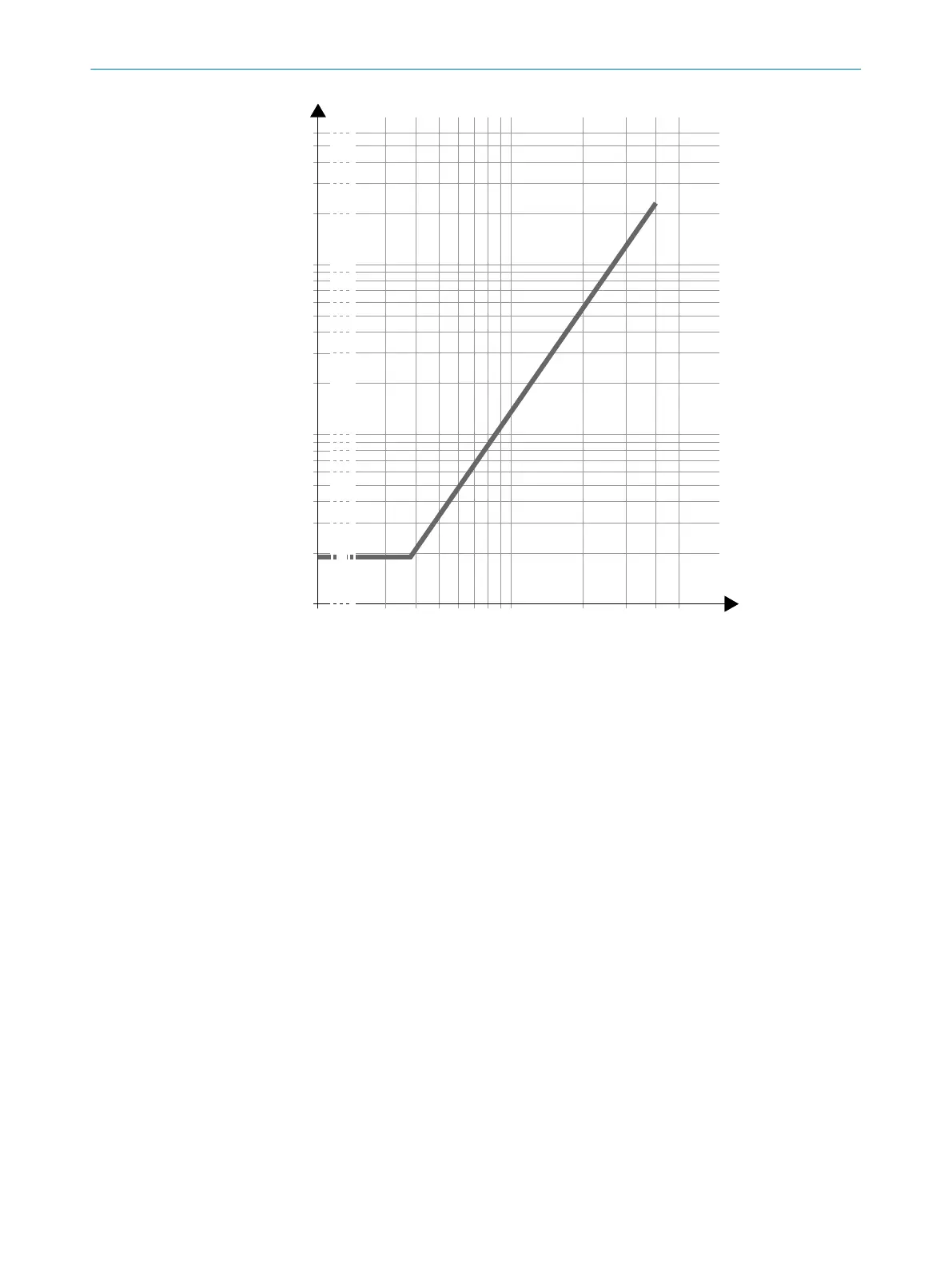

Figure 51: Range and required remission for measured data output
R Required minimum remission in %
D Scanning range in m
1
Black shoe leather
2
Matt black paint
3
Gray cardboard
4
Writing paper
5
White plaster
6
Reflectors>2,000%, reflective tapes>300%
6)
6)
T
he measured values are less accurate for reflectors or reflective surfaces because the distance measurement is designed for lower
remission values.
