Description
● Port
Shows the available ports.
● Frame lengths
The other columns after the port number contain the absolute numbers of incoming frames
according to their frame length.
The following frame lengths are distinguished:
– 64 bytes
– 65 - 127 bytes
– 128 - 255 bytes
– 256 - 511 bytes
– 512 - 1023 bytes
– 1024 - Max.
● "Reset Counters" button
Click "Reset Counters" to reset all counters. The counters are reset by a restart.

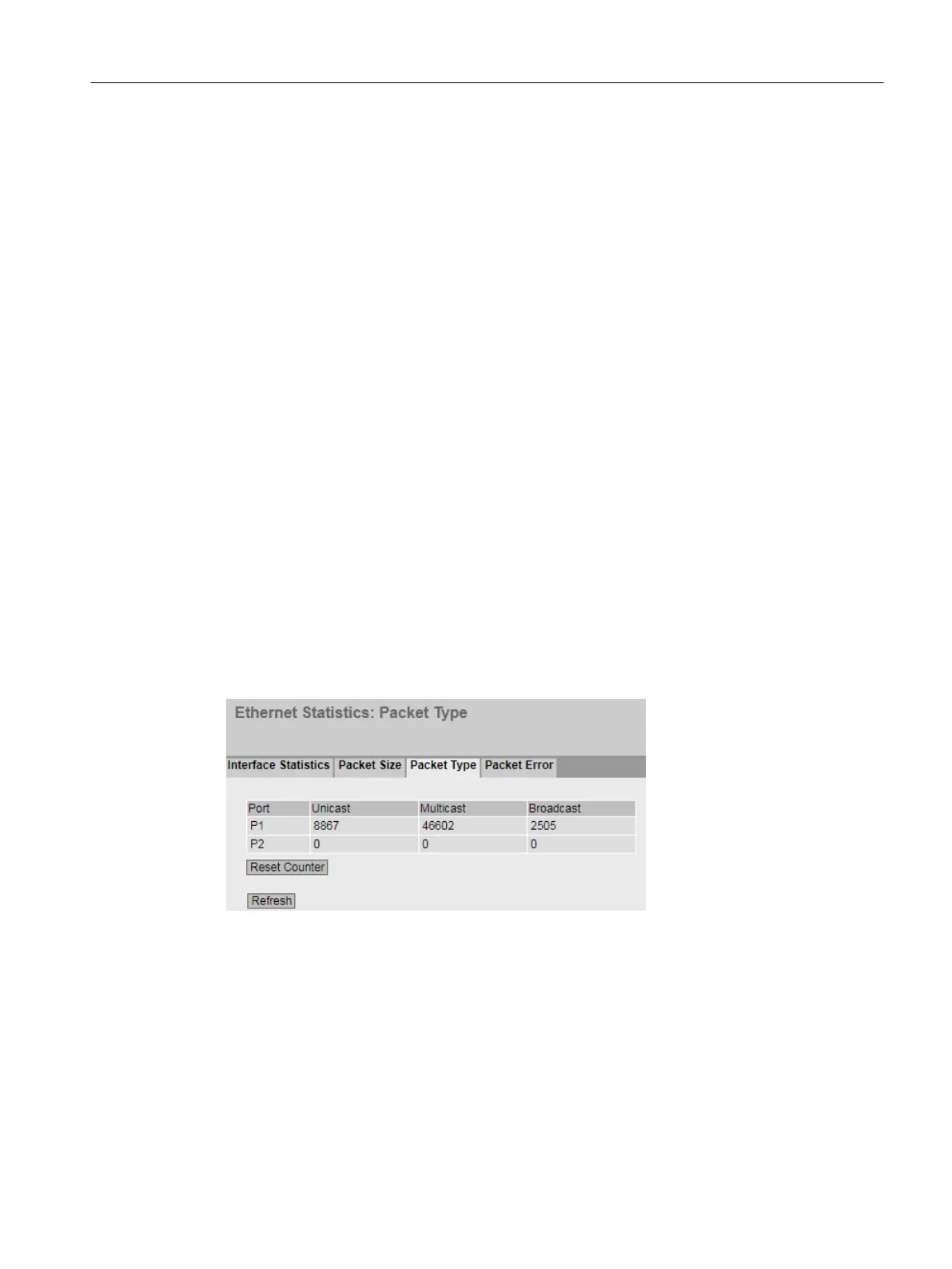

6.4.8.3 Packet Type
Received frames sorted by type
This page displays how many frames of the type "Unicast", "Multicast", and "Broadcast" were
received at each port. You cannot configure anything on this page.
Description
● Port
Shows the available ports.
● Unicast/Multicast /Broadcast
The other columns after the port number contain the absolute numbers of the incoming
frames according to their frame type "Unicast", "Multicast" and "Broadcast"
● "Reset Counters" button
Click "Reset Counters" to reset all counters. The counters are reset by a restart.
Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 105
