Procedure
To configure two antennas, follow the steps below:
1. For the first antenna connector (R1 A1) in the "Antenna Type" drop-down list, select the type
of antenna.
2. In the "Cable Length" input box, enter the length of the connecting cable you are using in
meters. For antenna connector 1 (R1 A1 and R2 A1), the entry "Antenna Mode" cannot be
changed.
3. For the second antenna connector (R1 A2) in the "Antenna Type" drop-down list, select the
entry "Not used (Connect 50 Ohm Termination)".
4. Click the "Set Values" button.

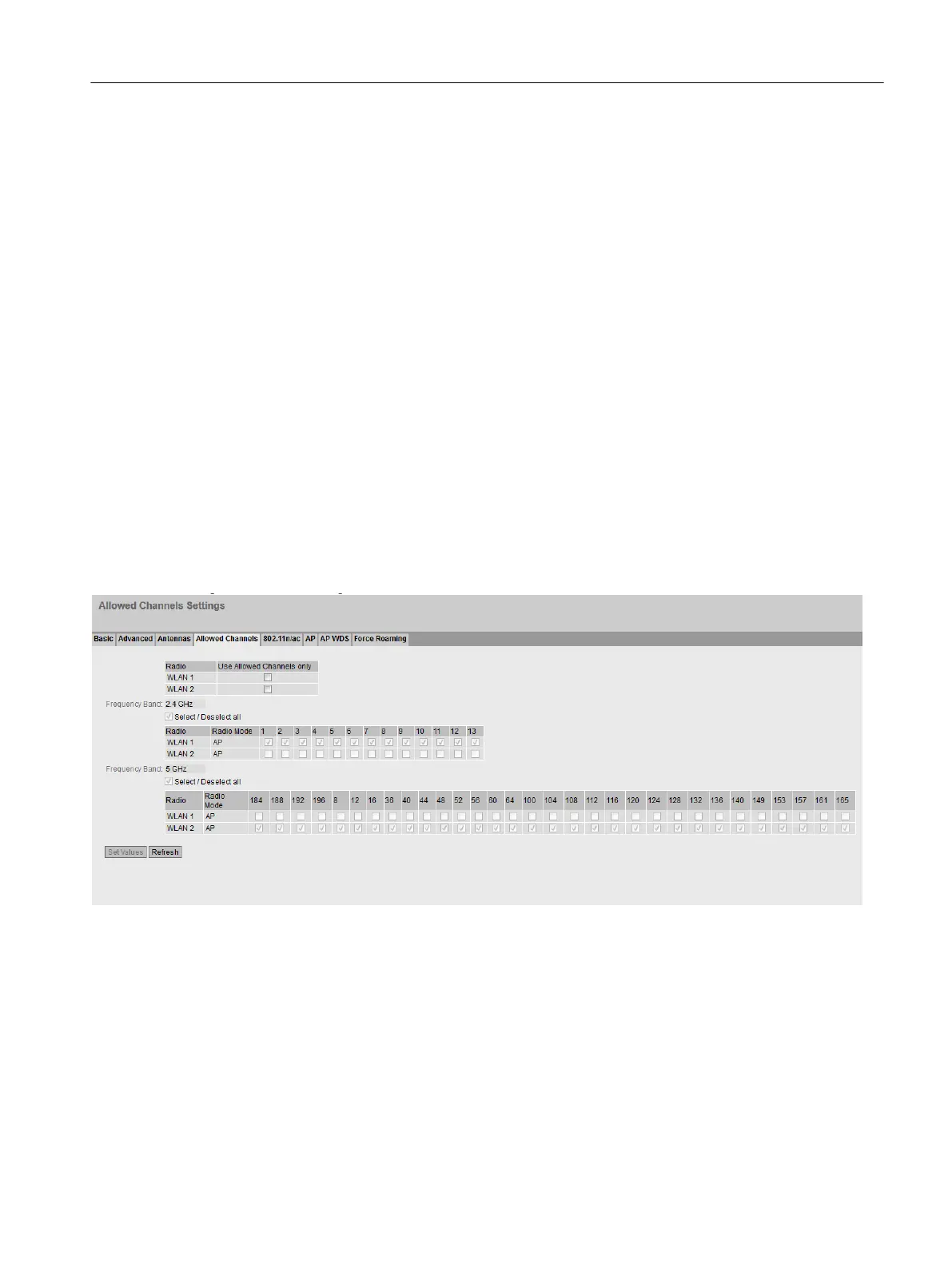

6.6.2.4 Allowed Channels
Channel settings
For communication, a specific channel within a frequency band is used. You can either set this
channel specifically or configure so that the channel is selected automatically.
On this page, you specify which channels may be used for communication.
Configuring with Web Based Management
6.6 "Interfaces" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 235
