6.7.3 Spanning Tree
6.7.3.1 General

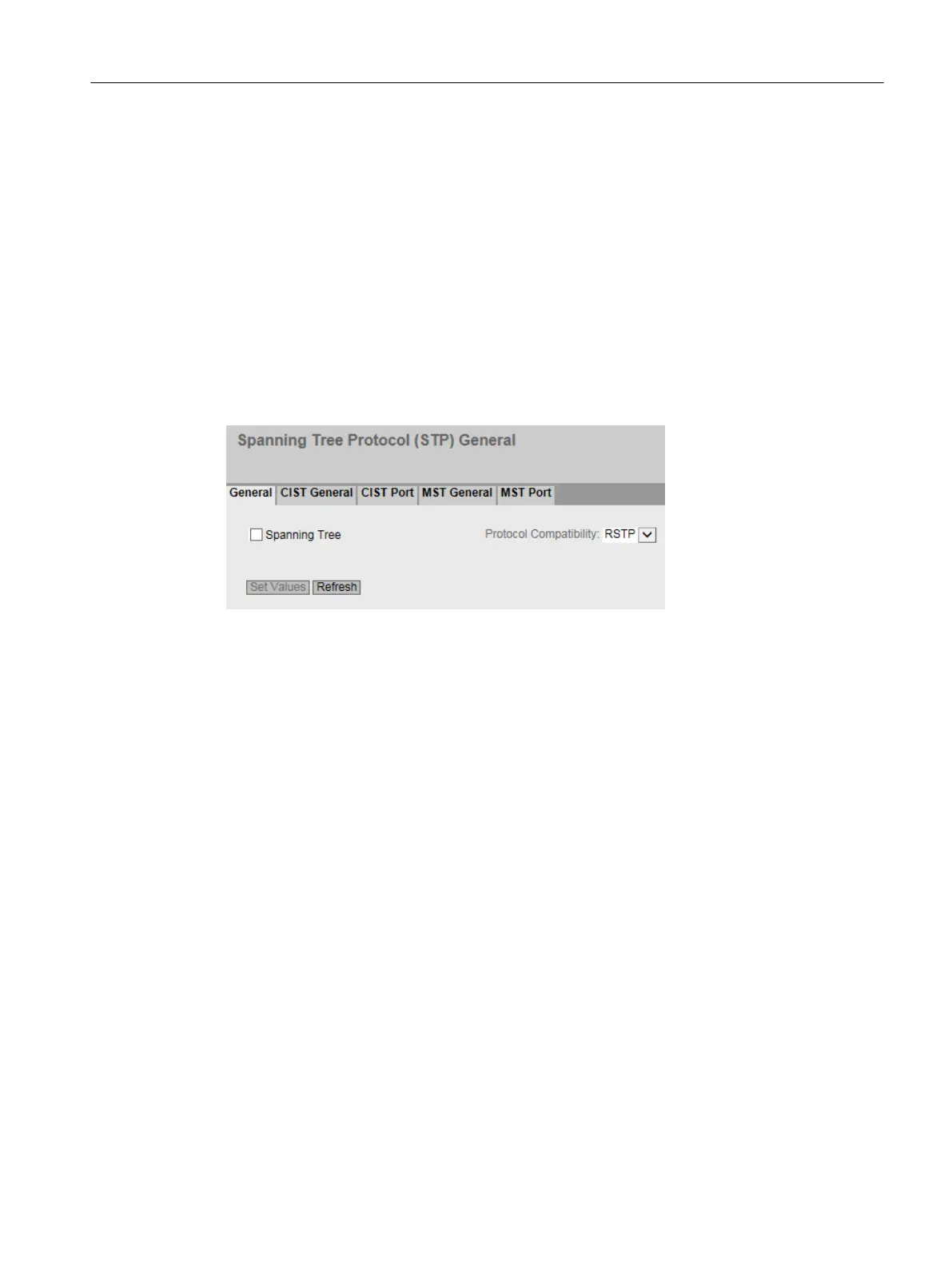

General settings of spanning tree
This is the basic page for spanning tree. Select the compatibility mode from the drop-down list.
As default, Multiple Spanning Tree is enabled.
On the configuration pages of these functions, you can make detailed settings.
Depending on the compatibility mode, you can configure the corresponding function on the
relevant configuration page.
Description
The page contains the following boxes:
● Spanning Tree
Enable or disable MSTP.
● Protocol Compatibility
Select the compatibility mode of MSTP. For example if you select RSTP, MSTP behaves
like RSTP.
The following settings are available:
– STP
– RSTP
– MSTP
Procedure
1. Select the "MSTP" check box.
2. Select the compatibility mode from the "Protocol Compatibility" drop-down list.
3. Click the "Set Values" button.
Configuring with Web Based Management
6.7 "Layer 2" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 269
