● Cable length [m]
Enter the length of the flexible antenna connecting cable in meters between the device and
the external antenna.
● Additional Attenuation [dB]
Here, specify the additional attenuation caused, for example, by an additional splitter.
● Antenna Configuration for Channel Width 160 MHz (not with SCALANCE W1788-2IA M12)
– Access point mode (not configurable)
If the channel bandwidth of WLAN 1 or WLAN 2 is set to 160 MHz, the setting is
displayed. The channel bandwidth is configured under "Interfaces > WLAN > AP".
– Client mode (configurable)
If this is activated, the channel bandwidth on the WLAN interface is set to 160 MHz. The
prerequisite is that DFS and IEEE 802.11ac are enabled. There are only enough
channels available for operation at 160 MHz if DFS is activated.

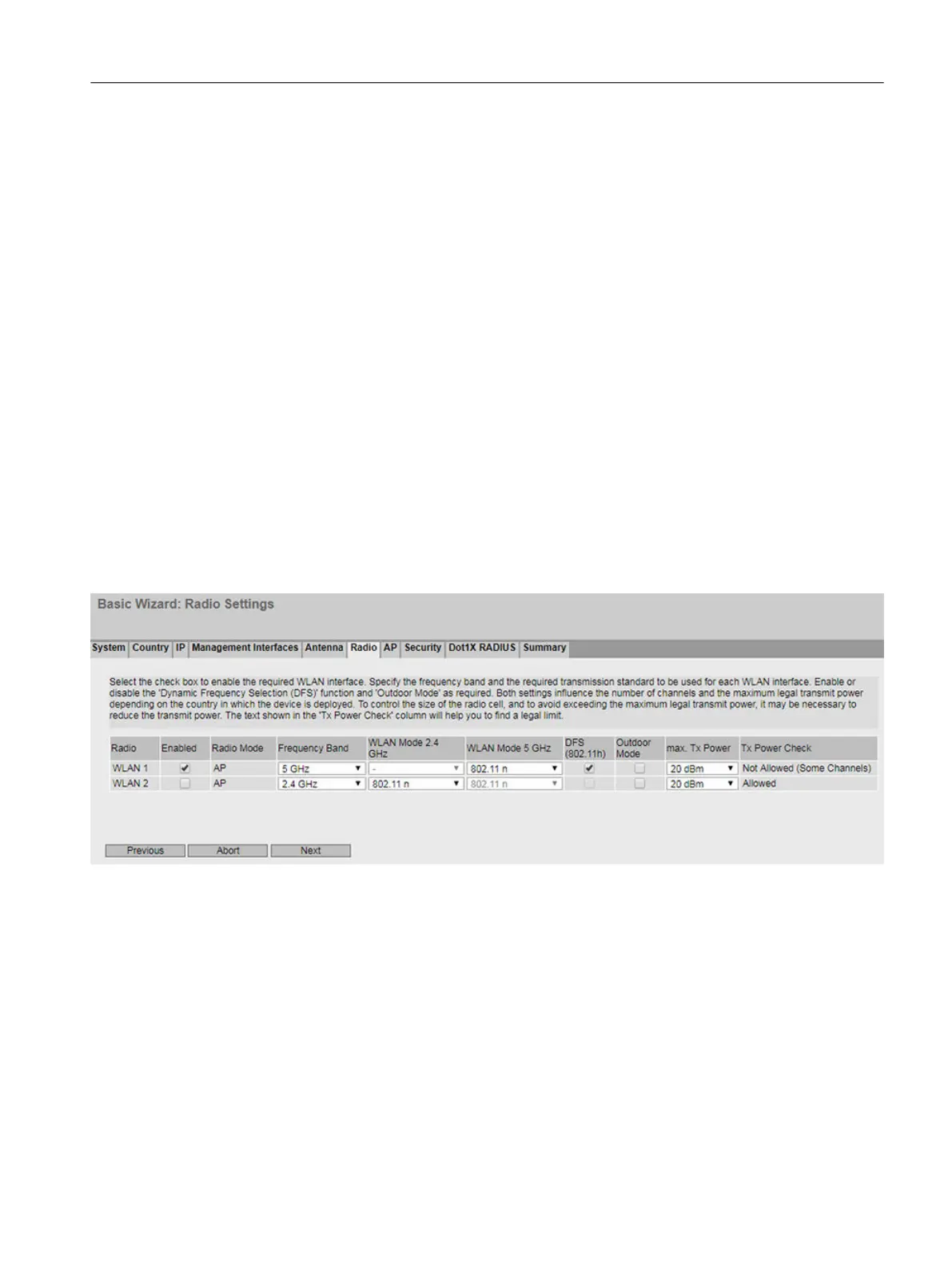

6.3.1.6 Radio Settings
Introduction
On this Basic Wizard page, you specify the configuration for the WLAN interfaces.
Description
The table contains the following columns:
● Radio
Shows the available WLAN interfaces.
● Enabled
Enable or disable the WLAN interface. The WLAN interfaces are disabled when the device
is supplied.
● Radio Mode
Shows the mode of the WLAN interface.
Configuring with Web Based Management
6.3 "Wizard" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 69
