6.4.17.5 Data Received

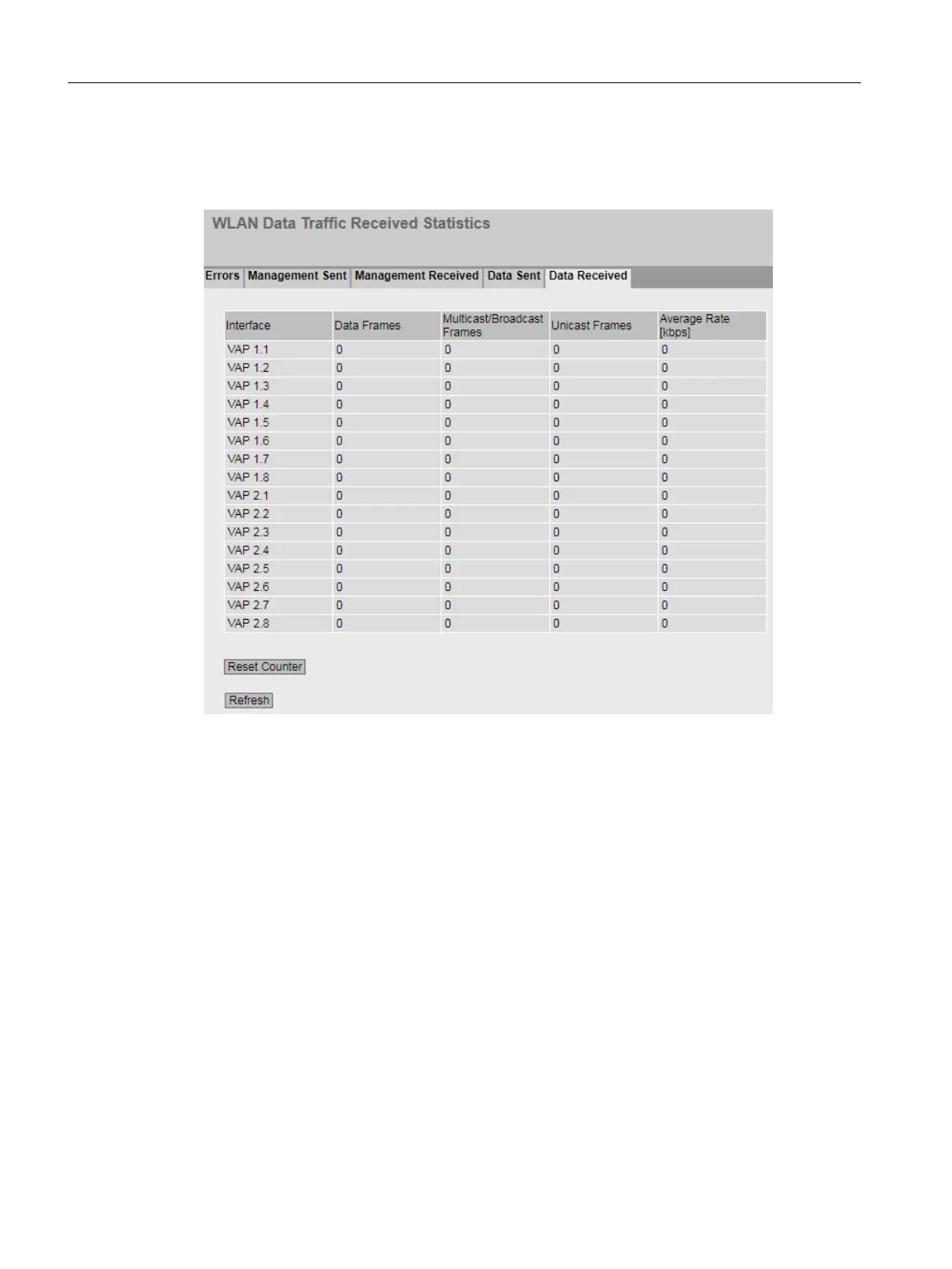

The WBM page shows how many frames were received per VAP interface.
Description
The table has the following columns:
● Interface
Shows the VAP interface to which the entries apply.
● Frame types
The other columns after the VAP interface contain the absolute numbers of the received
frames according to the frame types.
In the columns of the table, a distinction is made according to the following frame types:
– Data Frames
Shows the number of sent data frames.
– Multicast/Broadcast Frames
Shows the number of sent multicast and broadcast frames.
– Unicast Frames
Shows the number of sent unicast frames.
– Average Rate [kbps]
Shows the average data rate of the last data frames sent.
Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
138 Configuration Manual, 11/2019, C79000-G8976-C485-03
