Description
The page contains the following boxes:
● PROFINET Device Diagnostics
Shows whether PROFINET is enabled ("On") or disabled ("Off").
● PROFINET runtime mode for next boot
Set whether PROFINET will be enabled ("On") or disabled ("Off") after the next device
restart.
Note
PROFINET and EtherNet/IP
When PROFINET is turned on, EtherNet/IP is turned off. The switchover from PROFINET
and EtherNet/IP has no effect on DCP.
Note
PROFINET AR Status
If a PROFINET connection is established; in other words the PROFINET AR status is
"Online", you cannot disable PROFINET.
● PROFINET AR Status
This box shows the status of the PROFINET connection; in other words whether the device
is connected to a PROFINET controller "Online" or "Offline".
Here, online means that a connection to a PROFINET IO controller exists, that this has
downloaded its configuration data to the device and that the device can send status data to
the PROFINET IO controller. In this status known as "in data exchange", the parameters set
via the PROFINET controller cannot be configured.
● PROFINET Name of Station
This box displays the PROFINET device name according to the configuration in HW Config
of STEP 7.
6.5.17 EtherNet/IP

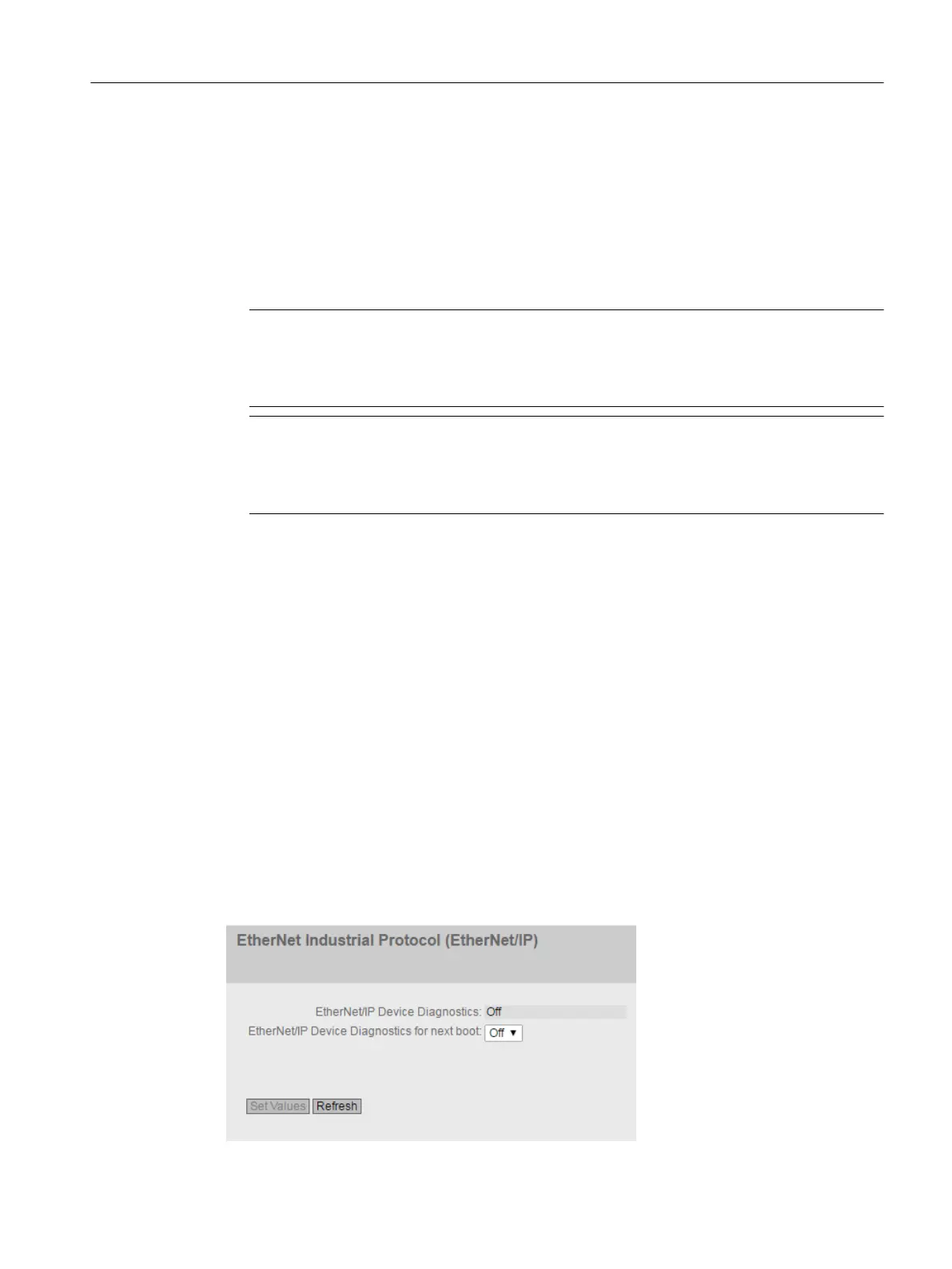

Settings for EtherNet/IP
On this page, you configure the mode of EtherNet/IP.
Configuring with Web Based Management
6.5 "System" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 209
