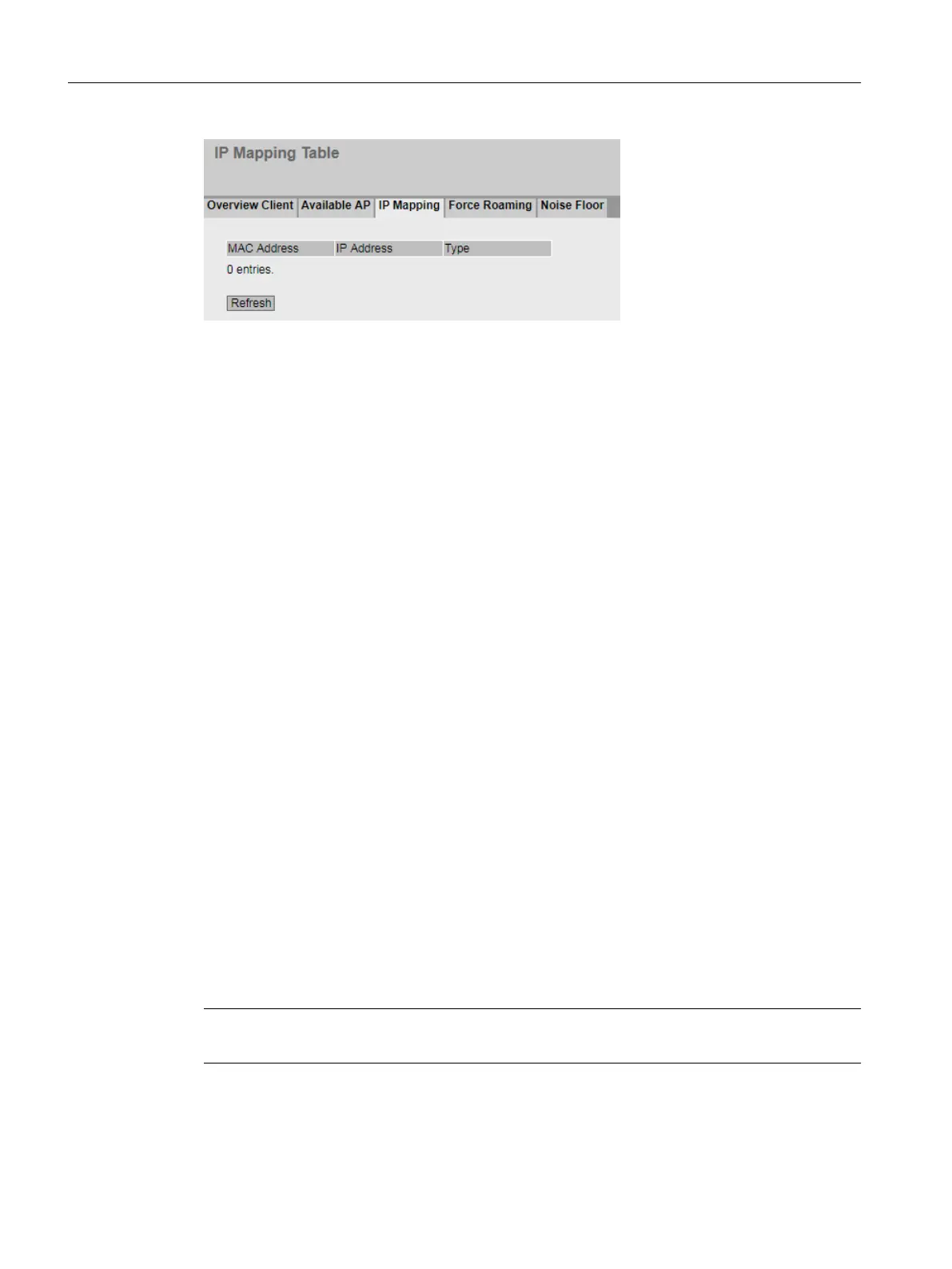

Description
The table has the following columns
● MAC Address
The MAC address of a device located downstream from the WLAN client from the
perspective of the access point.
● IP Address
The IP address managed for this device by the WLAN client.
● Type
There are two options for the type:
– system
The information relates to the WLAN client itself.
– learned
The information relates to a device downstream from the WLAN client.
MAC mode
Frames sent by the client to the access point always have the MAC address of the WLAN client
as the source MAC address. In the "learning table" of the access point there is therefore only
the MAC address of the WLAN client.
If there are multiple SCALANCE W devices downstream from the client, the "Automatic" option
should not be enabled. In this case, the MAC address would be assigned indiscriminately to the
first SCALANCE W device that signals over Ethernet. If there is only IP communication
between the access point and the client, the default setting "Own" can be retained. If MAC
address-based frames are also to be sent by SCALANCE W700 devices downstream from the
client, you need to select the settings "Automatic", "Manual" or "Layer 2 Tunnel".
6.4.16.6 WDS List
Note
This WBM page is only available in access point mode.
Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
126 Configuration Manual, 11/2019, C79000-G8976-C485-03
