6.4.4.2 IPv6 Neighbor Table
Assignment of MAC address and IPv6 address
Via the IPv6 neighbor table, there is a unique assignment of MAC address to IPv6 address. This
assignment is kept by each network node in its own separate neighbor table.

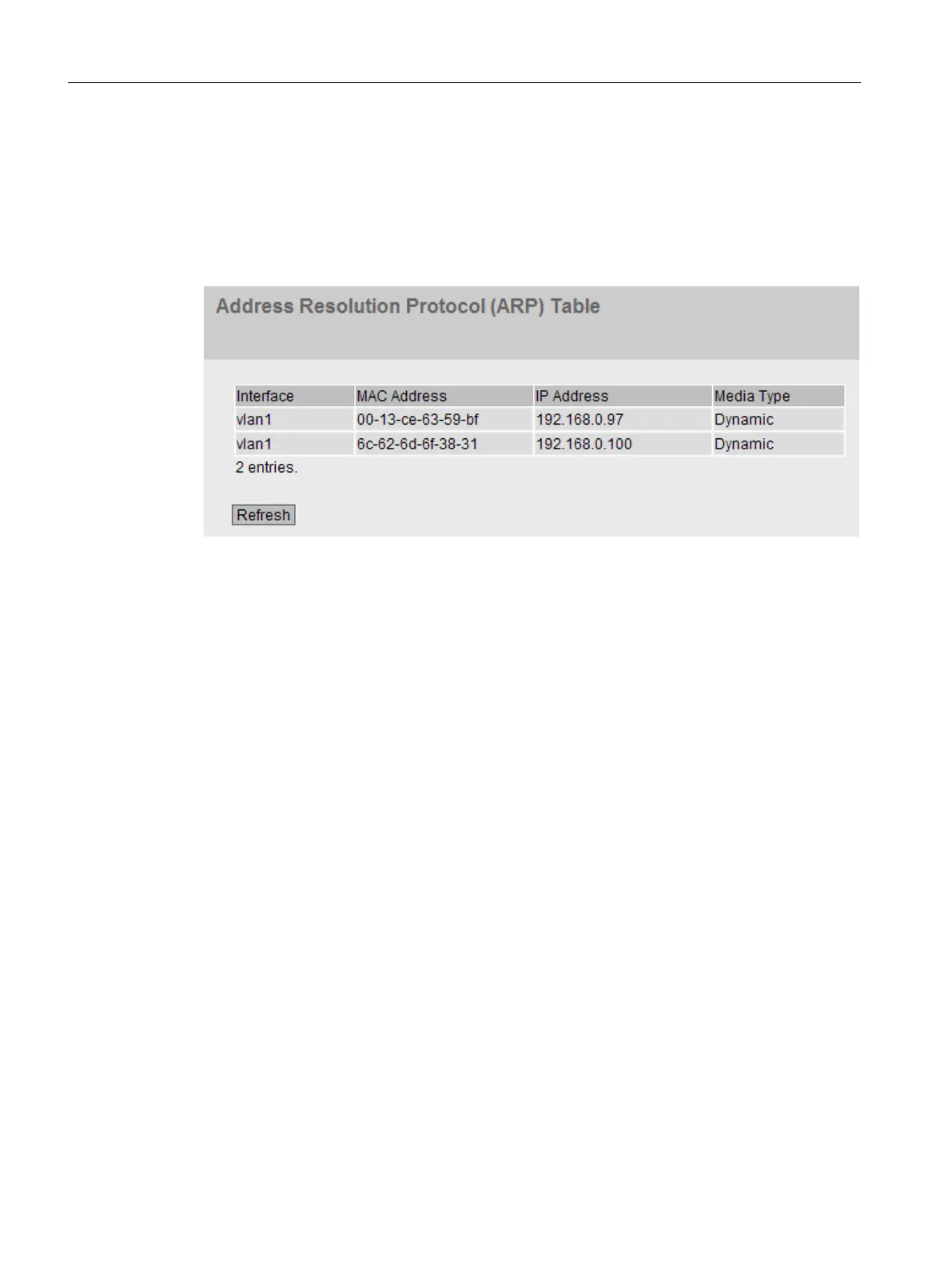

Description of the displayed values
The table has the following columns:
● Interface
Displays the interface via which the row entry was learnt.
● MAC Address
Shows the MAC address of the destination or source device.
● IP Address
Shows the IPv6 address of the destination device.
● Media Type
Shows the type of connection.
– Dynamic
The device recognized the address data automatically.
– Static
The addresses were entered as static addresses.
Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
94 Configuration Manual, 11/2019, C79000-G8976-C485-03
