11.Select the interface and click the "OK" button.
12.To start the recording, click "Start" in the "Capture" menu. You can obtain further information
about handling the program in Wireshark.
If you analyze several interfaces, you can use a Wireshark instance for each interface.
6.7 "Layer 2" menu
6.7.1 VLAN
6.7.1.1 General

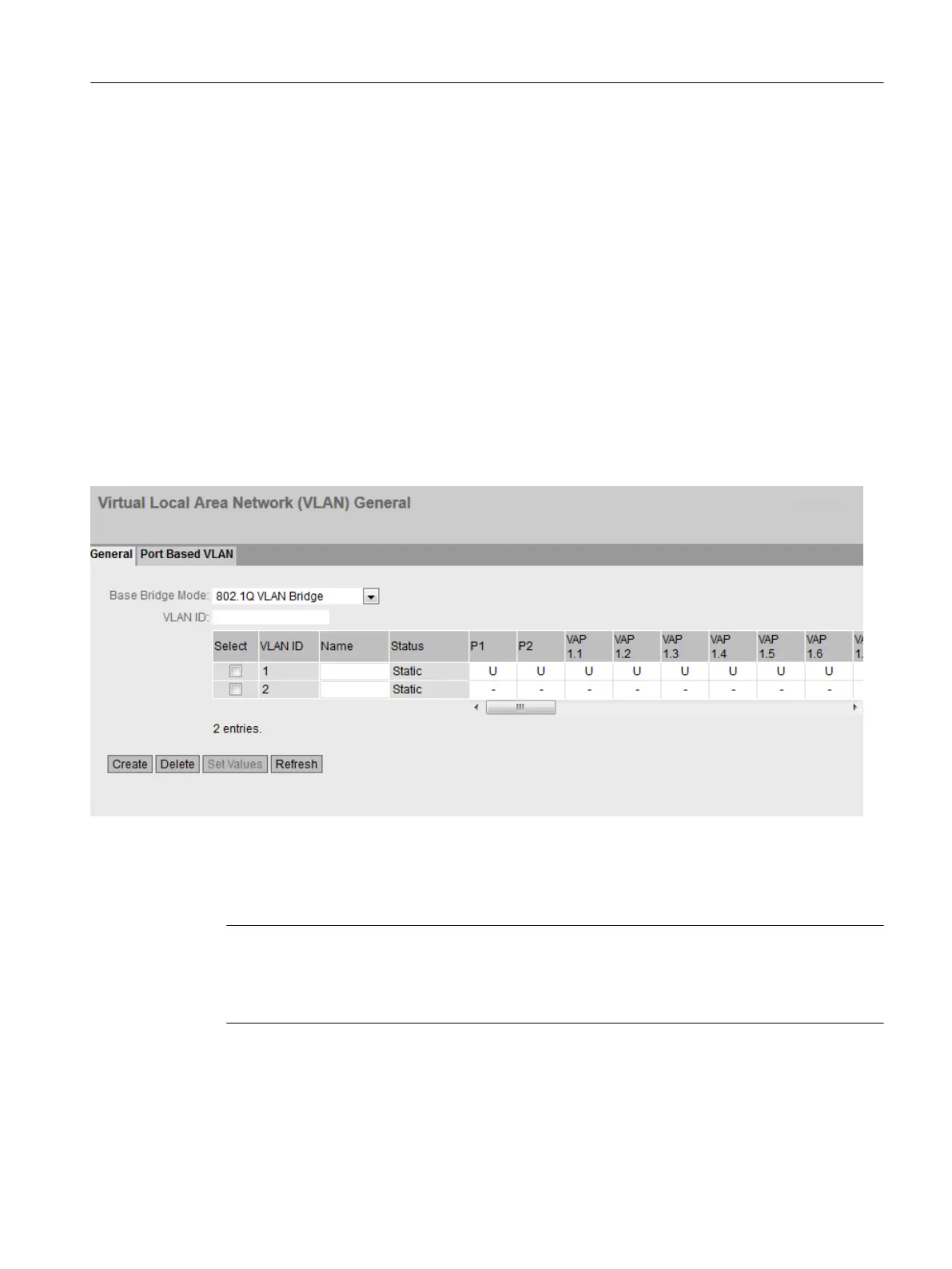

On this page you specify whether or not the device forwards frames with VLAN tags
transparently (IEEE 802.1D/VLAN-unaware mode) or takes VLAN information into account
(IEEE 802.1Q/VLAN-aware mode). If the device is in the "802.1Q VLAN Bridge" mode, you can
define VLANs and specify the use of the ports .
Note
Changing the agent VLAN ID
If the configuration PC is connected directly to the device via Ethernet and you change the
management VLAN ID, the device is no longer reachable via Ethernet following the change.
Configuring with Web Based Management
6.7 "Layer 2" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 261
