Procedure
1. Select the required LLDP functionality from the drop-down list.
2. Click the "Set Values" button.
6.8 Menu "Layer 3 (IPv4)"
6.8.1 Subnets
6.8.1.1 Overview

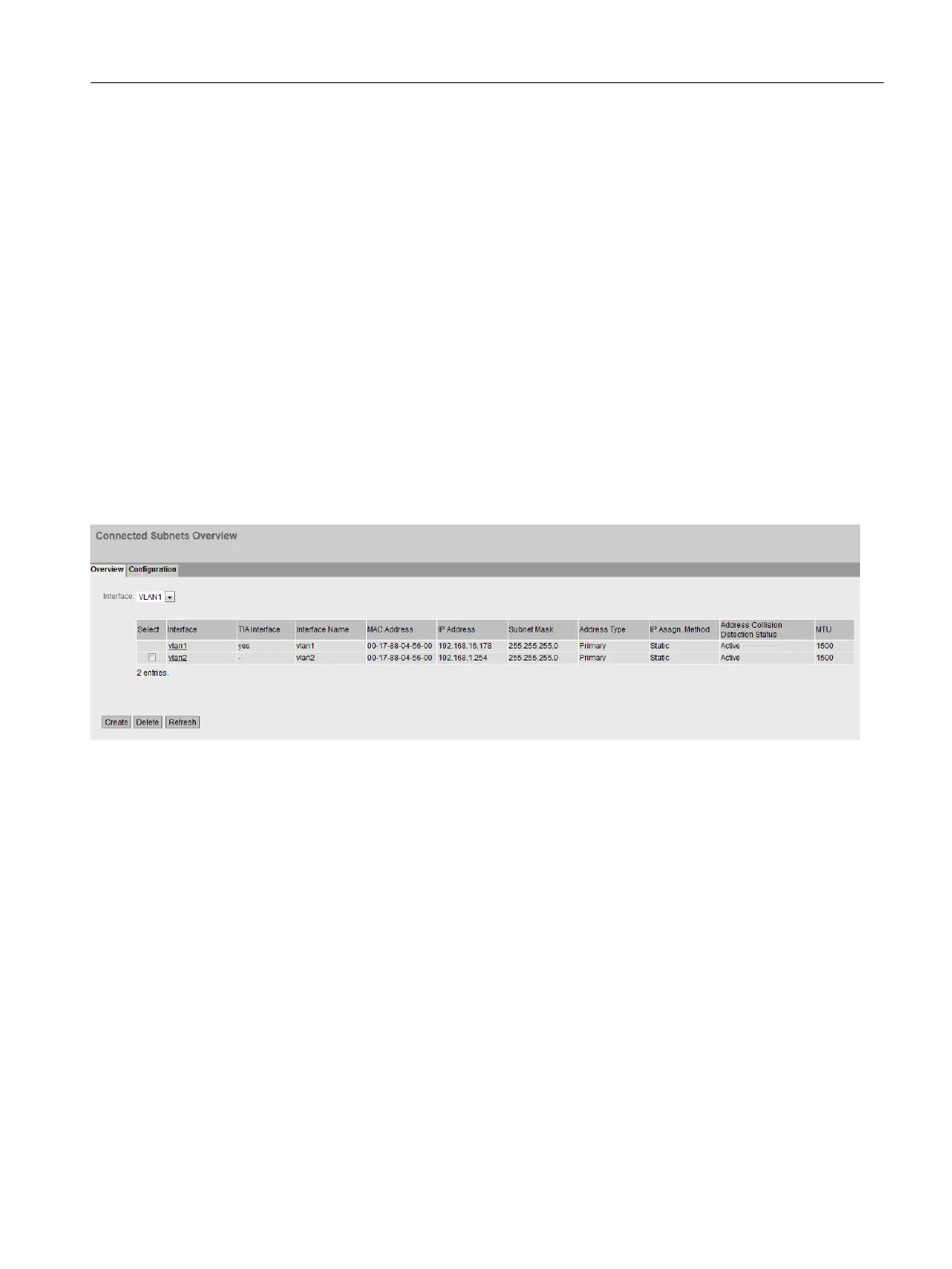

The page shows the subnets for the selected VLAN interface. This VLAN interface is also called
an IPv4 interface. A subnet always relates to an IPv4 interface. The IPv4 address is assigned
in the "Configuration" tab.
Description
The page contains the following boxes:
Interface
Select the interface on which you want to configure the subnet.
The table has the following columns:
Select
Select the row you want to delete.
Interface
Shows the interface.
TIA Interface
Shows the selected TIA interface.
Interface Name
Shows the name of the interface.
MAC Address
Shows the MAC address.
Configuring with Web Based Management
6.8 Menu "Layer 3 (IPv4)"
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 283
