6.7.3.5 MST Port
Configuration of the Multiple Spanning Tree port parameters

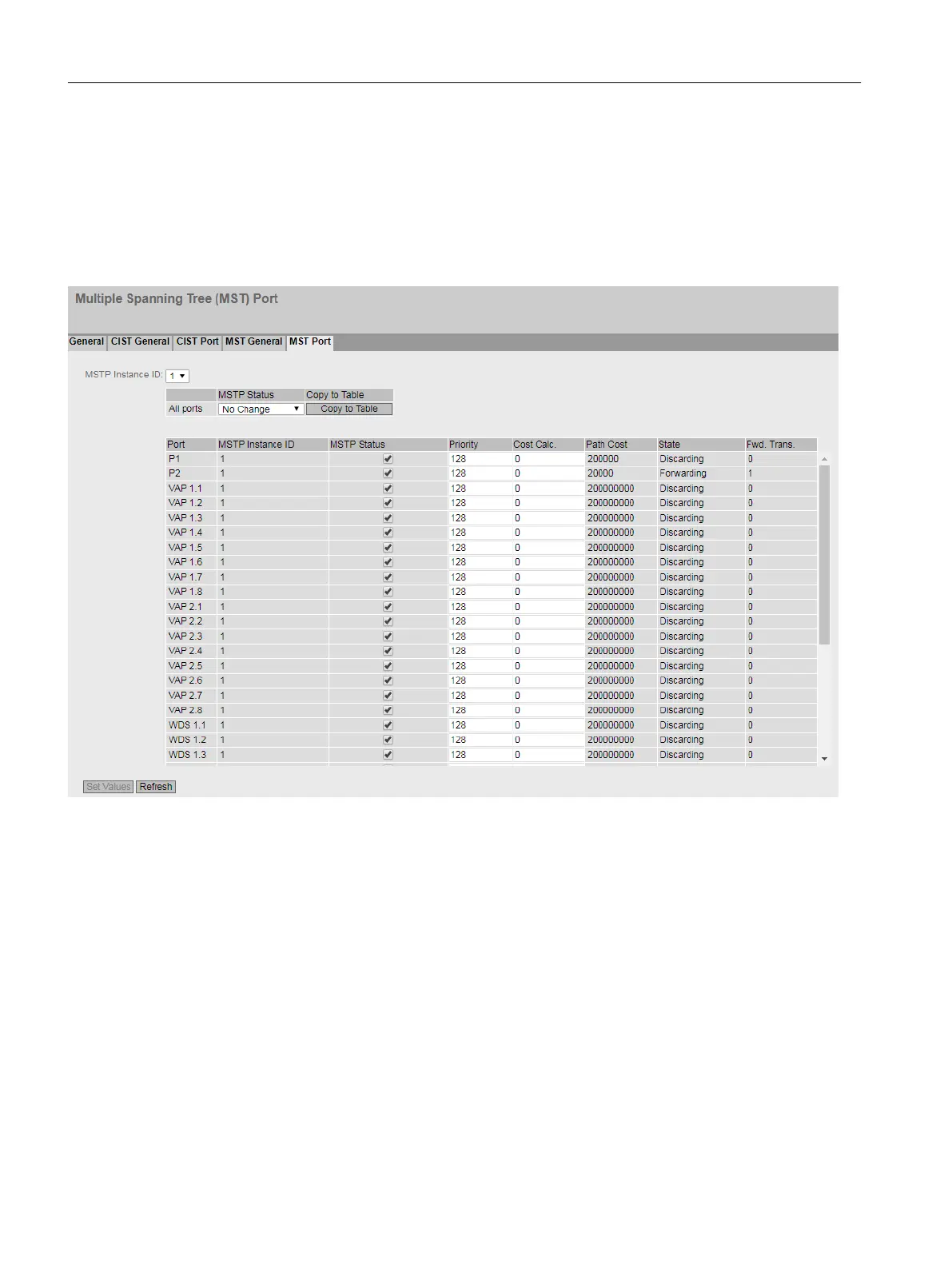

On this page, you set the parameters for the ports of the configured multiple spanning tree
instances.
Description
The page contains the following box:
● MSTP Instance ID
In the drop-down list, select the ID of the MSTP instance.
Table 1 has the following columns:
● Column 1
Shows that the settings are valid for all ports of table 2.
● MSTP Status
In the drop-down list, select the setting for all ports. If "No Change" is selected, the entries
of the corresponding column in table 2 remain unchanged.
● Copy to Table
If you click the button, the setting is adopted for all ports of table 2.
Configuring with Web Based Management
6.7 "Layer 2" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
278 Configuration Manual, 11/2019, C79000-G8976-C485-03
