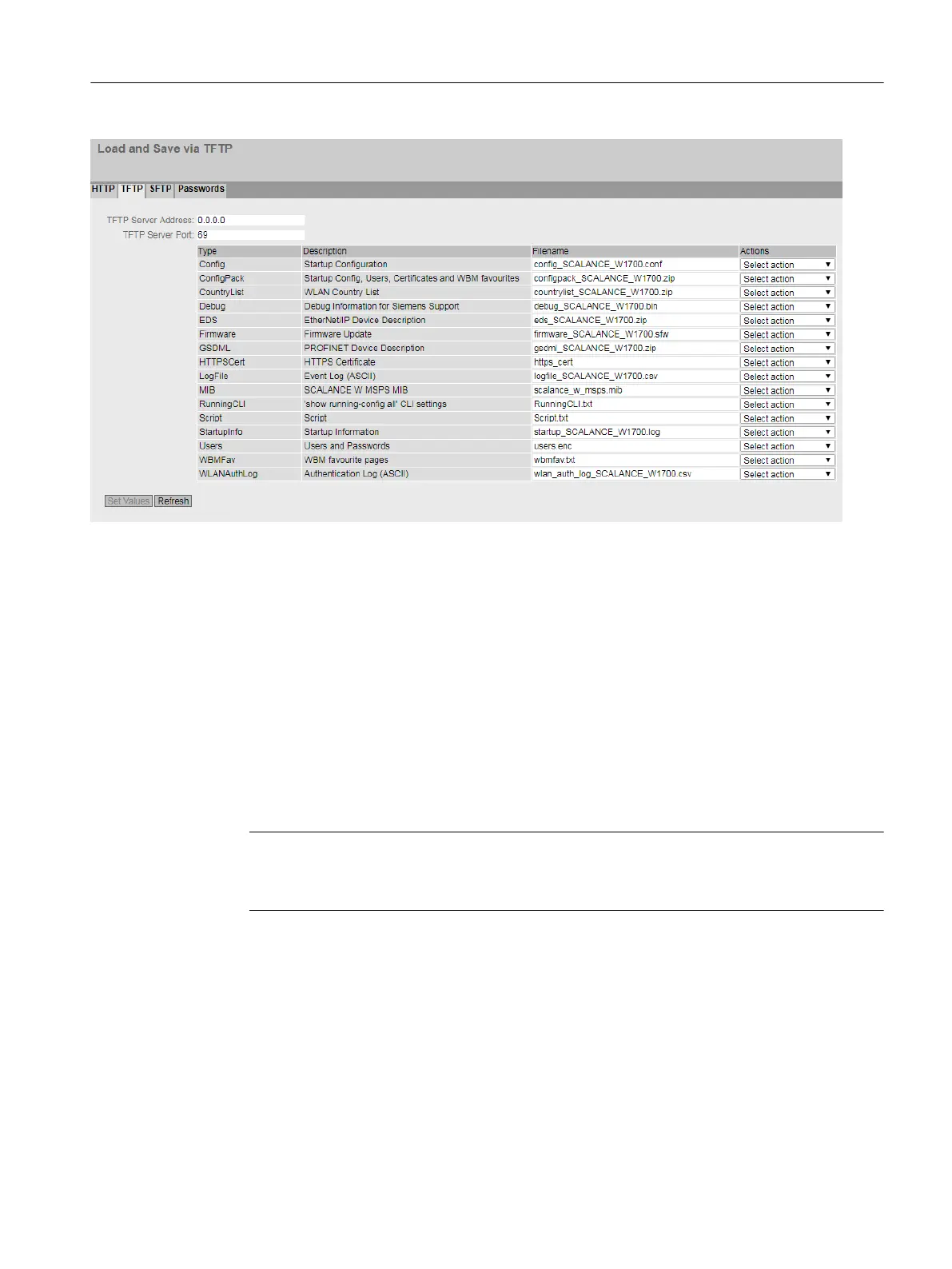

Description
The page contains the following boxes:
● TFTP Server Address
Here, enter the IP address or the FQDN (Fully Qualified Domain Name) of the TFTP server
with which you exchange data.
● TFTP Server Port
Here, enter the port of the TFTP server via which data exchange will be handled. If
necessary, you can change the default value 69 to your own requirements.
The table has the following columns:
● Type
Shows the name of the file.
Note
Size of certificate files
With certificate files only certificates with a maximum of 8192 bits are supported.
● Description
Shows the short description of the file type.
Configuring with Web Based Management
6.5 "System" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 159
