Communication
In normal operation, the access point is used as an interface to a network and communicates
with clients. There are, however, situations in which several access points need to
communicate with each other, for example to extend wireless coverage or to set up a wireless
backbone. This mode is possible with WDS (Wireless Distributed System).

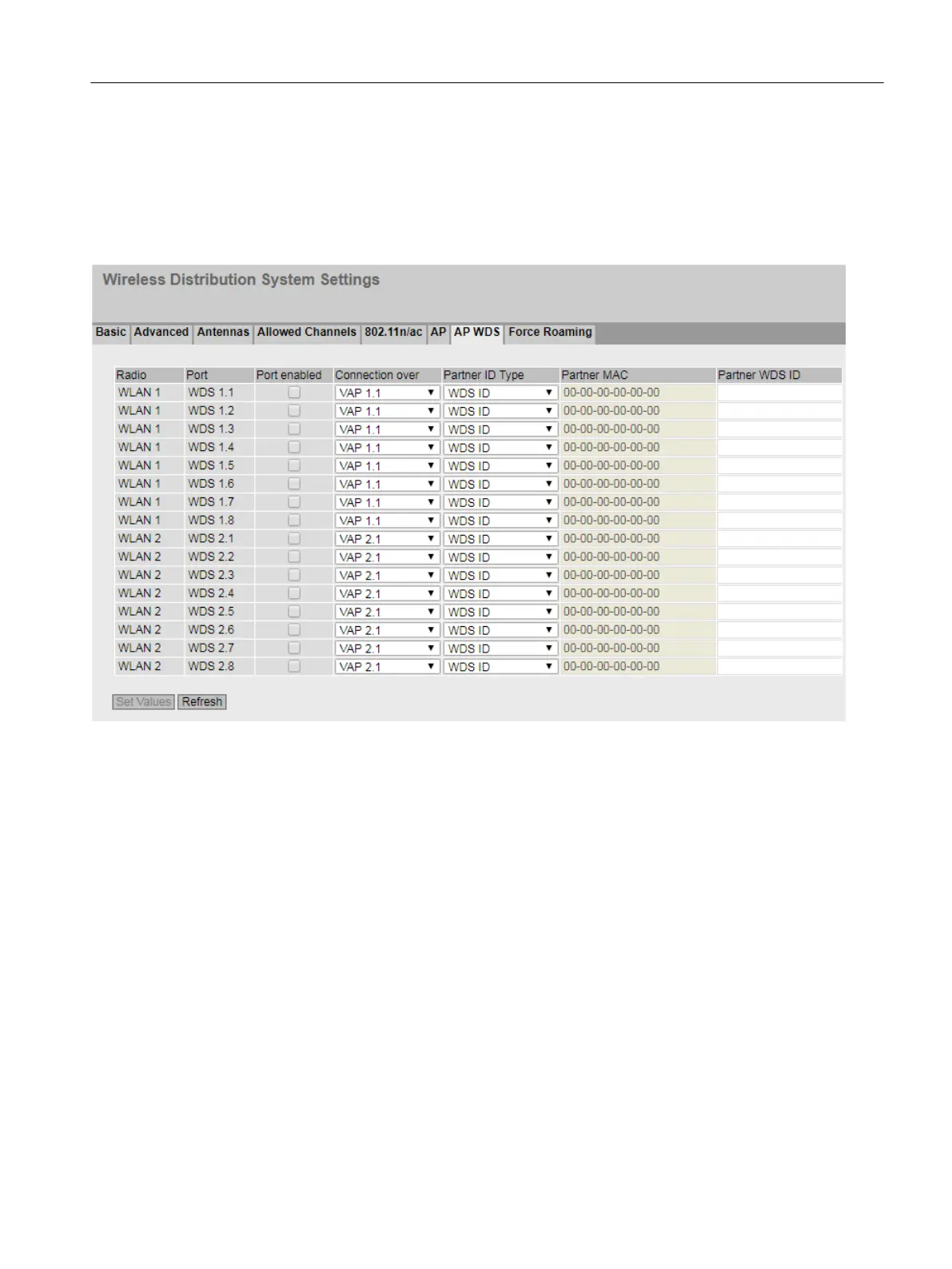

Description
The table has the following columns:
● Radio
Shows the available WLAN interfaces.
● Port
Shows the WDS interfaces.
● Port enabled
Enables the WDS interface.
● Connection over
Specify the VAP interface via which the WDS connection is established. Both the MAC
address of the VAP and the security settings, e.g. WPA2, are used.
Configuring with Web Based Management
6.6 "Interfaces" menu
SCALANCE W1780/W1740 according to IEEE 802.11ac Web Based Management
Configuration Manual, 11/2019, C79000-G8976-C485-03 255
