DIP switches (S501)
The DIP switches (S501) on the device are used to set the PROFIBUS address of the DP slave.




① Status: 1≙ on
② Status: 0 ≙ o󹪜
③ DIP switch without function
④ DIP switches for setting the address

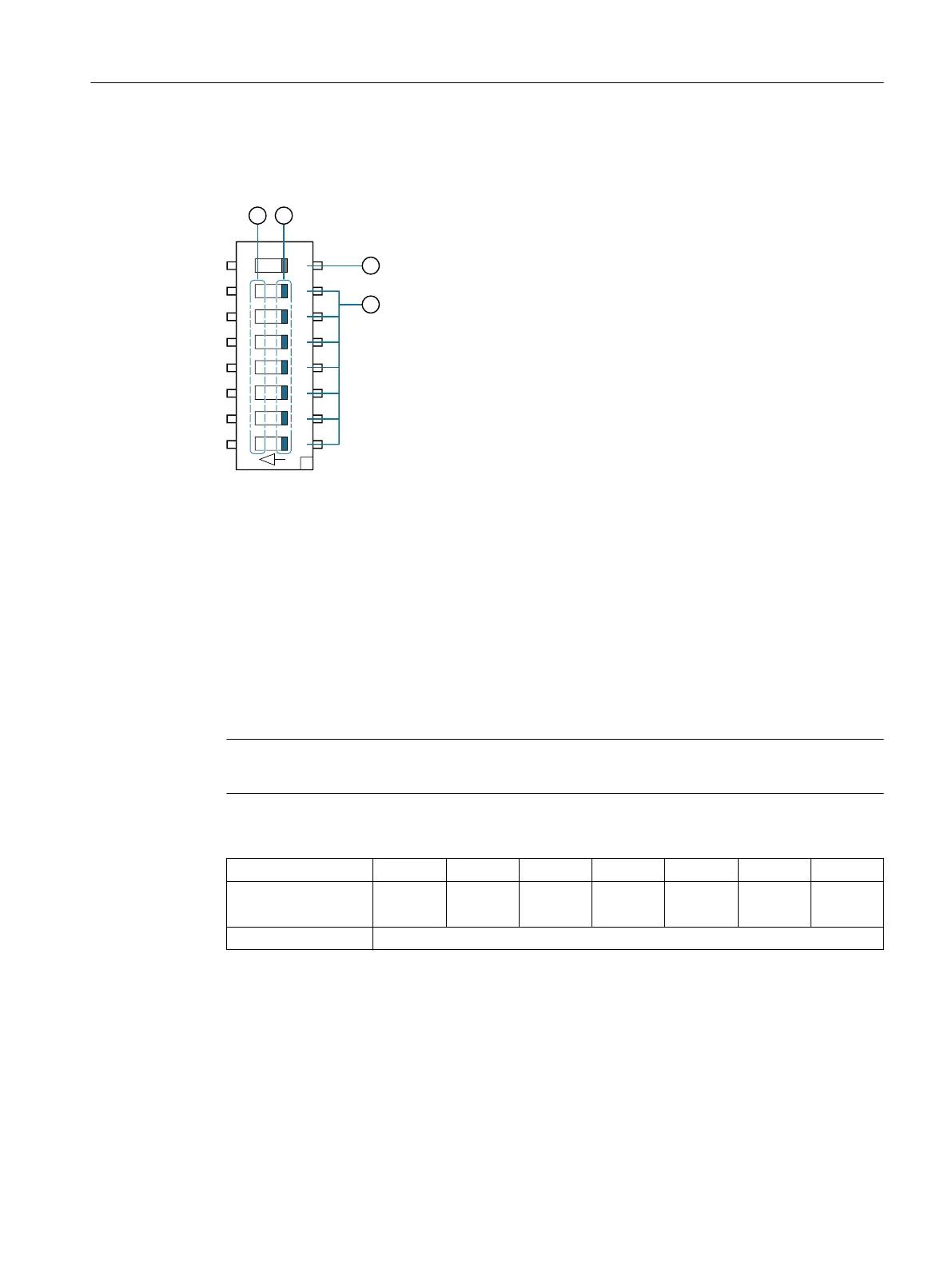

Figure 5-2 DIP switches (S501)
Setting the address
The individual DIP switches 1 to 7 (④) are used to specify the address. DIP switch 8 (③) is
reserved.
Addresses within the range from 0 to 127 can be set with combinations of the seven DIP switches
(①, ②). The addresses are coded according to BCD code (Binary Coded Decimal).
Note
A DP slave address change only becomes e󹪜ective after a power-on reset or system restart.
The following example shows the setting for the address "89":
DIP switches 1 2 3 4 5 6 7
Status
(0 ≙ o󹪜 / 1≙ on)
1 0 0 1 1 0 1
Address 89 (≙ 59
hex
)
