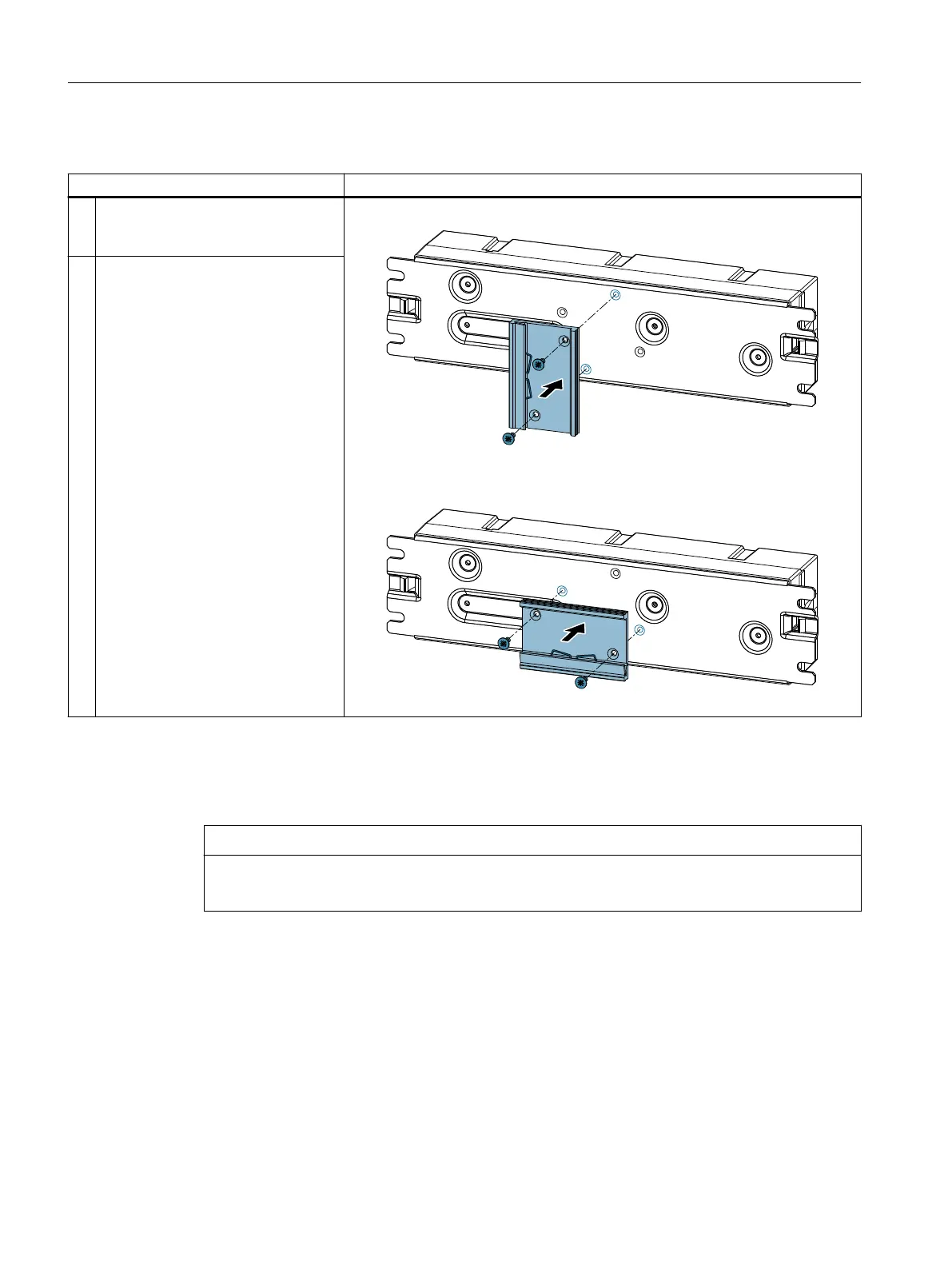

Proceed as follows to mount the standard rail mounting:
Steps Figure
1. Select either a vertical or horizontal
orientation for mounting the control‐
ler on the standard mounting rail.
Vertical
Horizontal
2. Screw the SIDOOR standard rail
mounting tightly to the controller
with 2 (M4 x 6) screws. Use the pre‐
drilled holes in the controller for this
purpose.
5.3 Wiring instructions
NOTICE
Material damage
Use only cables with a temperature range ≥ 85°C
Controllers
5.3 Wiring instructions
ATD4xxW for industrial applications
130 System Manual, 06/2022, A5E51901827B AA
