7.3.4 Test voltage
,1387287387
3(
6(&35,
9&&
3(
*1'
/
3(
/1
$
%
&

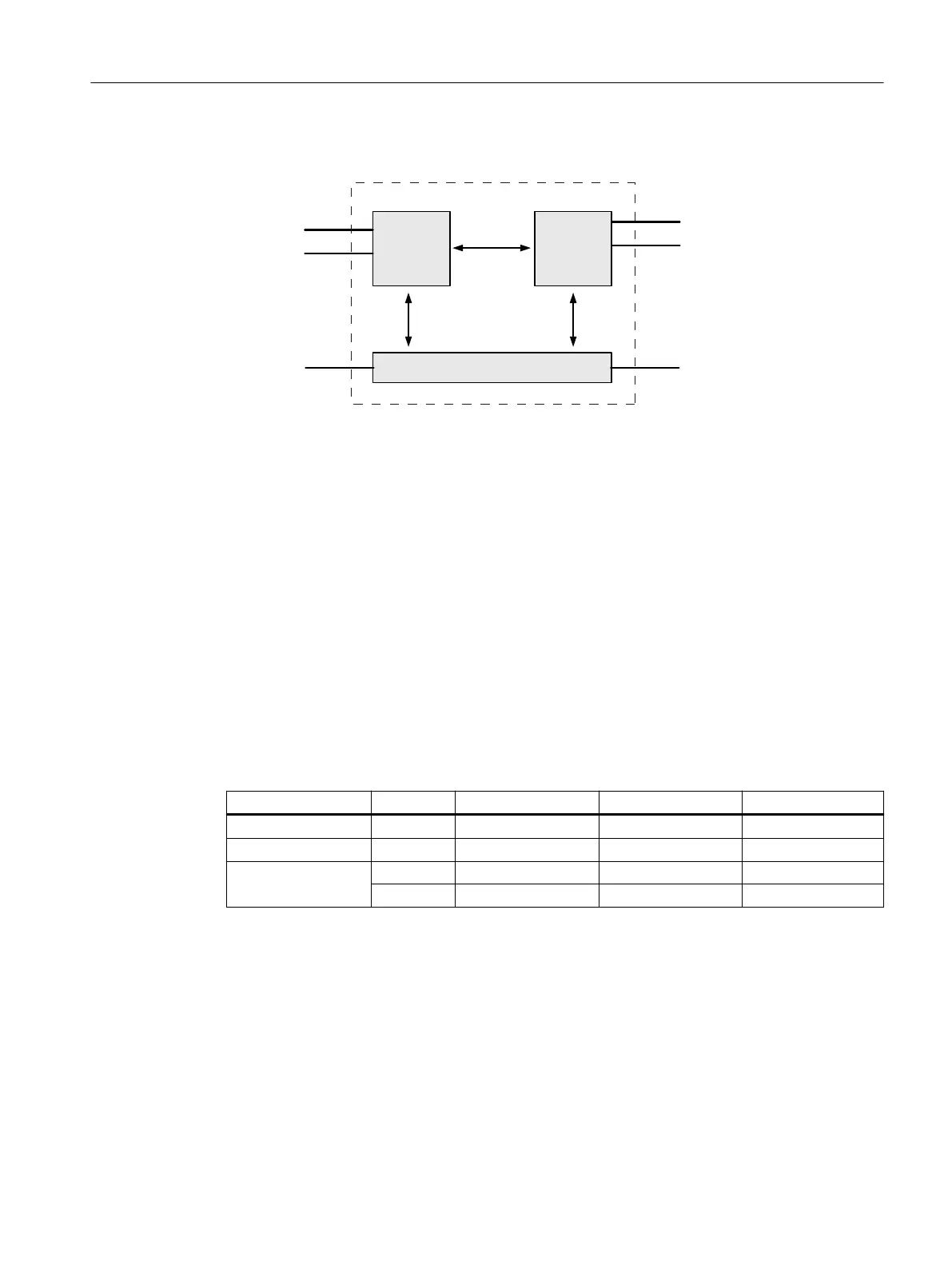

Figure 7-7 Diagram test voltage
The type test and the manufacturing test can only be performed by the manufacturer. The 󹪝eld
can also be performed by the user.
Requirements for performing the 󹪝eld test:
General
Disconnecting SIDOOR TRANSFORMER UL
disconnect the connection to the SIDOOR control circuit device.
Inspection (A) & (B)
• Interconnecting input lines (PRI) L1 and L2/N
• Interconnecting output cables (SEC) VCC, GND and PE
Inspection (C)
• Interconnecting output cables (SEC) VCC and GND and measuring against PE
Table 7-2 Test voltage
Test time PRI<->SEC (A) PRI<->PE (B) SEC<->PE (C)
Type test 60 s 4000 VAC 4000 VAC 1500 VAC
Manufacturing test 1 s 4000 VAC 4000 VAC 1500 VAC
Field test 1 s 1500 VAC 1500 VAC 350 VAC
1 s 2250 VDC 2250 VDC 500 VDC
Remark:
Tripping current for measuring DC: 0 mA
tripping current for measuring AC: <100 mA
Power supply
7.3 SIDOOR TRANSFORMER UL
ATD4xxW for industrial applications
System Manual, 06/2022, A5E51901827B AA 255
