Siemens SIDOOR ATD4 W Series - Operation

CAUTION
Material damage
For this reason, only connect suitable SIDOOR accessories.
8.1.3 Operation
Parameters can be changed in both of the following menus:
• MAIN MENU > Quick setup > Parameter setting
• MAIN MENU > General setup > Pro󹪝le parameters
Note
If the SIDOOR SERVICE TOOL is in the "Quick setup" or "General setup" menu, the door
commands of the controller are blocked by the command inputs of the terminal strip X6.

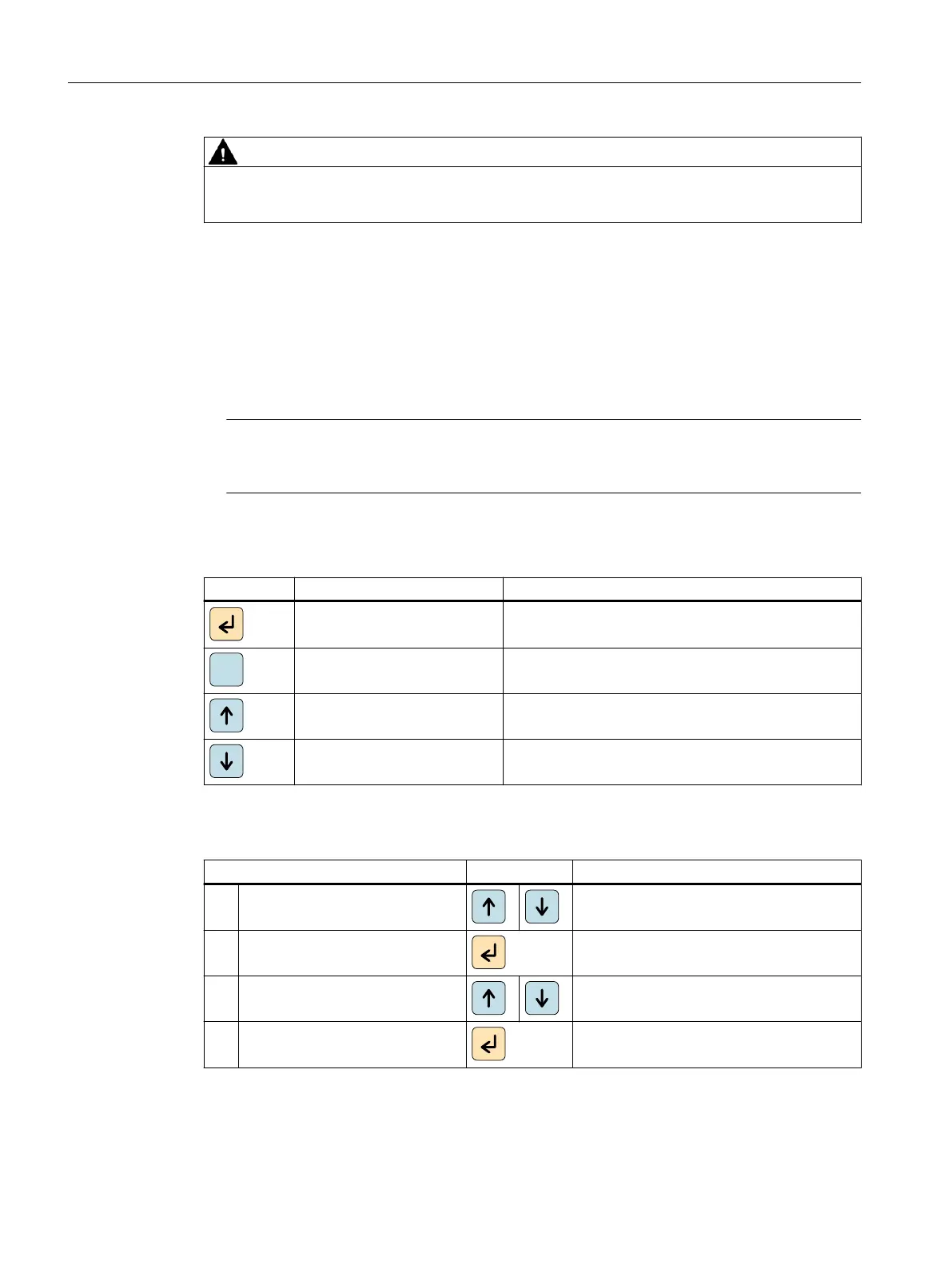

Key functions
Key Description Function
Enter key Jump to next menu below
ESC
Escape key Jump back to menu above
Menu selection key Increases a parameter value
Menu selection key Decreases a parameter value
Operating principle
Action Key Remarks
1 Select required parameter
2 Activate parameter for setting us‐
ing the Return key
Parameter value 󹪞ashes
3 Increase or decrease parameter
value
4 Accept parameter value by press‐
ing Return key again
Displayed parameter value stops 󹪞ashing af‐
ter acceptance.
Optional additional units
8.1 SIDOOR SERVICE TOOL
ATD4xxW for industrial applications
272 System Manual, 06/2022, A5E51901827B AA
