5.9.4 Adjustable parameters

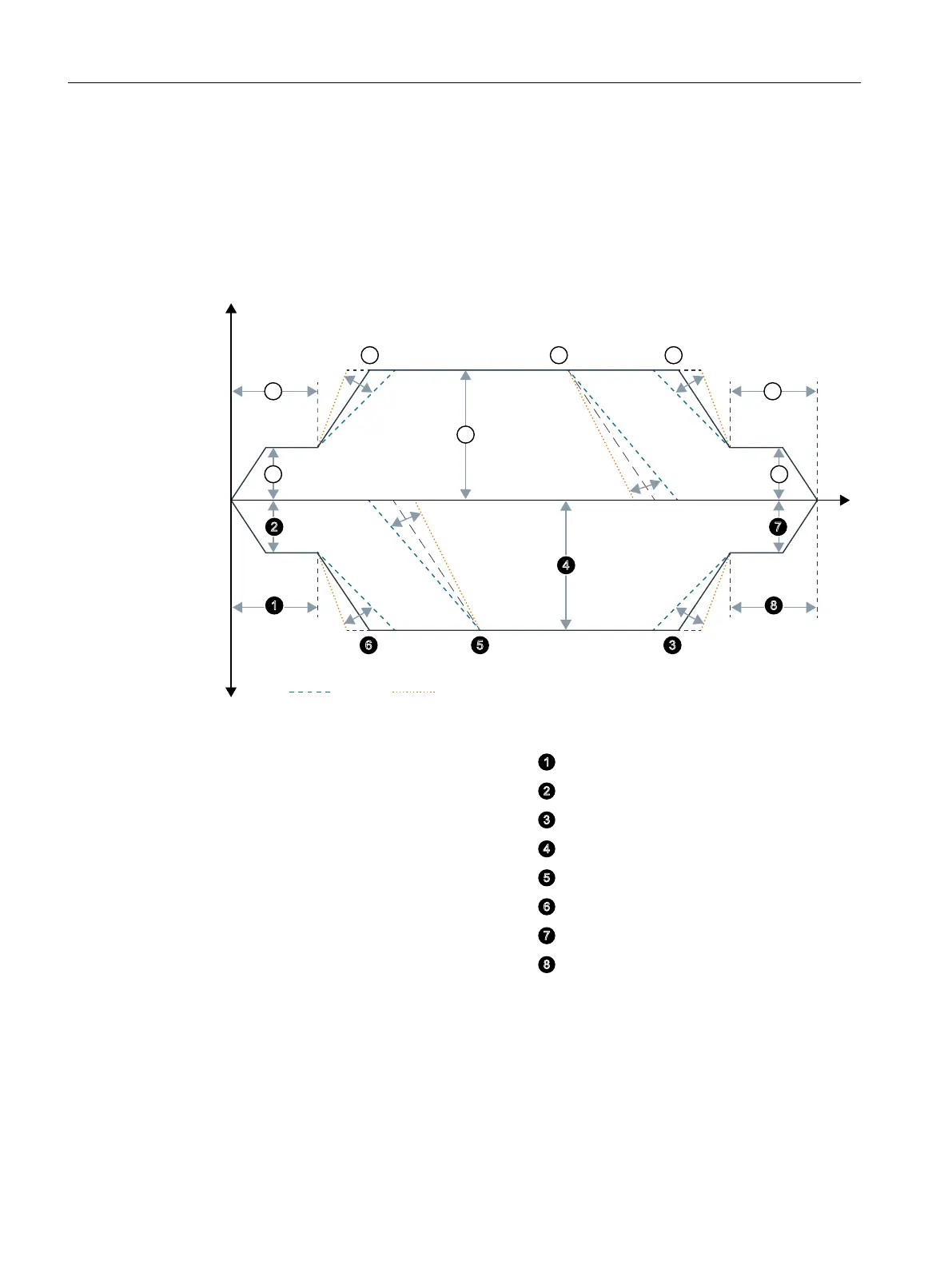

5.9.4.1 Driving curve
The optimum drive characteristics of the door are calculated and maintained continuously.
The driving curve transitions are rounded o󹪜 so that the door movement is smooth and jerk-free.













Y
Y
V

PLQ

PD[
v* Speed open v*
*
Speed close
① Slow start distance open

Slow end distance close
② Slow start speed open

Slow end speed close
③ Acceleration ramp open

Acceleration ramp close
④ Maximum speed open

Maximum speed close
⑤ Reversal ramp open/close

Reversal ramp close/open
⑥ Deceleration ramp open

Deceleration ramp close
⑦ Slow end speed open

Slow start speed close
⑧ Slow end distance open

Slow start distance close
Reversal ramp close/open = Reversal of travel in direction "CLOSE" in direction "OPEN".
Reversal ramp open/close = Reversal of travel in direction "OPEN" in direction "CLOSE".
When reversing, the door is braked with the reversal ramp and starts the travel in the opposite
direction with the acceleration ramp.
