6.4.19 Dimension drawing SIDOOR MDG5
Front view

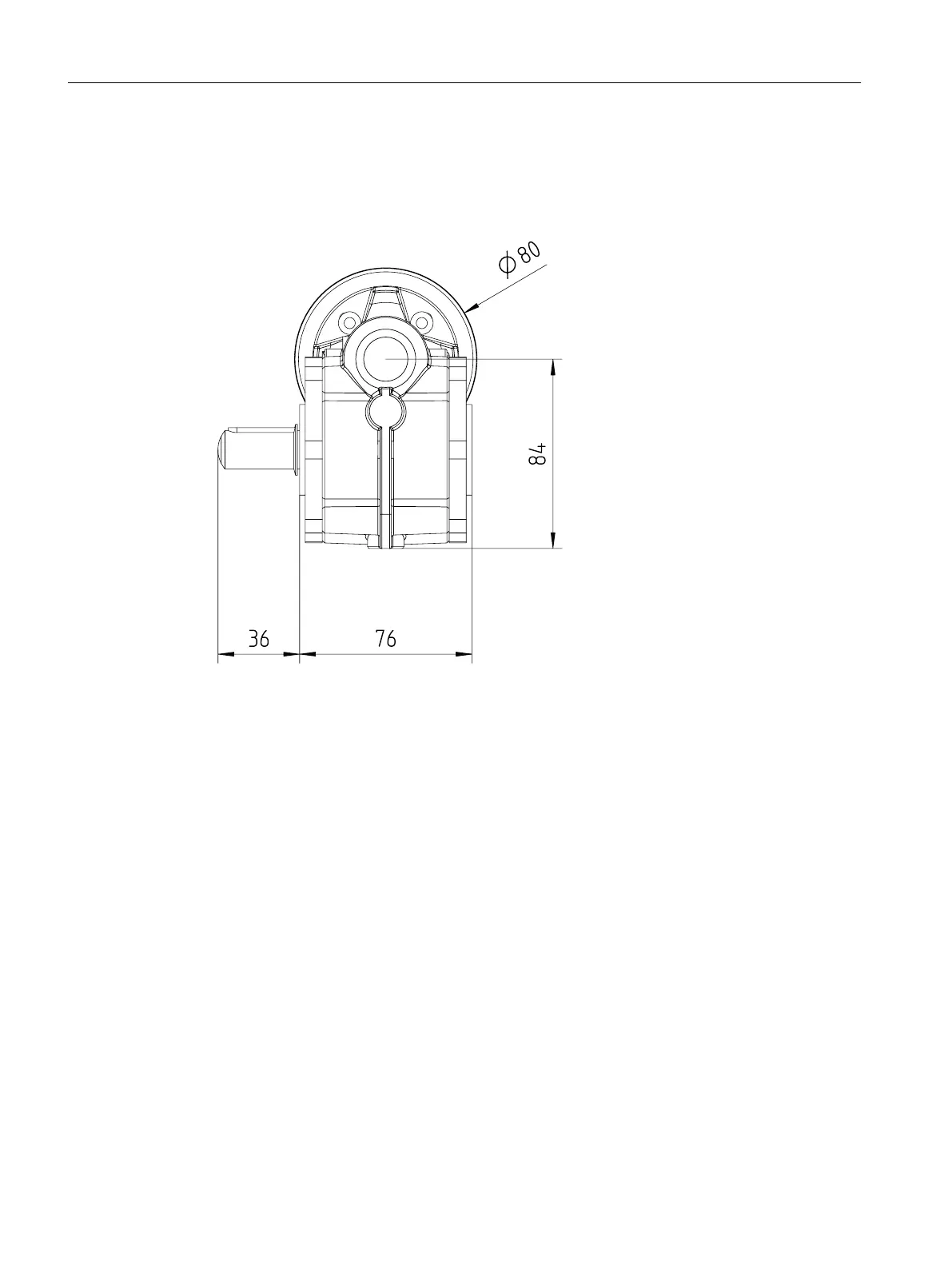

Figure 6-11 SIDOOR MDG5 Front view
Geared motors
6.4 Technical speci󹪝cations
ATD4xxW for industrial applications
