7.3 SIDOOR TRANSFORMER UL
7.3.1 Description

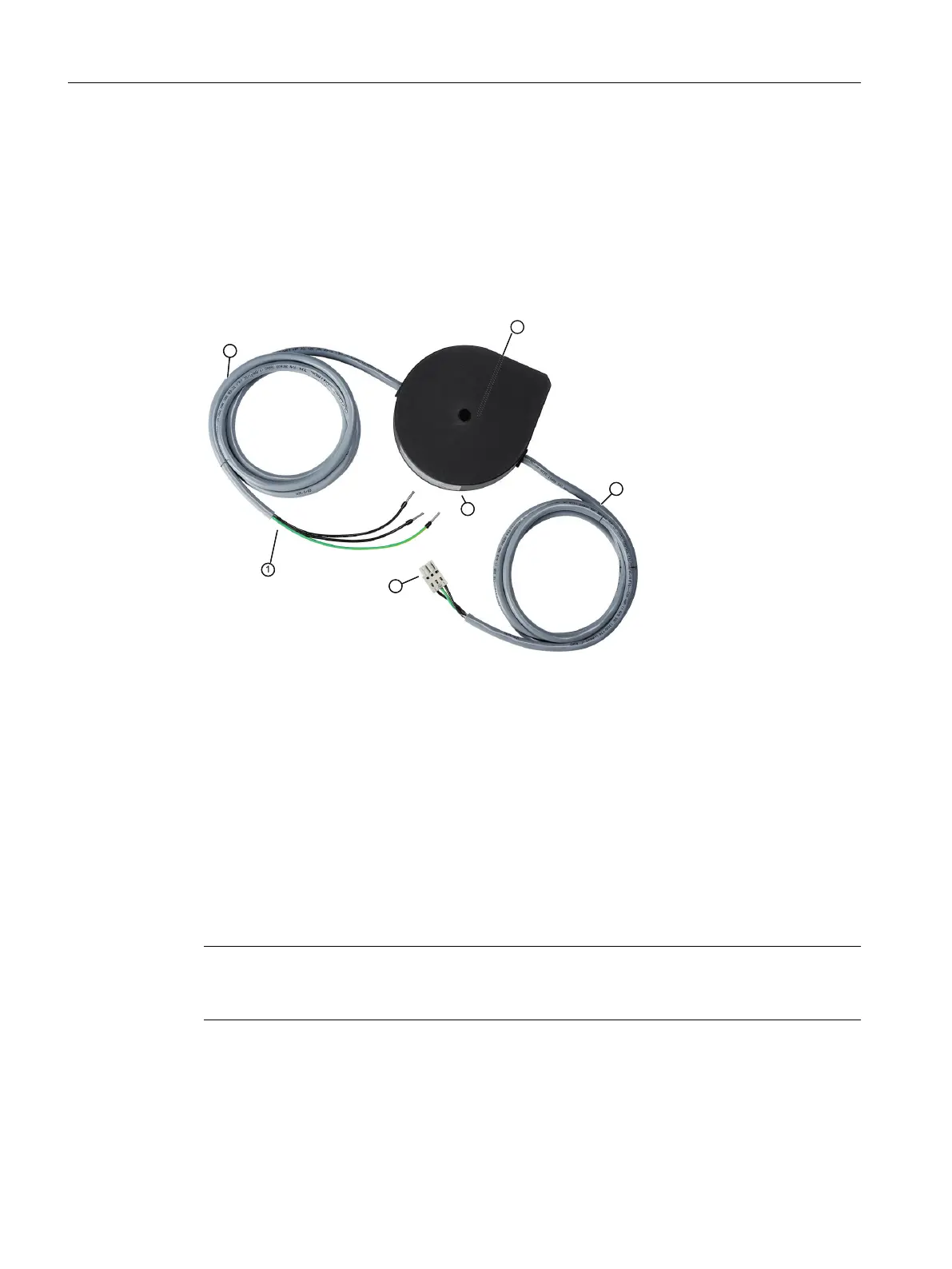

Design
① No mains connection 220-240 V AC +/-10% 50/60 Hz
② Length approx. 2 m
③ Connector for connection to the control unit
④ Length approx. 1.5 m
⑤ Height of the mains transformer approx. 65 mm; width approx. 145 mm, depth approx. 126 mm
⑥ Diam. 6.1 mm, Size 10, L>70 mm
Figure 7-6 SIDOOR TRANSFORMER UL
Function
The SIDOOR TRANSFORMER UL is a 220-240 V AC (± 10%) 50/60 Hz standard power supply unit
for supplying SIDOOR control units without an integrated power supply.
Note
When using the SIDOOR TRANSFORMER UL performance losses in force, acceleration and speed
may occur depending on the output transmission, weight to be moved and system friction.
Output line
The output line is connected to slot X3 of the SIDOOR control unit.
Power supply
7.3 SIDOOR TRANSFORMER UL
ATD4xxW for industrial applications
