5.5.3 PROFINET
5.5.3.1 PROFINET module

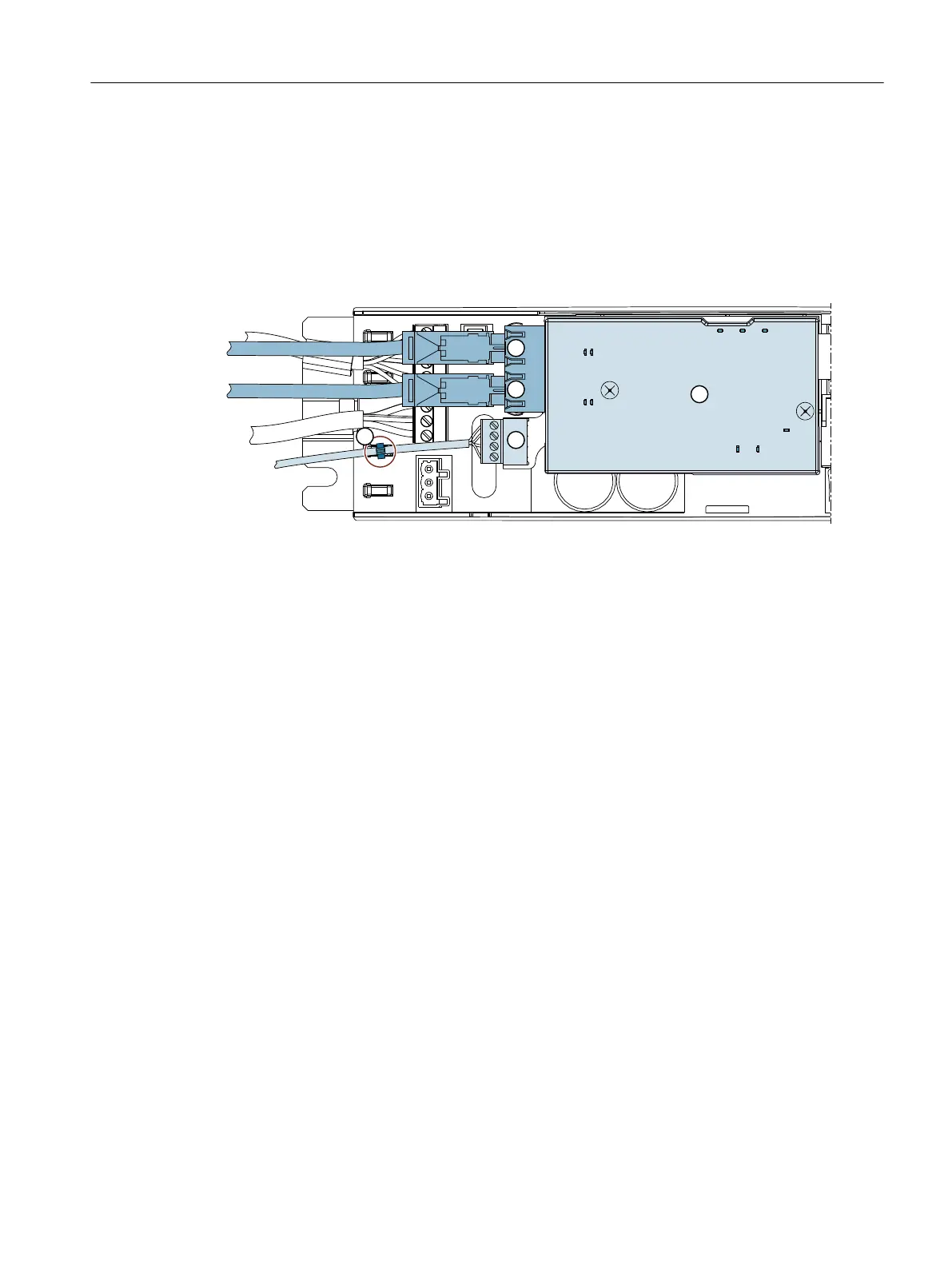

Overview
H1021 H1022
H1011 H1012
H1 H2
H3
H1301
H1302
H1300





① Cable ties
② X1000 - Port 2
③ X1000 - Port 1
④ X100
⑤ Protective cover
The ASIC of the type "ERTEC200P" is used for the PROFINET connection. Ethernet is used as the
transmission technology. The SIDOOR ATD430W controller supports conformance class C (CC-
C).
All further IO device functionality of the SIDOOR ATD430W controller is described in the GSD 󹪝le.
You can 󹪝nd explanations of the basic functions and communication properties of the SIDOOR
ATD430W IO device in section PROFINET communication (Page 157).
Task
The PROFINET module enables the SIDOOR ATD430W door controller to be connected to a
PROFINET 󹪝eldbus.
