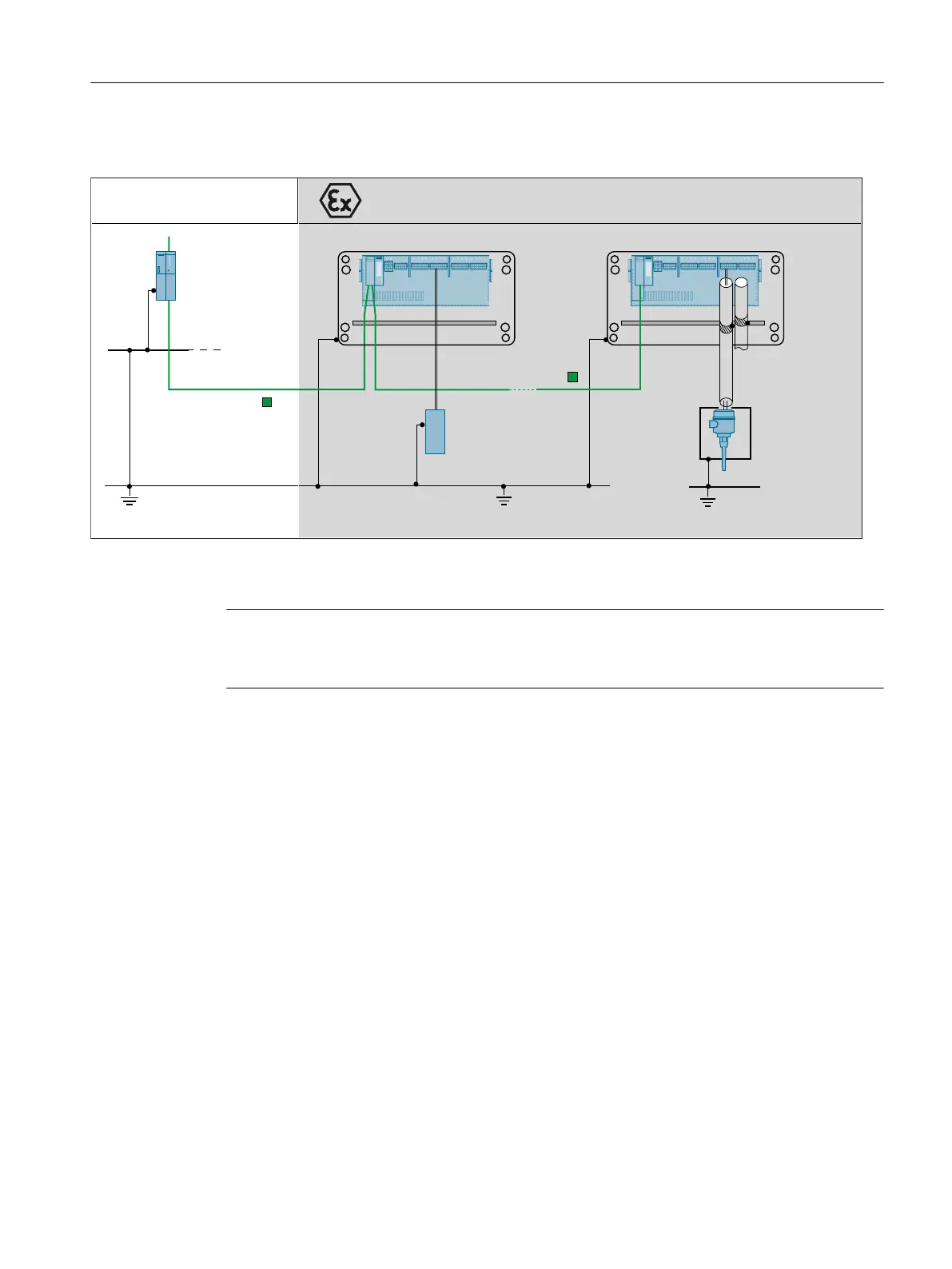

Direct grounding
352),1(7,2
&38+
,2FRQWUROOHU
'LJLWDOFKDQQHOV
RQHVHQVRURU
DFWXDWRUHDFK
,QGXVWULDO(WKHUQHW
*URXQGLQJEDU
(TXLSRWHQWLDOERQGLQJ
6KLHOGLQJ
VSULQJ
WHUPLQDOV
3HUPLVVLEOHUDQJH
)LHOGGHYLFH
(TXLSRWHQWLDOERQGLQJ
RIWKHILHOGGHYLFHV
If equipotential bonding (e.g. equipotential bonding line) is routed between explosion-prone
areas and safe areas, direct grounding can be implemented.
Note
CFU PA: Direct grounding
The protective braided shield of the fieldbus cables must be grounded.
Additional information
● Section "Grounding SIMATIC CFU with aluminum housing (Page 143)"
● Section "CFU PA in aluminum housing: Connecting the cable shields of the PROFIBUS PA
cables (Page 142)"
Compact Field Unit in the housing for use in a hazardous area
11.2 Grounding for configuration with SIMATIC CFU with aluminum housing
