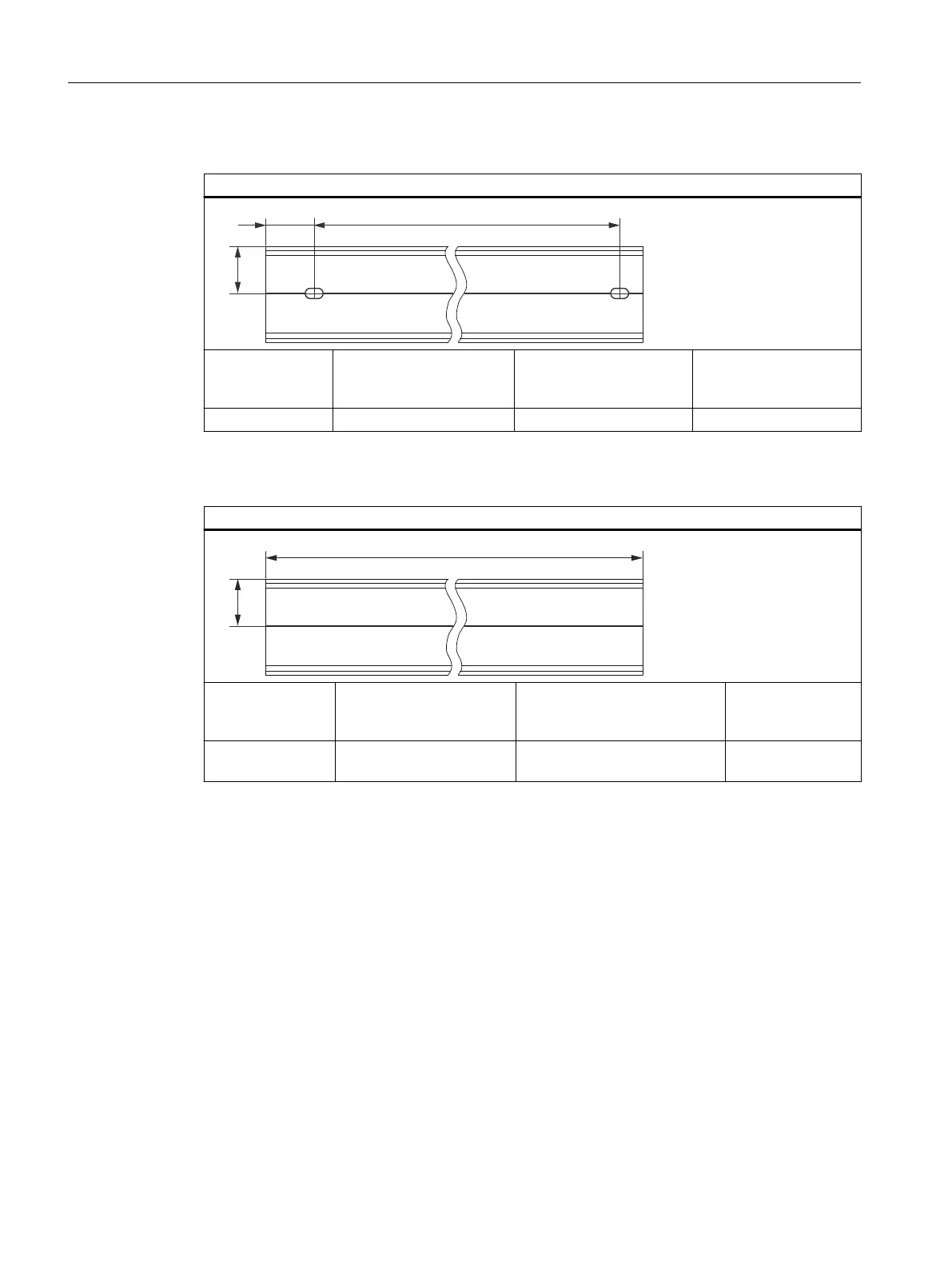

Mounting rails
Mounting rail 483 mm
Length of the
mounting rail
Distance a
(at the beginning and end
of the mounting rail)
Distance b
(to the next drill hole)
Width (to drill hole:
distance c)
483 mm 8.8 mm 465 mm 35 mm (17.5 mm)
The following table shows the spacing of the required drill holes for the 2000 mm mounting rail.
Mounting rail 2000 mm
Length of the
mounting rail
(a)
Width (to drill hole:
distance b)
Distance
(at the beginning and end of the
mounting rail)
Distance
(to the next drill
hole)
2000 mm 35 mm (17.5 mm) 15 mm Approx. every 500
mm
Appendix
A.5 Dimensional diagrams
SIMATIC CFU
188 Commissioning Manual, 08/2019, A5E39252870-AD
