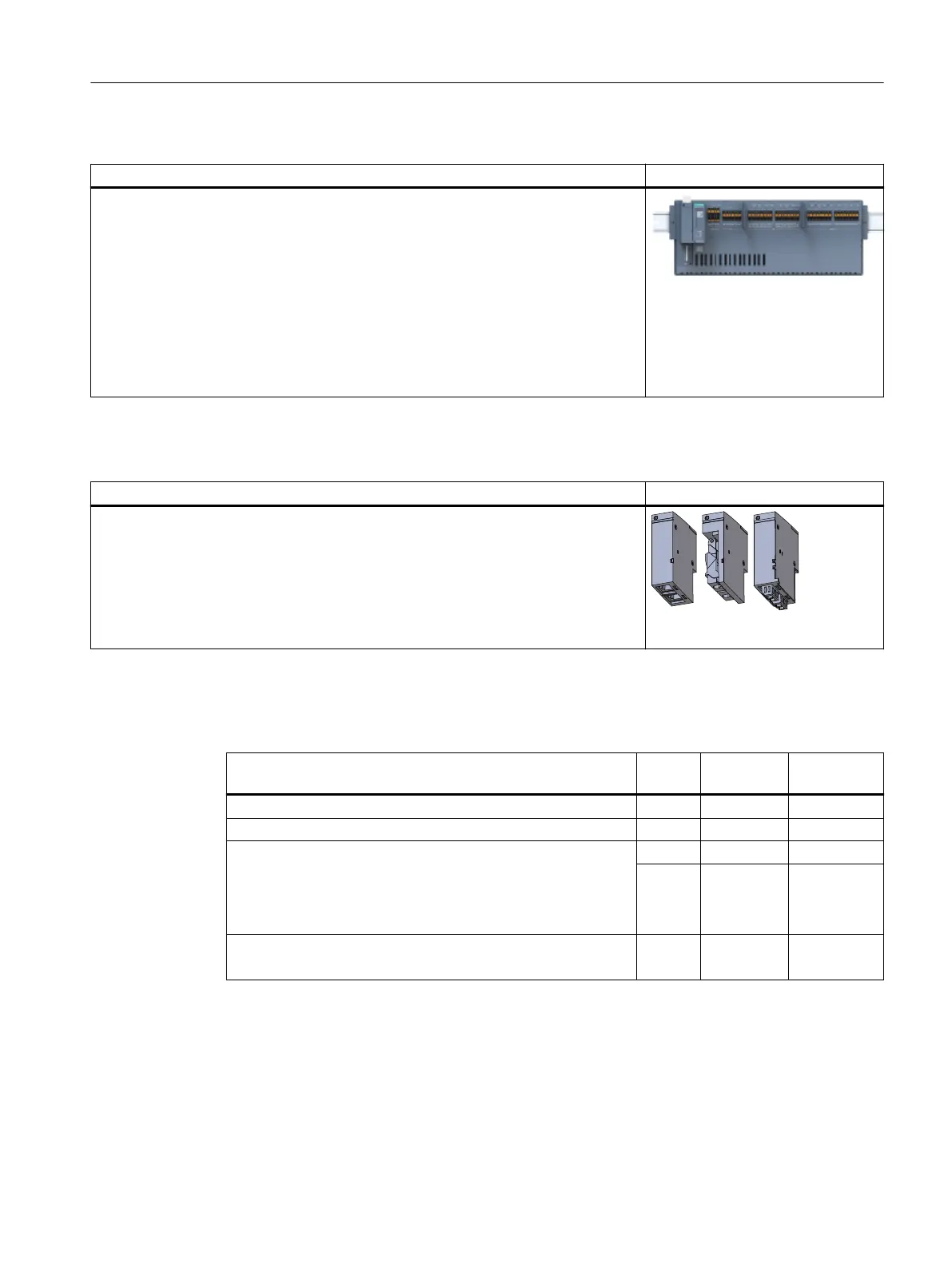

Table 3-3 SIMATIC CFU DIQ (Article number: 6ES7655-5PX31-1XX0)
Function Figure
The CFU DIQ:
● Integrate the CFU DIQ as an IO device at the PROFINET IO in the automation
system.
● The CFU DIQ has the following interfaces:
– 16 freely configurable channels (DIQ).
● LED displays at the interface dome indicate the device status.
Supplementary information:
● Section "CFU DIQ: Overview of the interfaces (Page 25)"
● Section "Diagnostics via LED displays (Page 107)"
Table 3-4 BusAdapter
Function Figure
You will need approved BusAdapters to connect a CFU to PROFINET IO. The BusA‐
dapters give you flexibility in selection of the connection technology for PROFINET IO.
The figure shows some typical device implementations of the BusAdapter.
There are BusAdapters for pre-fabricated specific bus cables and BusAdapters for
special media (fiber-optic cable, electrically conductive cables).
Approved BusAdapter versions for connecting a CFU to PROFINET IO are listed in
section "Article numbers (accessories / spare parts) (Page 181)".
Terminal set required
You need the approved terminal set to operate the CFU.
Type and use Quanti‐
ty
Area Terminal
Two-fold double terminals for connection of power supply (PS) 2 24 V DC X80 and X81
Six-fold terminals for reference potential (ground) 1 GND X82
For CFU PA:
Eight-fold terminals
● for connecting sensors and/or actuators
● for connecting field devices
2 DIQ X10 and X11
2 FIELDBUS X1 and X2
For CFU DIQ:
Eight-fold terminals for connecting sensors and/or actuators
4 DIQ X10 to X13
Additional information
Article numbers of these and other components are available in section "Article numbers
(accessories / spare parts) (Page 181)".
Product overview
3.2 Overview of the components
SIMATIC CFU
Commissioning Manual, 08/2019, A5E39252870-AD 19
