Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC647E
Operating Instructions, 11/2018, A5E45589180-AA
107
Procedure - Removal

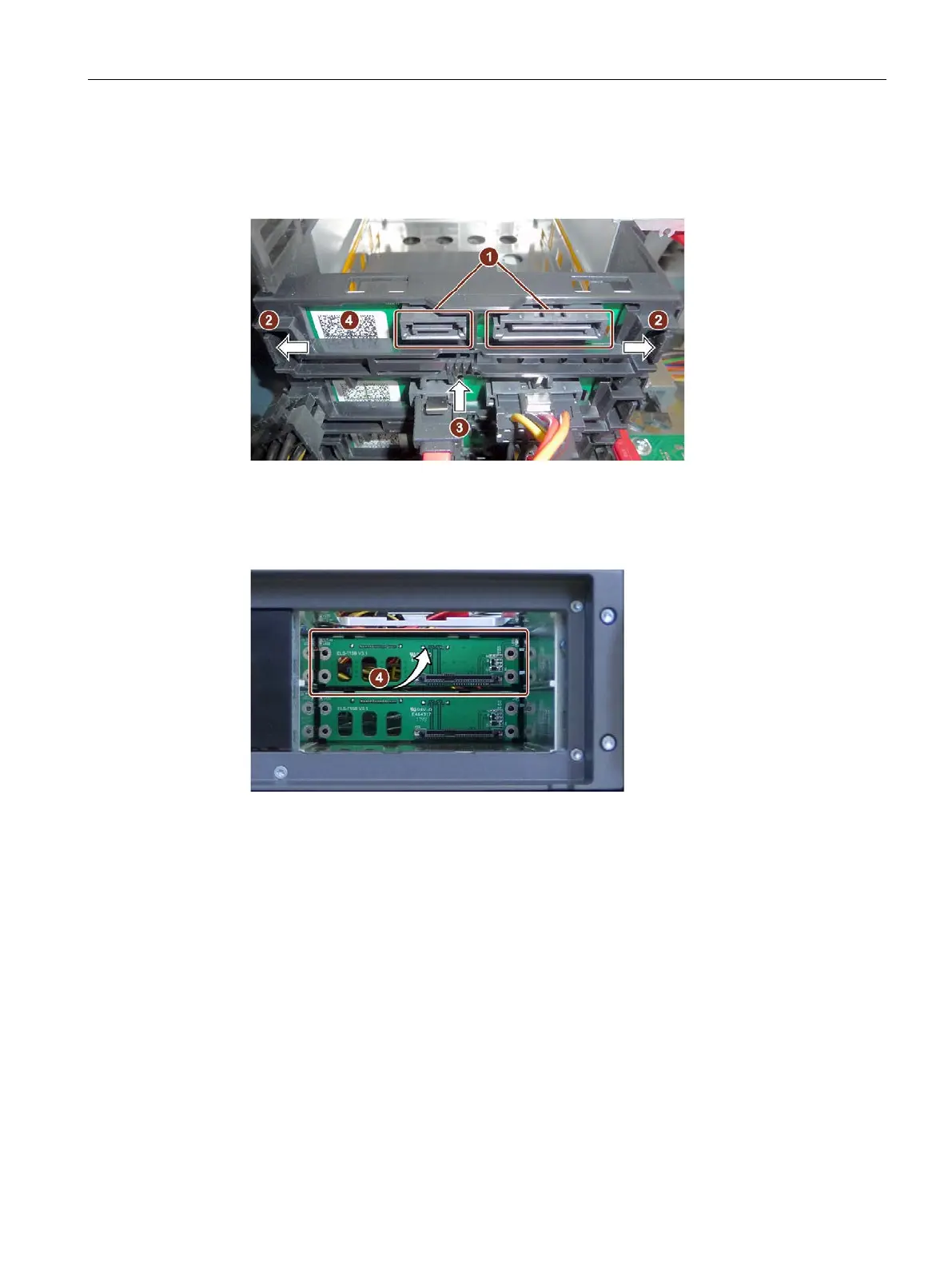

1. Note the assignment of all data cables to the motherboard and disconnect all data cables
①.
2. Unlock the backplane by pressing firmly in the direction of the arrow on the latching lugs
② and press the ejector ③.
3. Detach the unlocked backplanes
④ upwards from the holders and remove them from the
drive cage.
