Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC647E
108 Operating Instructions, 11/2018, A5E45589180-AA
Procedure - Installation

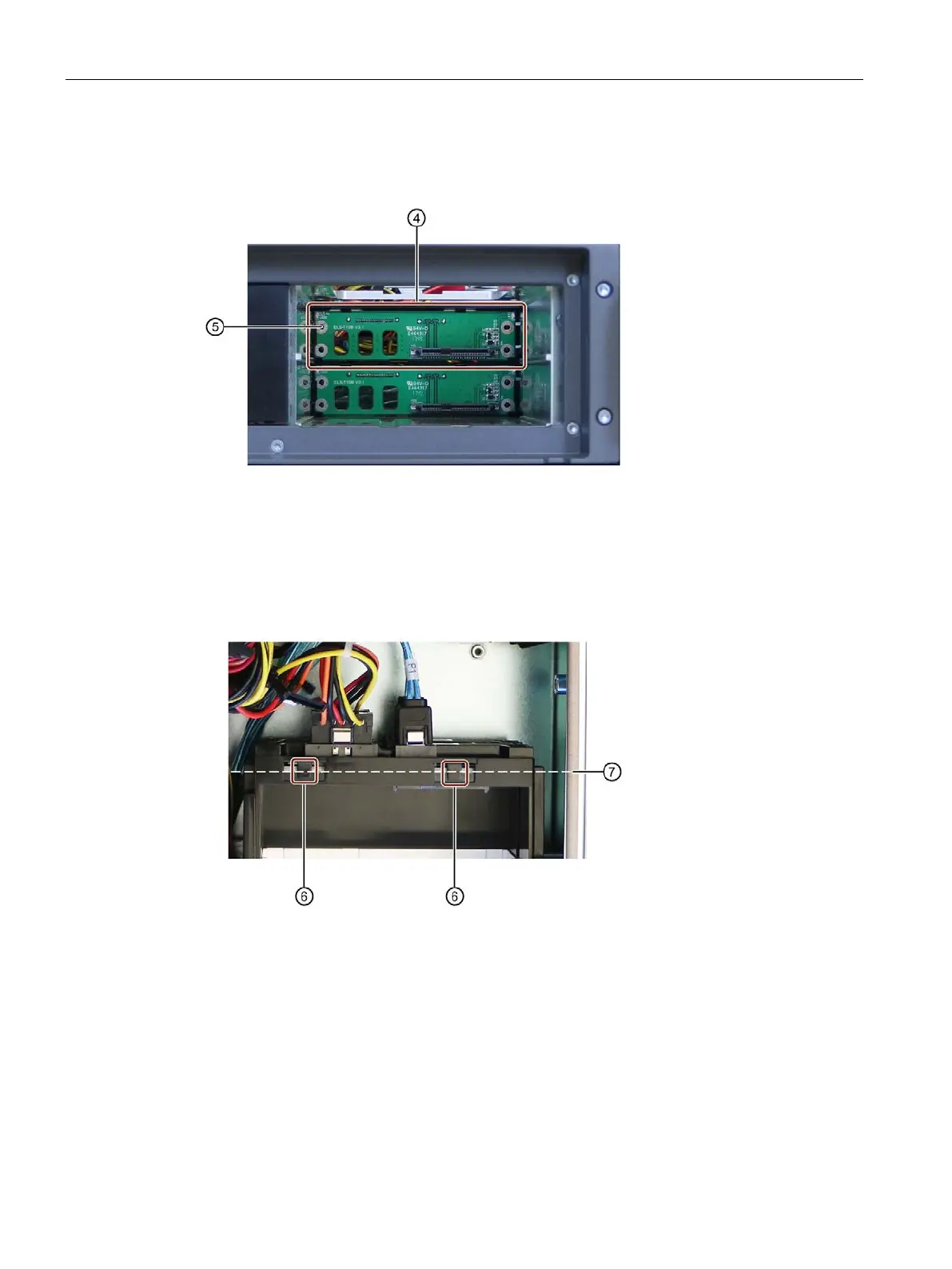

Insert the backplane ④ from the front into the drive cage and snap it into the back.
When doing so, check the following:
● The backplane lies flat in the drive cage.
● All centering openings in the
⑤ backplane are in the centering pins.
● The backplane is snapped in on top behind the detent lug
⑥.
● All backplanes lie precisely under one another in vertical alignment when viewed from
above.
