Expanding and assigning parameters to the device

6.2 Expansion cards

SIMATIC IPC647E

92 Operating Instructions, 11/2018, A5E45589180-AA

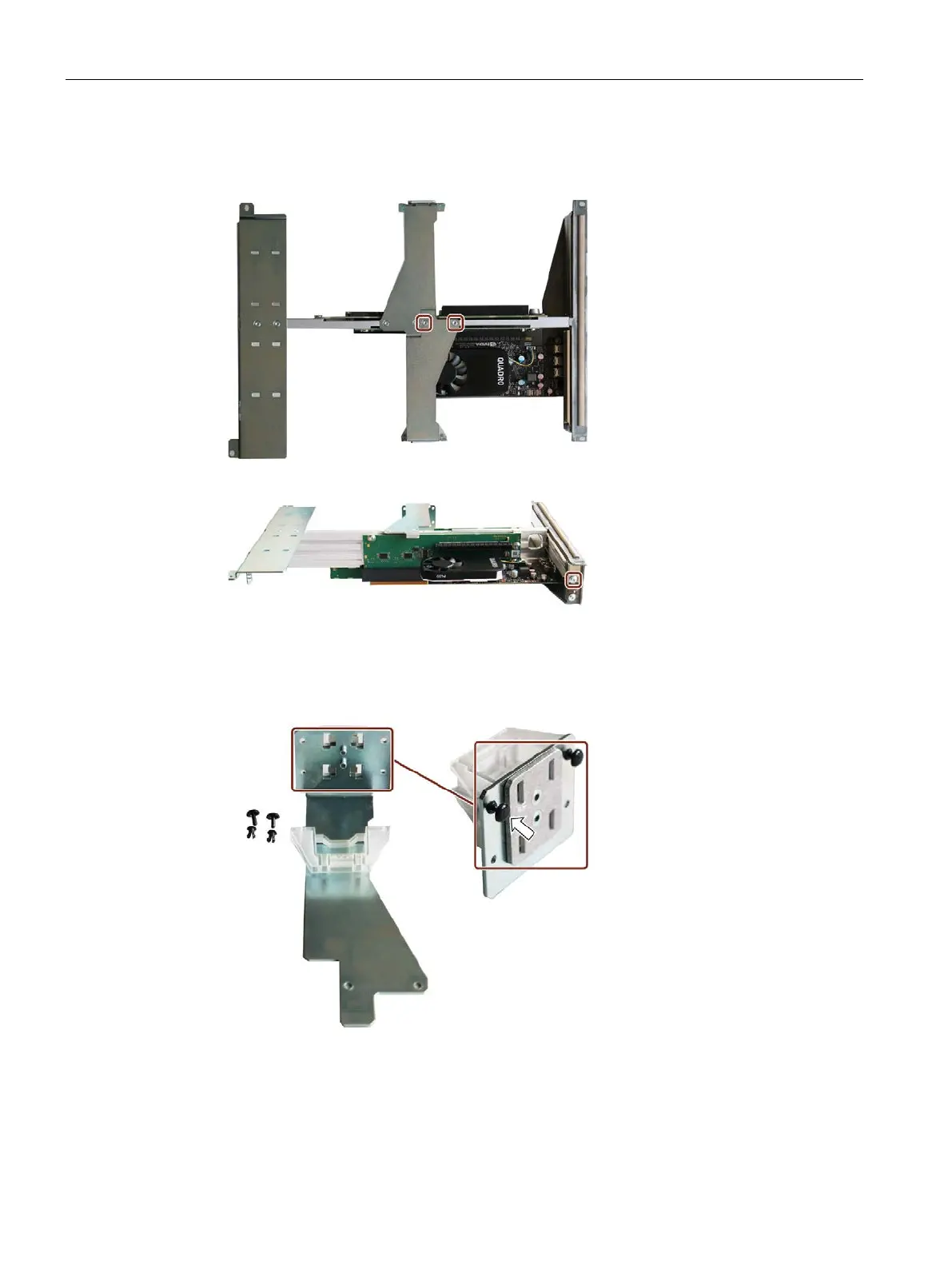

Procedure - Installation

1. Remove the marked screws.

2. Remove the marked screw.

3. Remove the slot blanking panel.

4. Mount the parts of the retainer according to the desired mounting position of the

expansion card.

Press the plastic rivets completely into the rivet body.

5. Insert the expansion card without tilting in the slot and fix it with a screw (see 2).
