9.3 How do I create or edit a recipe?
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ÉÉÉÉÉÉÉÉ
ES
requirements
fulfilled?
Start recipe creation
(recipe editor)
Yes
Fulfil requirements:
see Page 9-3
Create new recipe or
open an existing recipe
Edit the recipe
topology (SFC):
No
• Insert step (AF)
2. Detailed planning of AF:
..
3. Detailed planning of transition:
..
1. Detailed planning of the recipe header:
..
Save recipe or
save as
Recipe creation or/and BOM
• Insert loop
Specify recipe properties :
Release recipe for testing
or
release for production
Start BOM
Insert recipe
Open recipe with
start recipe editor
Further procedure:
see Page 9-12
Yes
• Insert parallel or
alternative branch
• Insert transition

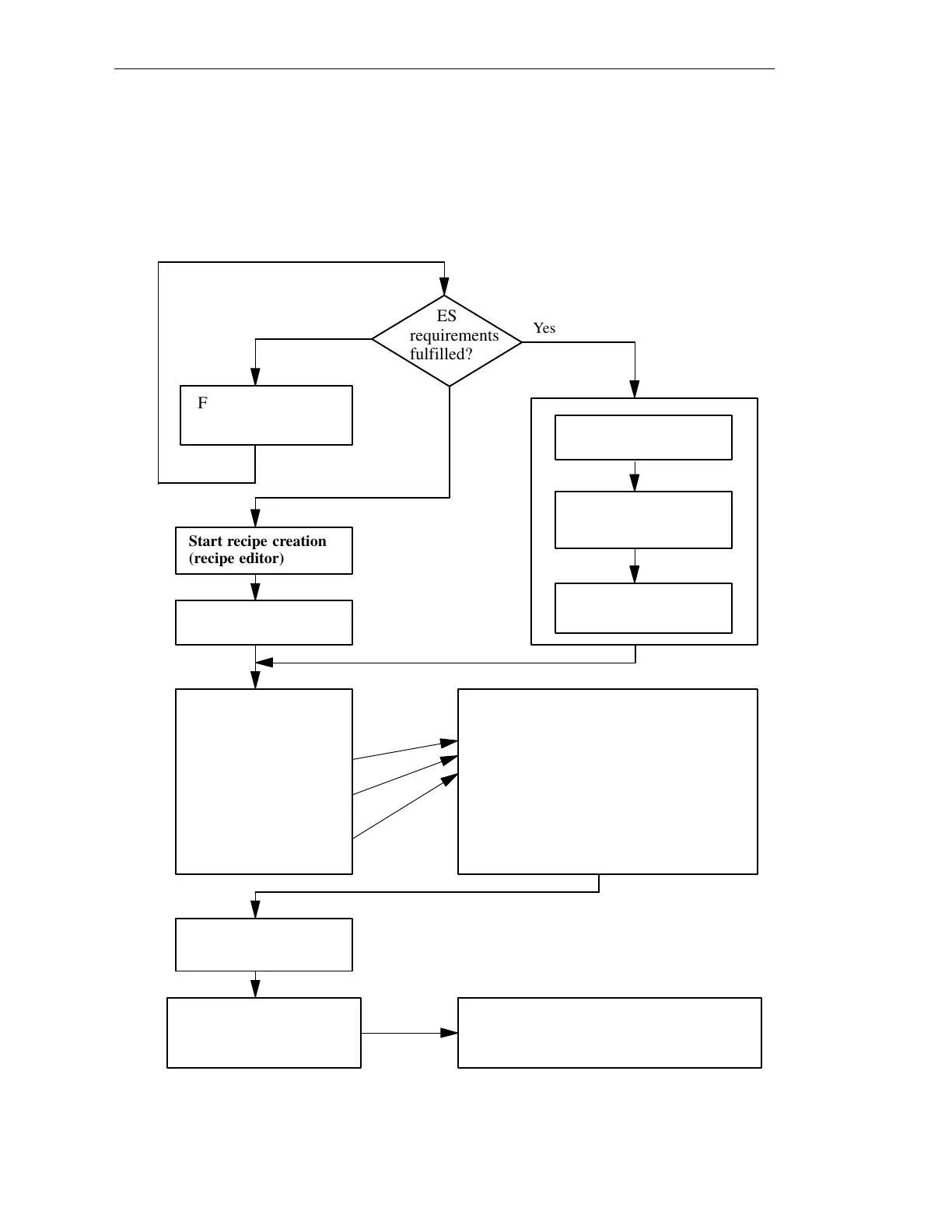

Figure 9-3 How do I create a recipe?
Project planning with BATCH flexible
